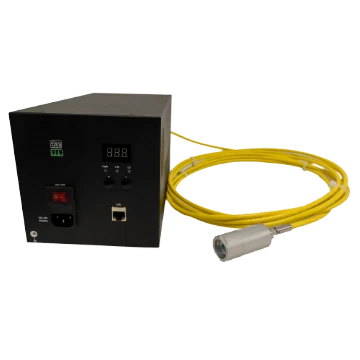

Split-type laser light, 808nm, 50w, Line-shaped beam spot (LS-SPC-0095)
Model LS-SPC-0095
- Voltage100~240 VAC, 50/60 Hz
- Wavelength808±5 nm
- Best working distance240 ~320 mm
- Field of view width210 ~ 270 mm
$7,999.00
Quoted price: add to quote for lead time and volume pricing.
Ships in 2-3 weeks
8.5 kg shipping weight
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Split-type laser light, 808nm, 50w, Line-shaped beam spot. 808 nm wavelength, line-shaped beam Separate laser head and control box for compact installation spaces
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPC-0095 |
|---|---|
| Spot shape | Line-shaped light spot |
| Cooling mode | TEC + fan cooling + heat sink |
| Laser safety class | Class 4 |
| Nominal ocular hazard distance (NOHD) | 14.1 m |
| Compatibility | GigE Vision V2.0, GenICam |
Optics
| Best working distance | 240 ~320 mm |
|---|---|
| Field of view width | 210 ~ 270 mm |
| Field of view | 75° |
Interfaces and I/O
| Data interface | Fast Ethernet port |
|---|---|
| Digital I/O | 1 inputs, Single-ended/differential supported |
| Power connector | C13 socket |
| Cable diameter | 6 mm |
Light
| Wavelength | 808±5 nm |
|---|---|
| Beam divergence angle | 75° |
Environment and compliance
| Ingress protection | IP20 (with lens and cables properly installed) |
|---|---|
| Temperature | Operating temperature: 0 to 30 °C, Storage temp.: -30 to 80 °C |
| Humidity | 20% RH to 80% RH (no condensation) |
| Certification | CE, RoHS |
Computing
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
|---|
Electrical
| Drive mode | Constant-current drive |
|---|---|
| Laser power | 0~ 50 W |
| Laser power adjustment | External buttons, Software adjustment |
| Power stability | >95% |
| Input voltage | 100~240 VAC, 50/60 Hz |
| Input current | 4 A(100 VAC), 2 A(240 VAC) |
| Total power | 260 W |
| Maximum power | 50 W |
Mechanical

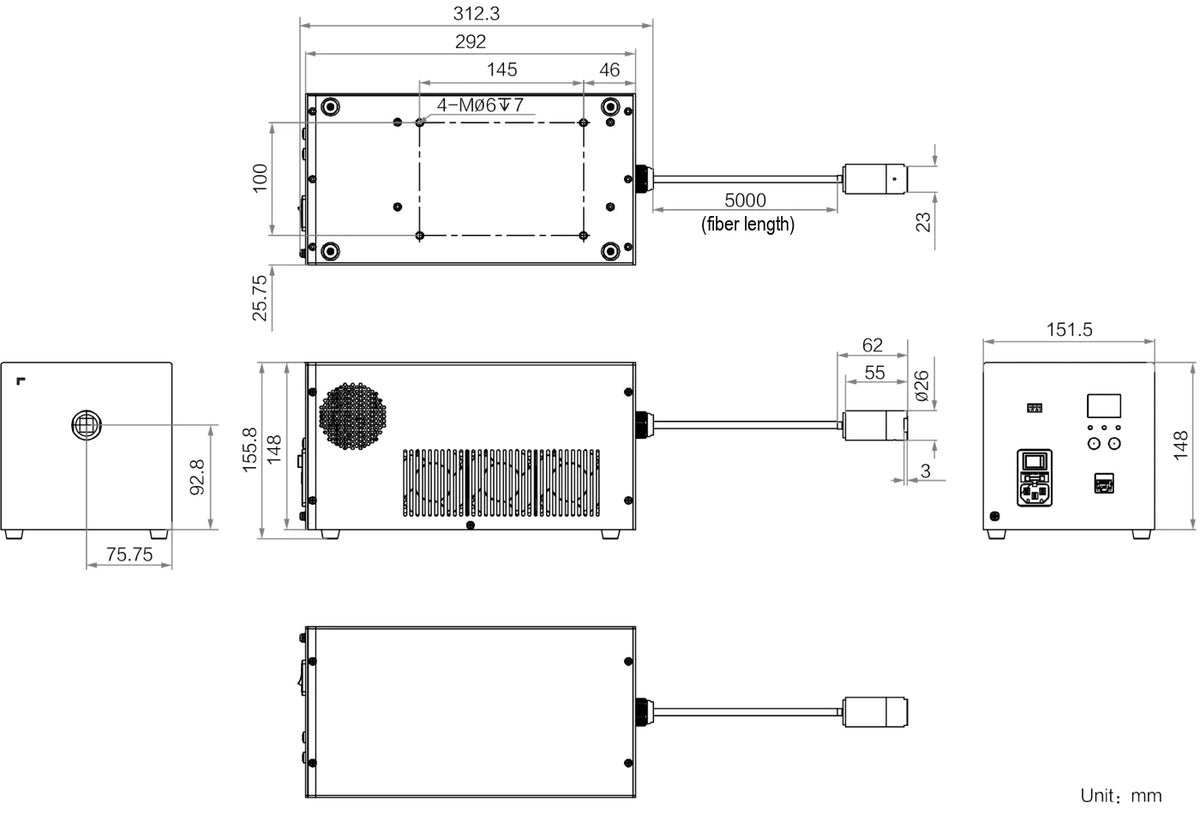

| Dimension | 312.3 mm × 151.5 mm × 155.8 mm (with feet) |
|---|---|
| Weight | Approx. 6 kg |
| Shell material | Black galvanized steel + aluminum alloy |
| Installation method | Desktop placement, Screw mounting |
| Min. bending radius | 88 mm |
| Pulse width | 1 s |
| Shipping weight (estimated) | 8.50 kg |
