Representative photo of this series
Special lights
AOI light, outer diameter 180 mm (LS-SPC-0091)
Model LS-SPC-0091
- ColourRed, Green, Blue
- Power55 W
- Voltage24 V
- TypeAOI
$1,179.00
Ships in 2-3 weeks
1.1 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?

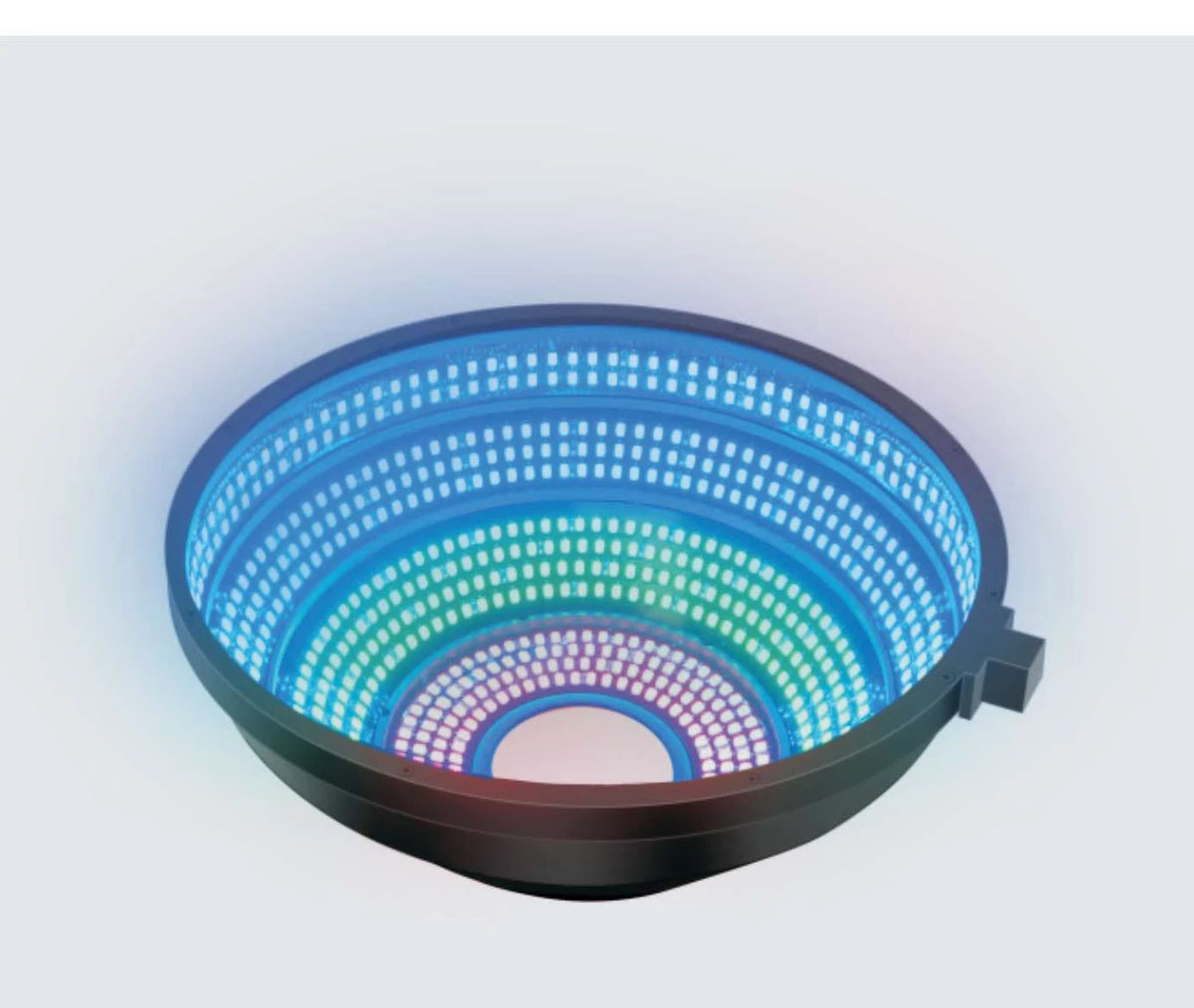

AOI light made of red, green and blue high-brightness LED arrays that light the object at different angles and in different colours to show its three-dimensional information. Detects missing parts, wrong parts, skew, missing solder, cold solder, excess and insufficient solder, bridging and polarity errors on PCBs. Can be combined with a coaxial light.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPC-0091 |
|---|---|
| Expected life | Red and white: 30000 h continuous, decays to 50% (typical one-year decay 8-15%); blue and green: 30000 h continuous, decays to 60% (typical one-year decay 10-18%) |
| Support | 1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Colours | RGB (three rings) |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 525 nm |
| Wavelength blue | 470 nm |
Environment and compliance
| Operating environment | Ambient about 25 °C, operating temperature within 35 °C |
|---|
Electrical
| Power (W) | 55 |
|---|---|
| Recommended controllers | LS-CTL-0142 / LS-CTL-0526, -4T / LS-CTL-0333, -4T, -6T, -8T |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-0142, LS-CTL-0526, LS-CTL-0333 |

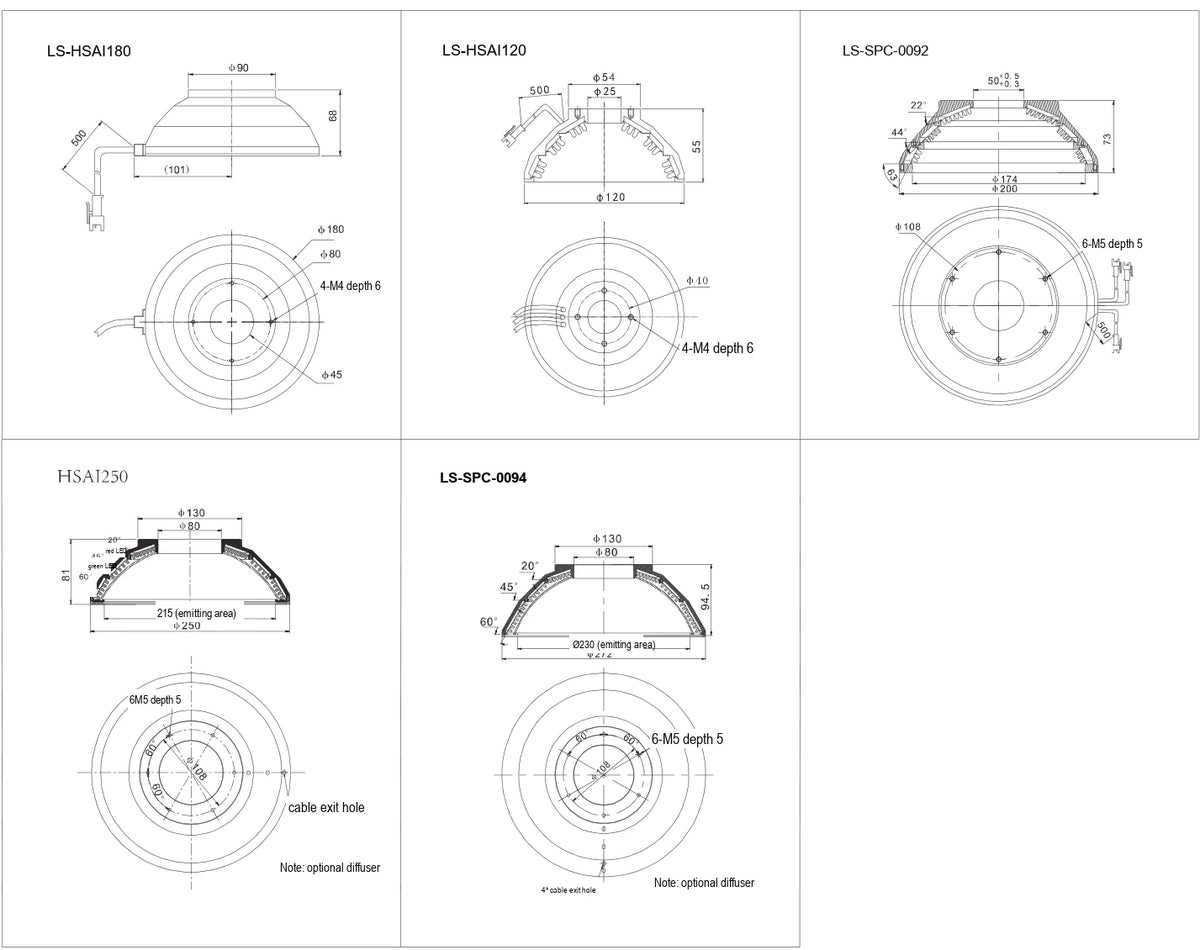

Mechanical
| Outer diameter (mm) | 180 |
|---|---|
| Inner diameter (mm) | 45 |
| Height (mm) | 68 |
| Shipping weight | 1.10 kg |
Other models in the AOI light (LS-SPC-S16) series
See all 5 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SPC-0090 | Red, Green, Blue · 21 W | $769.00 | Ships in 2-3 weeks | View |
| LS-SPC-0092 | Red, Green, Blue · 35 W | $949.00 | Ships in 2-3 weeks | View |
| LS-SPC-0094 | Red, Green, Blue · 66 W | $1,329.00 | Ships in 2-3 weeks | View |
| LS-SPC-0093 | Red, Green, Blue · 90 W | $1,599.00 | Ships in 2-3 weeks | View |
