Special lights

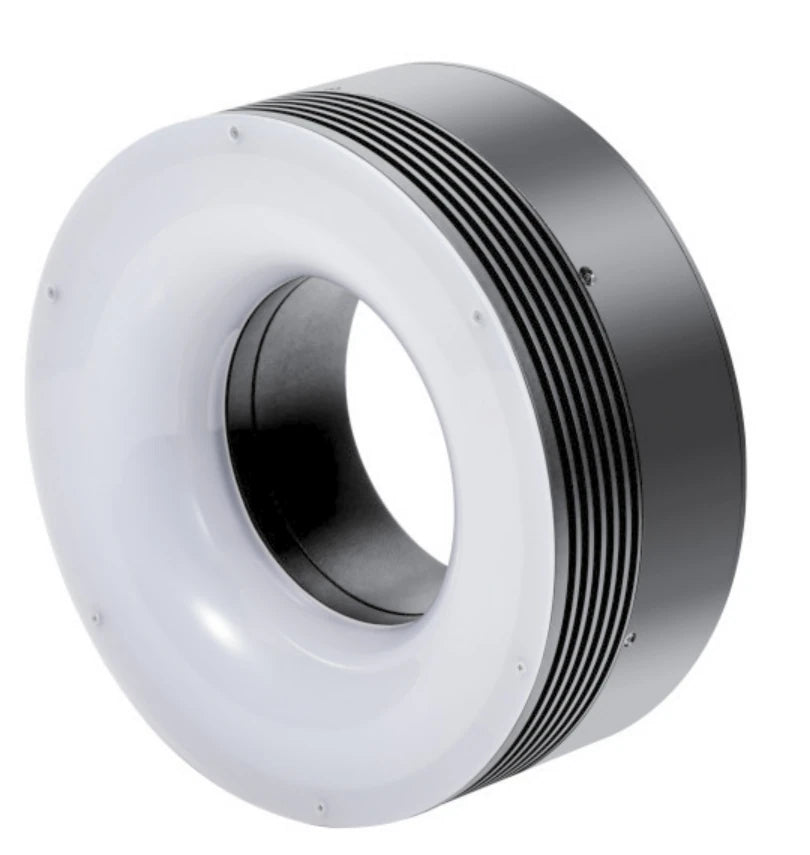

Multi-spectral sequencing ring light (LS-SPC-0089)
Model LS-SPC-0089
- ColourWhite, UV, Blue, Green, Red, Infrared
- VoltageDC 5 V
- Power20 W
- TypeAOI
$759.00
Ships in 2-3 weeks
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Ring light in the multi-channel sequencing series with eight wavelengths from 400 nm UV to 856 nm IR, DC 5 V input and an RS232 communication port.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPC-0089 |
|---|
Interfaces and I/O
| Power connector | DC 5.5 x 2.1 female socket |
|---|---|
| Communication | RS232 port (socket) |
Light
| Wavelengths | white 6500 K / UV 400 nm / blue 465 nm / green 530 nm / yellow 590 nm / red 650 nm / IR 730 nm / IR 856 nm |
|---|
Electrical
| Current | 4 A |
|---|---|
| Power | 20 W |
| Input voltage | DC 5 V |

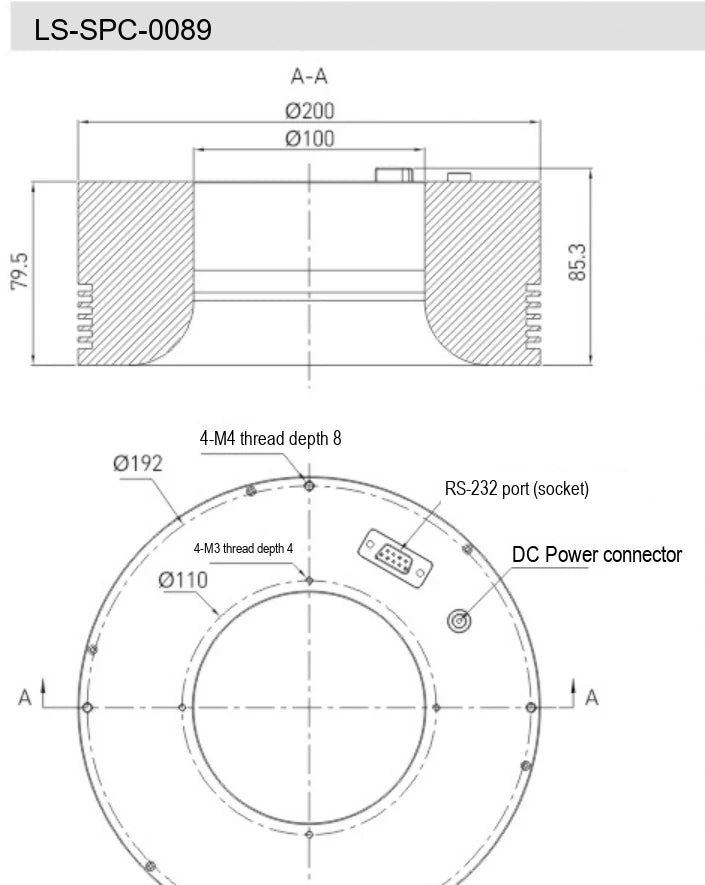

Mechanical
| Length (mm) | outer dia. 200 |
|---|---|
| Width (mm) | inner dia. 100 |
| Height (mm) | 85.3 |
| Mounting | 4-M4 depth 8 on dia. 192; 4-M3 depth 4 on dia. 110 |
| Housing height (mm) | 79.5 |
| Shipping weight | 0.50 kg |
