Special lights
270 x 270 mm Barrel Special Light (LS-SPC-0081)
Model LS-SPC-0081
- ColourRed, Green, Blue
- Emitting area270x270 mm
- Size340x340x727 mm
- Voltage24 V
$1,339.00
Ships in 2-3 weeks
12.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
270 x 270 mm Barrel Special Light. Large enclosed barrel light for photovoltaic cell inspection that quickly detects scratches, crystal detachment, dirt, colour differences, white spots, watermarks and missing corners, and can distinguish more than 7 colour categories.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPC-0081 |
|---|
Light
| Emitting area (mm) | 270x270 |
|---|---|
| Colours | Red, Green, Blue |
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R (W) | 32.4 |
| Power G (W) | 34 |
| Power B (W) | 34.5 |
Mechanical
| Outer size L x W x H (mm) | 340x340x727 |
|---|---|
| Shipping weight (estimated) | 12.50 kg |
Mounting and drawing data

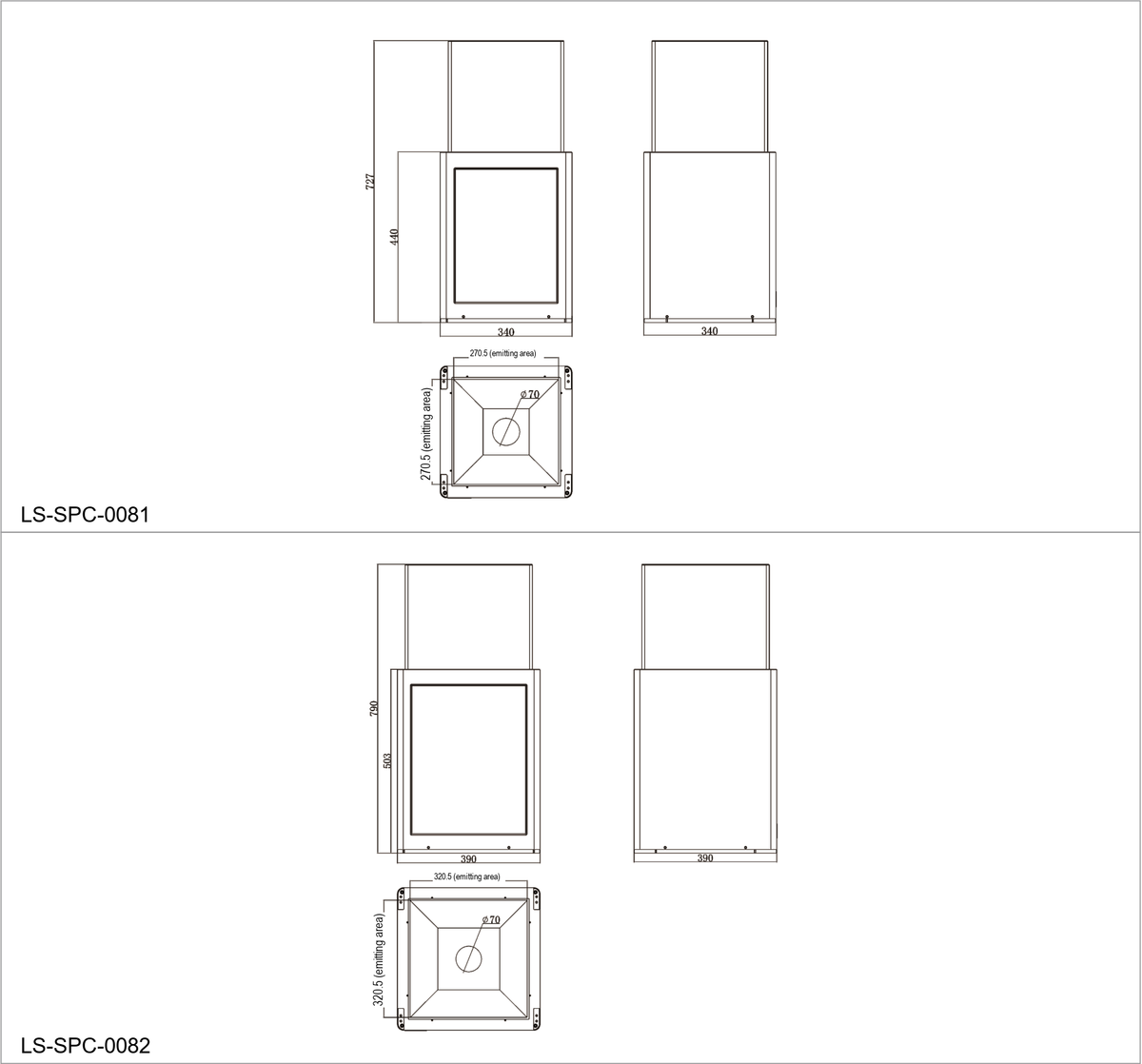

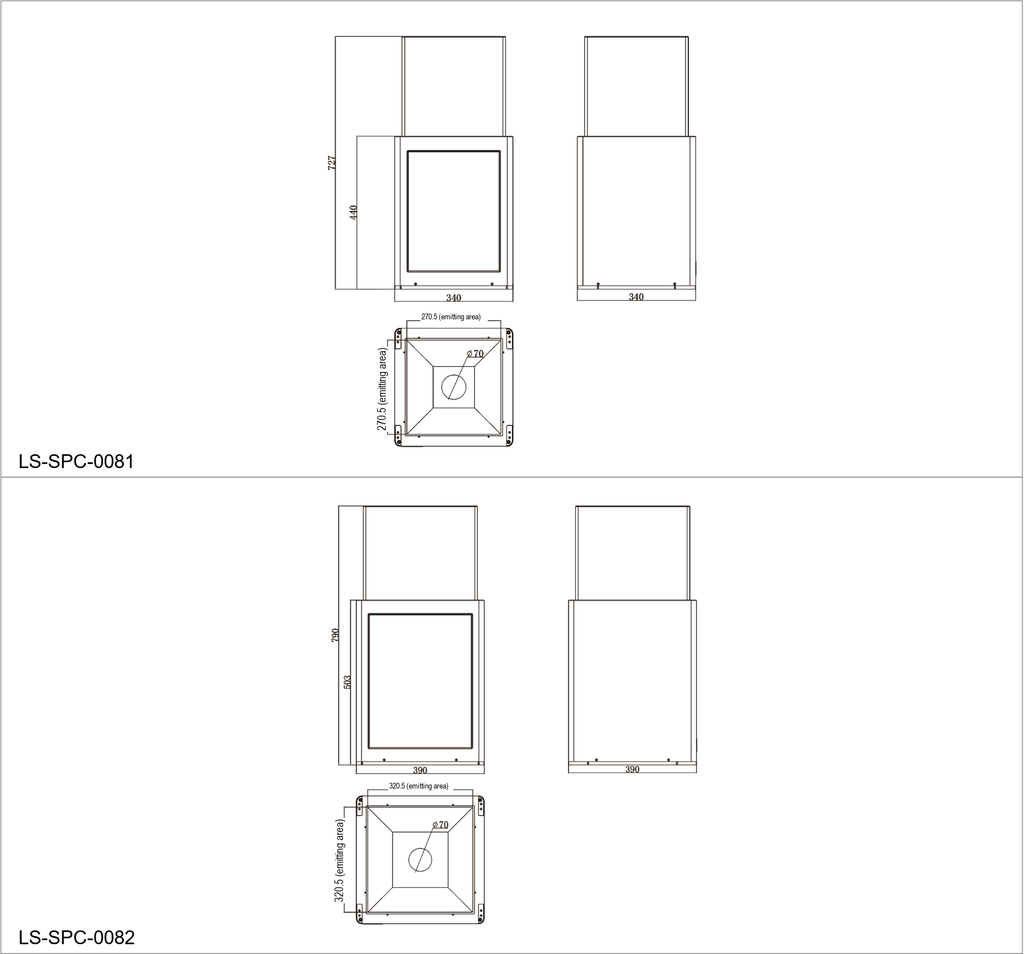

Drawing: lower body 440 high, total height 727, width 340; emitting face 270.5 x 270.5; camera opening dia. 70.

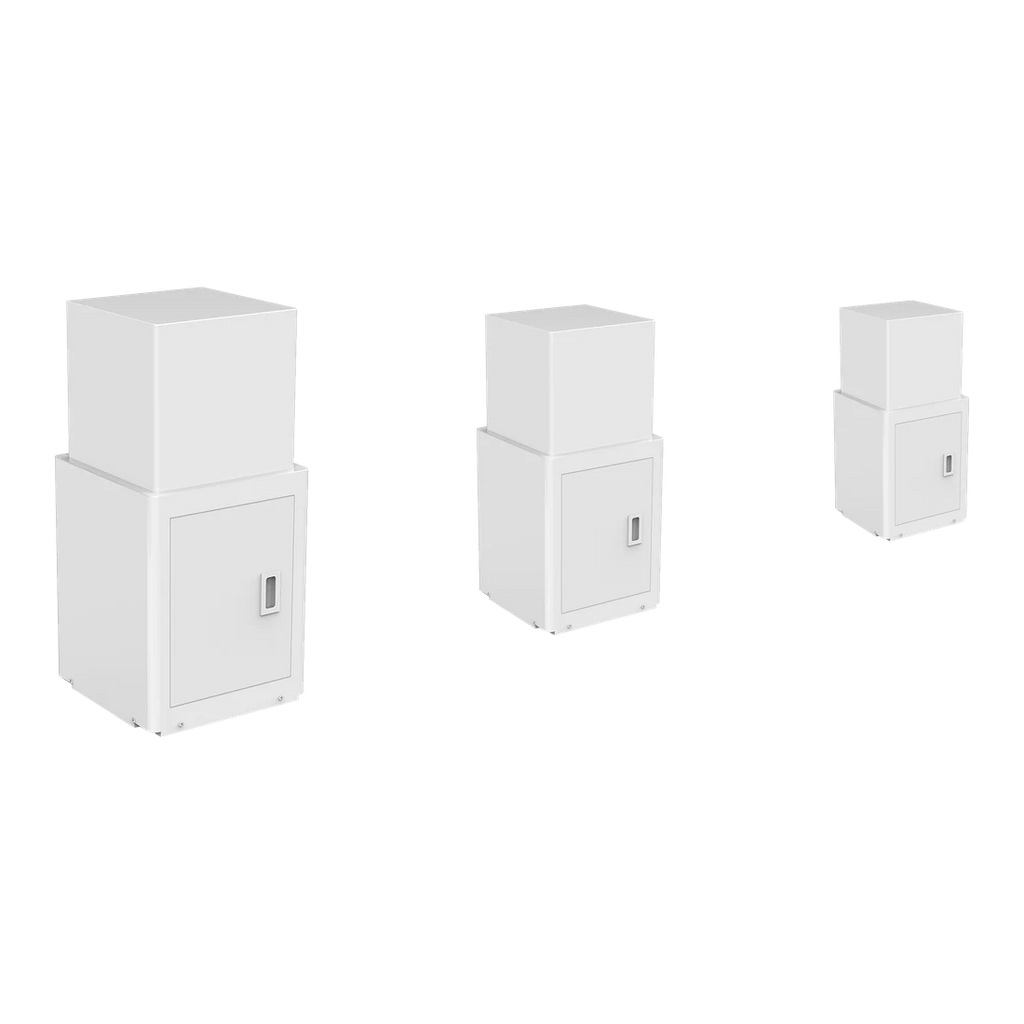

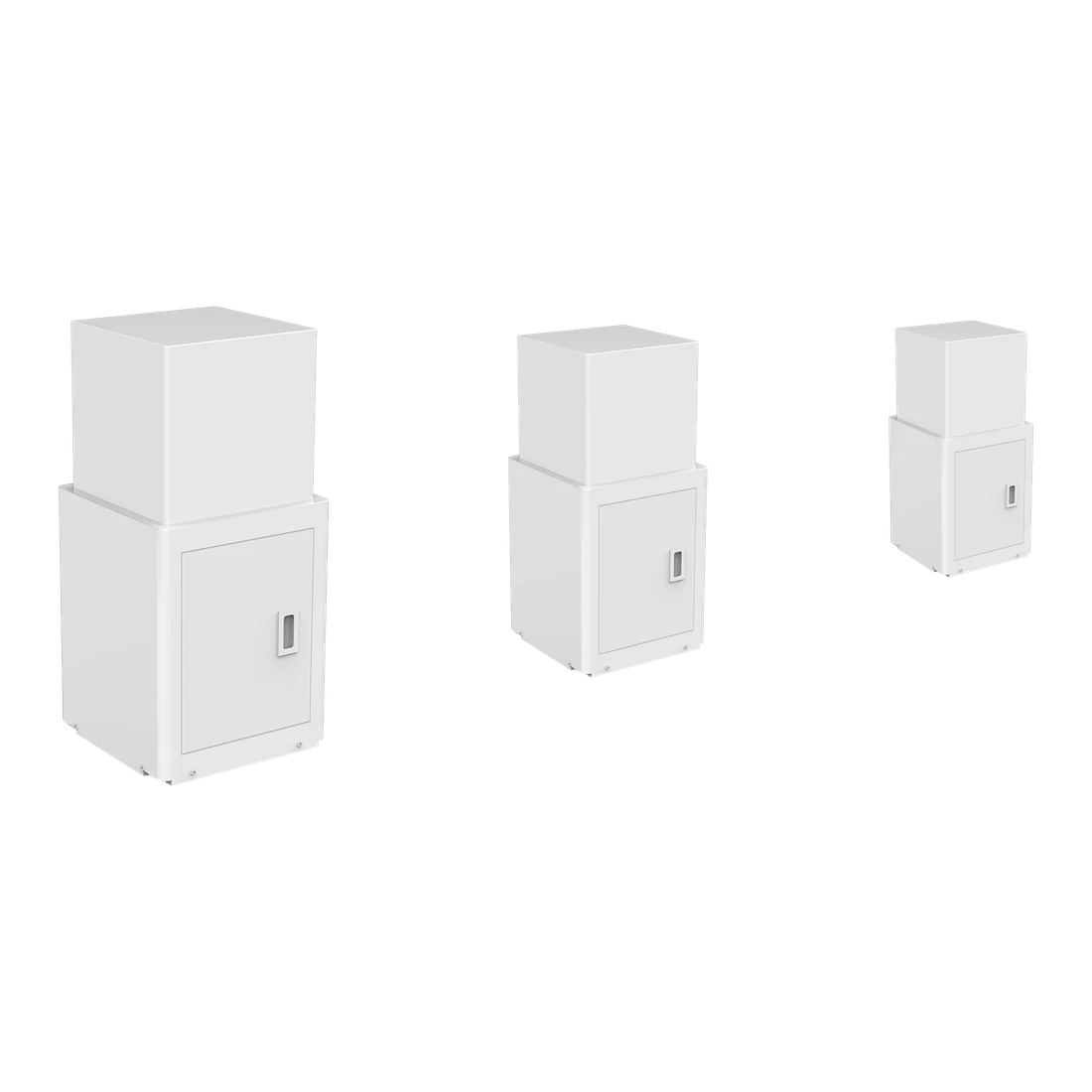

Other models in the Photovoltaic barrel light (LS-SPC-S13) series
See the category| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SPC-0082 | 320 x 320 mm | $1,559.00 | Ships in 2-3 weeks | View |
