62 x 52 mm Customized lights (LS-SPC-0066)
  • 62 x 52 mm Customized lights (LS-SPC-0066)

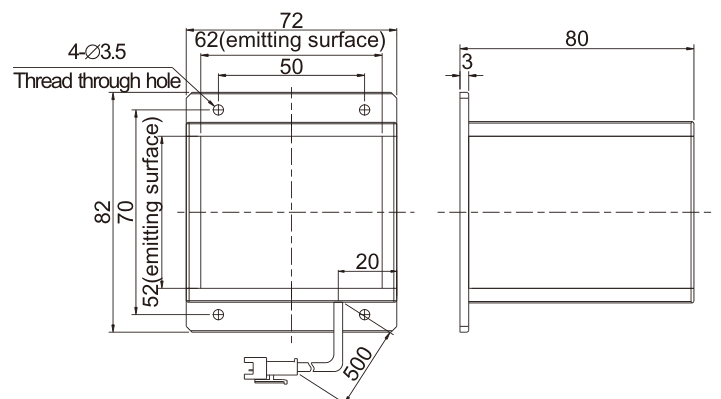

  • LS-SPC-0066 dimensions (mm)

Special lights

62 x 52 mm Customized lights (LS-SPC-0066)

Model LS-SPC-0066

  • ColourWhite
  • Emitting area62 x 52 mm
  • Size72 x 82 mm
  • Voltage24 V
  • Power3.6 W
$569.00

Ships in 2-3 weeks

0.45 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

62 x 52 mm Customized lights (LS-SPC-0066)LS-SPC-0066

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

To serve customers with different needs, machine-vision illumination of many kinds can be customized to the customer's requirements. Process: the customer states an idea or requirement, a solution is worked out by experiment, feasibility is discussed with the customer, products are trial-produced, and the customer is assisted in use.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SPC-0066
NoteUV & IR light can be customized as required.
TypeCustomized collimated back light

Interfaces and I/O

Cable (mm)500 (drawing)

Light

Emitting surface (mm)62 x 52

Electrical

Voltage24 V
Voltage (V)24
Power (W)3.6
Power3.6W

Mechanical

Outer size (mm)72 x 82
Height (mm)80
Mounting4-dia. 3.5 through holes
DimensionL72xW82xH80(mm)
Shipping weight0.45 kg
