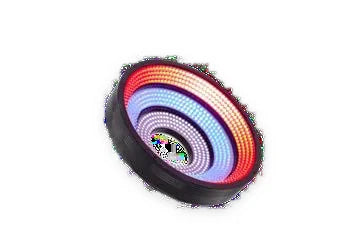

Representative photo of this series
Special lights
80 mm dia. AOI light (LS-SPC-0028)
Model LS-SPC-0028
- ColourRed, Green, Blue, White, Infrared, UV
- Voltage24 V DC (12 V on request)
- TypeAOI
- Number of lamp rows4
$789.00
Ships in 2-3 weeks
0.4 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Multiple colours and multi-angle illumination, highlighting the surface layer information of objects.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPC-0028 |
|---|---|
| Number of lamp rows | 4 |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Electrical
| Voltage | 24 V DC (12 V on request) |
|---|---|
| Power red (W) | 9.1 |
| Power white/blue/green (W) | 22.2 |

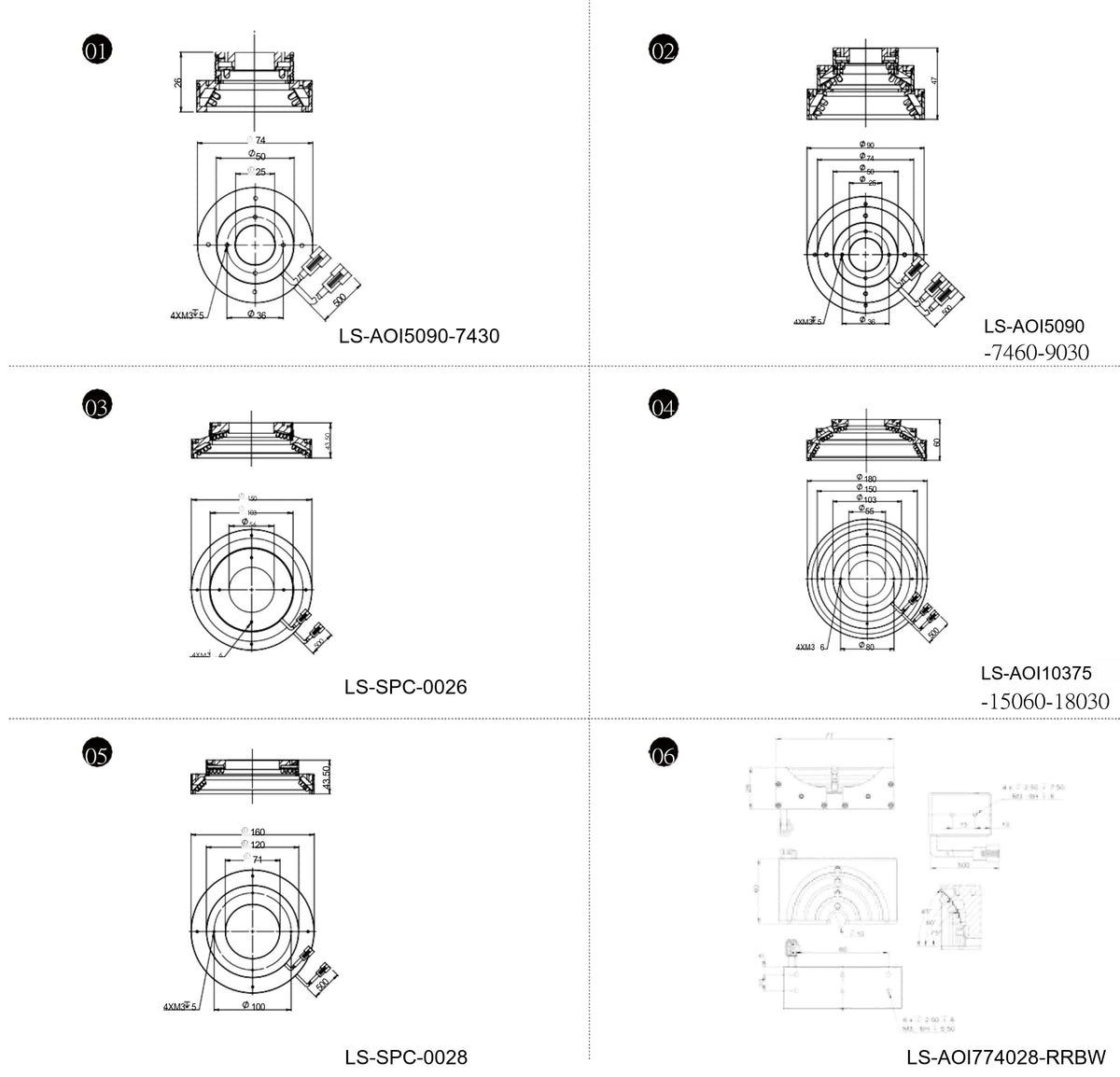

Mechanical
| Outer diameter (mm) | 80 |
|---|---|
| Inner diameter (mm) | 36 |
| Height (mm) | 43.5 |
| Mounting | 4 x M3 threaded, depth 5 |
| Shipping weight | 0.40 kg |
Other models in the AOI light (LS-SPC-S10) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SPC-0029 | 77 mm dia. | $559.00 | Ships in 2-3 weeks | View |
| LS-SPC-0024 | 74 mm dia. | $589.00 | Ships in 2-3 weeks | View |
| LS-SPC-0025 | 88 mm dia. | $649.00 | Ships in 2-3 weeks | View |
| LS-SPC-0026 | 150 mm dia. | $749.00 | Ships in 2-3 weeks | View |
| LS-SPC-0027 | 130 mm dia. | $899.00 | Ships in 2-3 weeks | View |
