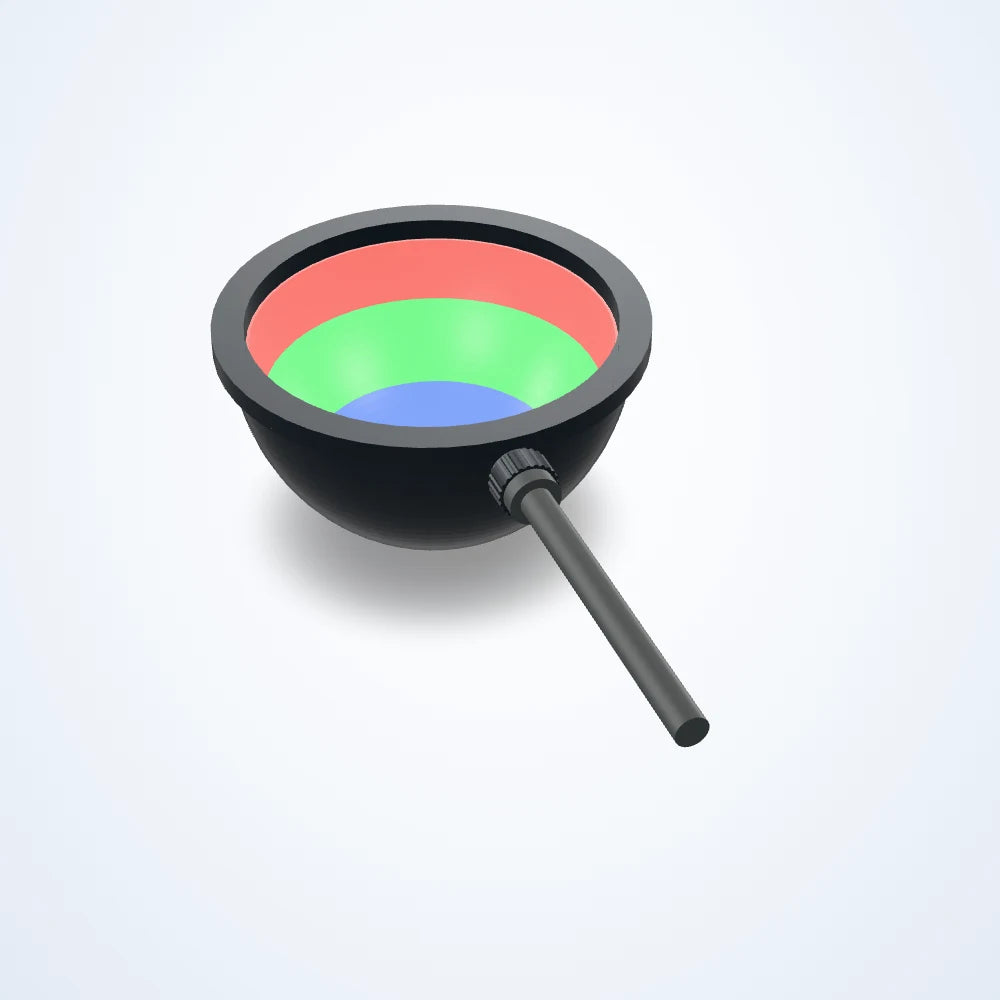

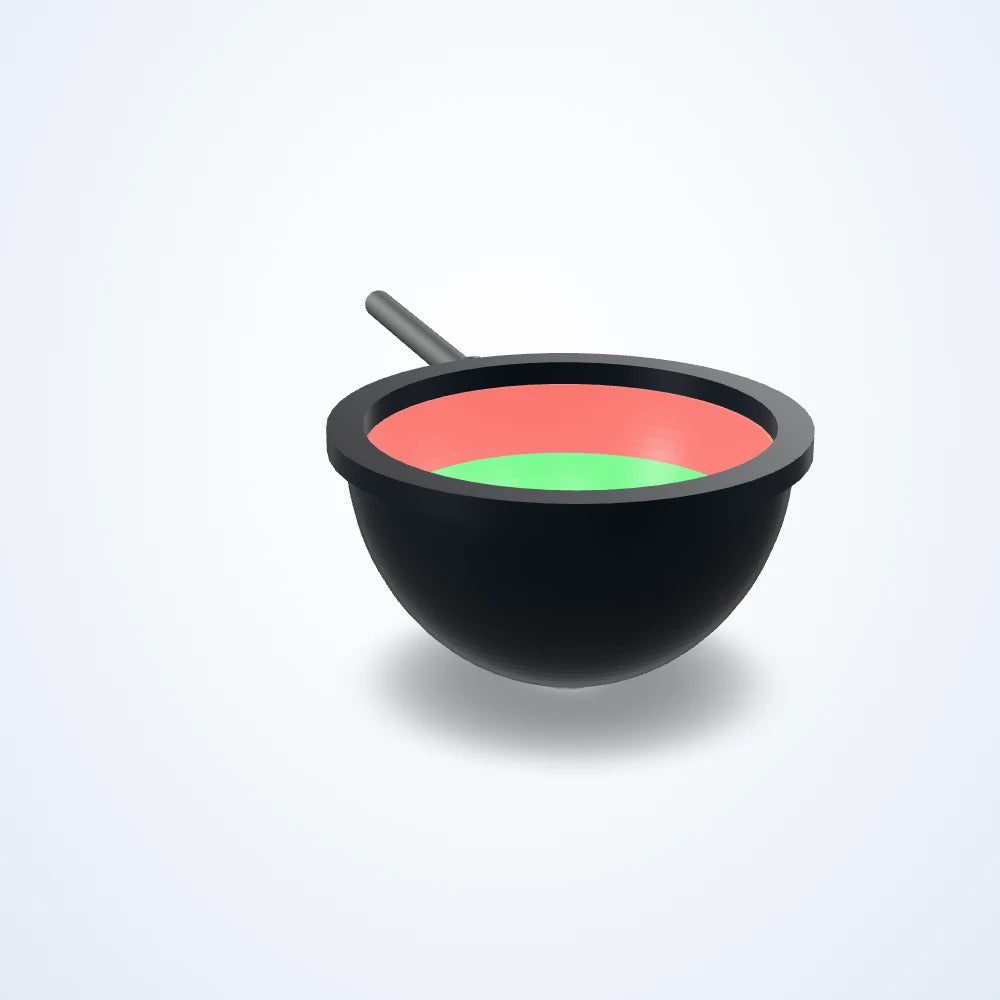

Rendered illustration: the actual product may differ in appearance.
Special lights
Ø73 mm three-colour AOI light (LS-SPC-0013)
Model LS-SPC-0013
- SizeOD:73 mm ID:8 mm
- Voltage24 V
- PowerR:4w G:5w B:6w W:/w
- Outer diameter73 mm
$609.00
Ships in 3-4 weeks
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Three-colour AOI light for special inspection tasks. Size Ø73 mm; 24 V supply.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPC-0013 |
|---|---|
| Pin assignment | 1: (+), 2: NC, 3: (-) |
| Service life | 30,000hrs-60,000hrs (Depends on the operating environment, not a gurantee) |
Interfaces and I/O
| Connector | SMR-03 V-B |
|---|---|
| Cable length | - mm |
Environment and compliance
| Operating environment | Temperature: 0~40 °C Humidity:20% to 85% RH (with no condensation) |
|---|
Electrical
| Supply voltage | 24 V |
|---|---|
| Power | R:4w G:5w B:6w W:/w |
Mechanical
| Outer diameter (mm) | 73 |
|---|---|
| Inner diameter (mm) | 8 |
| Dimensions (mm) | OD:73 mm ID:8 mm |
| Height (mm) | 28.5 mm |
| Housing material | Aluminum alloy, Resin |
| Shipping weight | 0.50 kg |
Other models in the Three-colour AOI lights (LS-SPC-S08) series
See all 5 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SPC-0014 | Ø100 mm | $609.00 | Ships in 3-4 weeks | View |
| LS-SPC-0015 | Ø123 mm | $630.00 | Ships in 3-4 weeks | View |
| LS-SPC-0016 | Ø198 mm | $978.00 | Ships in 3-4 weeks | View |
| LS-SPC-0017 | Ø250 mm | $1,035.00 | Ships in 3-4 weeks | View |
