Representative photo of this series
Special lights
Projection structured light, Ø50 mm (LS-SPC-0012)
Model LS-SPC-0012
- ColourWhite
- SizeL84.62xOut dia. 50(mm)
- Power10W
- TypeStructured
$639.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
The structure upgrade is simple, the weight is lighter, and the cost performance is higher. The sharpness and precision of the projected pattern have been enhanced. LED projection structured light suitable for 3D imaging.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPC-0012 |
|---|---|
| Note | UV & IR light can be customized as required. |
Interfaces and I/O

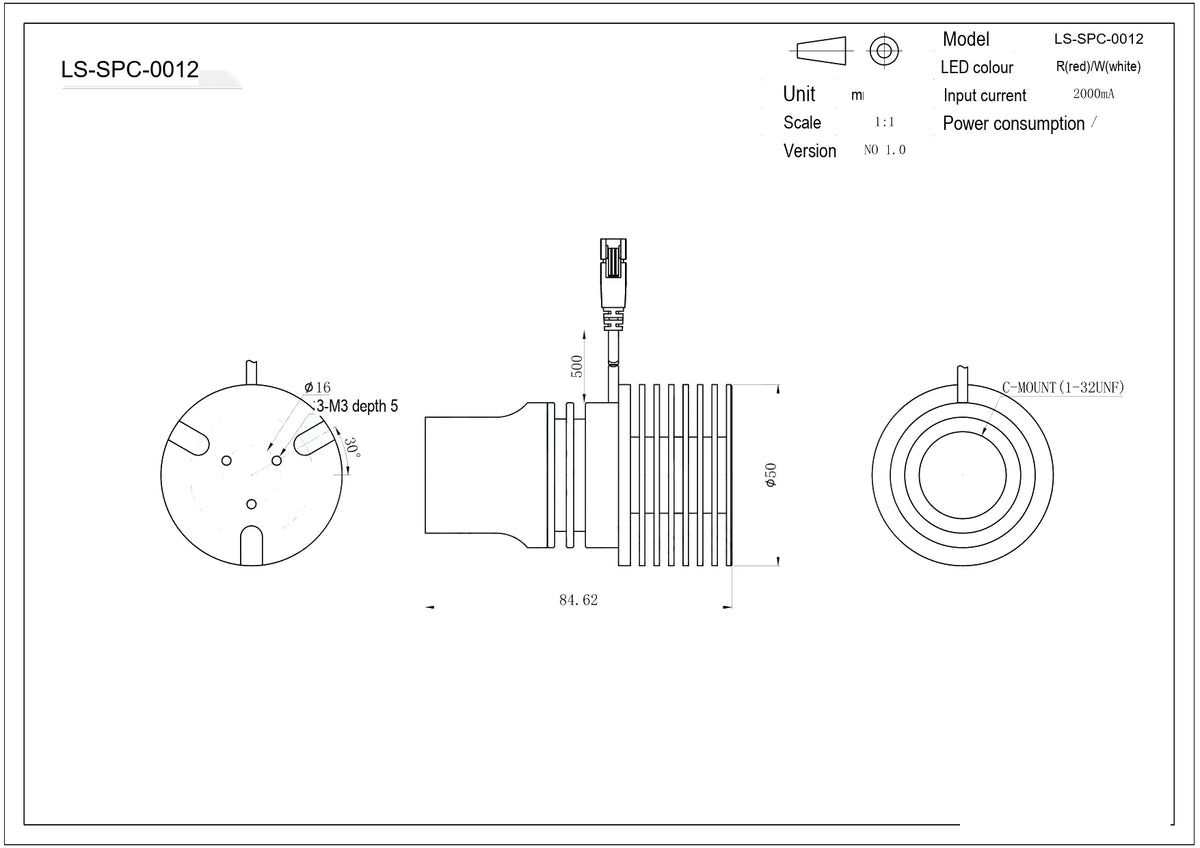

| Cable (mm) | 500 (drawing) |
|---|
Light
| LED colour | R(red)/W(white) |
|---|
Electrical
| Power | 10W |
|---|
Mechanical
| Mount | C mount |
|---|---|
| Dimension | L84.62xOut dia. 50(mm) |
| Mounting holes | 3-M3 depth 5 |
| Shipping weight | 0.50 kg |
Other models in the Projection structured light (LS-SPC-S07) series
See the category| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SPC-0011 | Red, Blue, Green, White · L84.62xOut dia. 40(mm) | $579.00 | 9 in stock | View |
