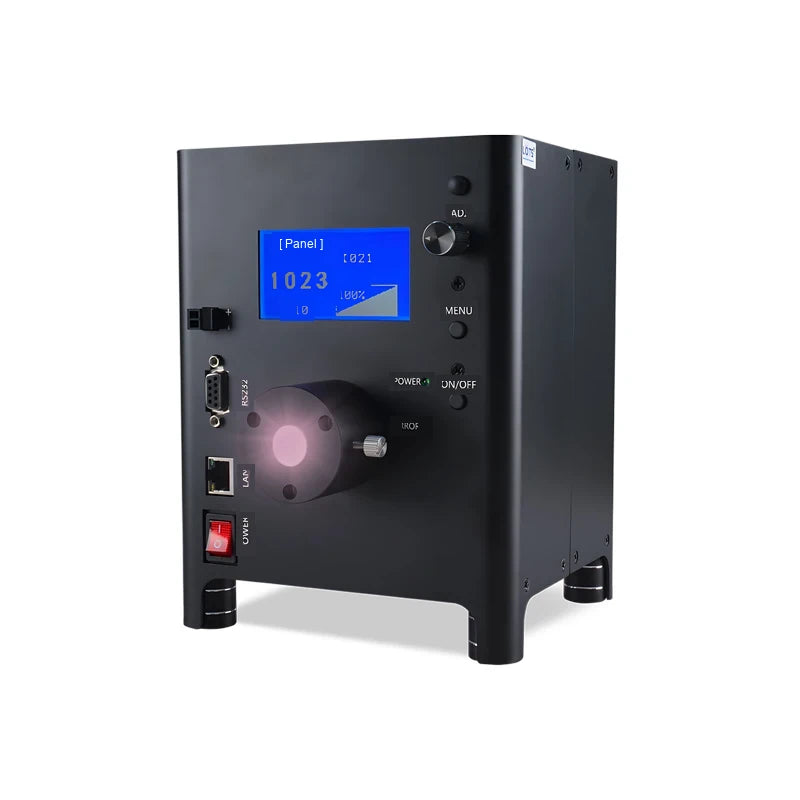

Representative photo of this series
Special lights
SWIR fiber optic light, 1050 nm (LS-SPC-0008)
Model LS-SPC-0008
- SizeL177xW155xH203(mm)
- Voltage100-240V AC
- Wavelength1050/1125/1200/1300/1500/1650nm
- TypeLight box
$789.00
Ships in 2-3 weeks
0.2 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Used for exterior and interior inspection. 9 wavelengths from 810nm to 1650nm are standard. Best for replacing halogen light sources.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPC-0008 |
|---|---|
| Type | SWIR |
Interfaces and I/O
| Communication method | RS232/LAN |
|---|
Light
| Luminance control level | 256/1024 Level |
|---|---|
| Luminance control method | Manual encoder knob adjustment, RS232/LAN communication optional |
| Wavelength | 1050/1125/1200/1300/1500/1650nm |
| LED Wavelength | 1050-1650nm |
| LED colour | IR1050/1125/1200/1300/1500/1650 |
Environment and compliance
| Lifespan | 30000 hours (until the light intensity reaches 50% of the time) |
|---|---|
| Operating environment | Temperature : 0 to 40ºC, humidity : 20 to 85%RH(Non-condensing) |
| Storage environment | Temperature : 0 to 50ºC, humidity : 20 to 85%RH(Non-condensing) |
Electrical
| Baud rate | 19200bps |
|---|---|
| Drive mode | Constant current |
| External trigger voltage | 5-24V |
| Input voltage | 100-240V AC |
| Insulation and voltage resistance | AC1500V 1 minute cut off current 10mA, DC500V20MΩ or more |
| Number of channels | 1 ch |
| Protection functions | Over-load protection, over temperature protection, power off saving |
| Trigger response time | 20us |

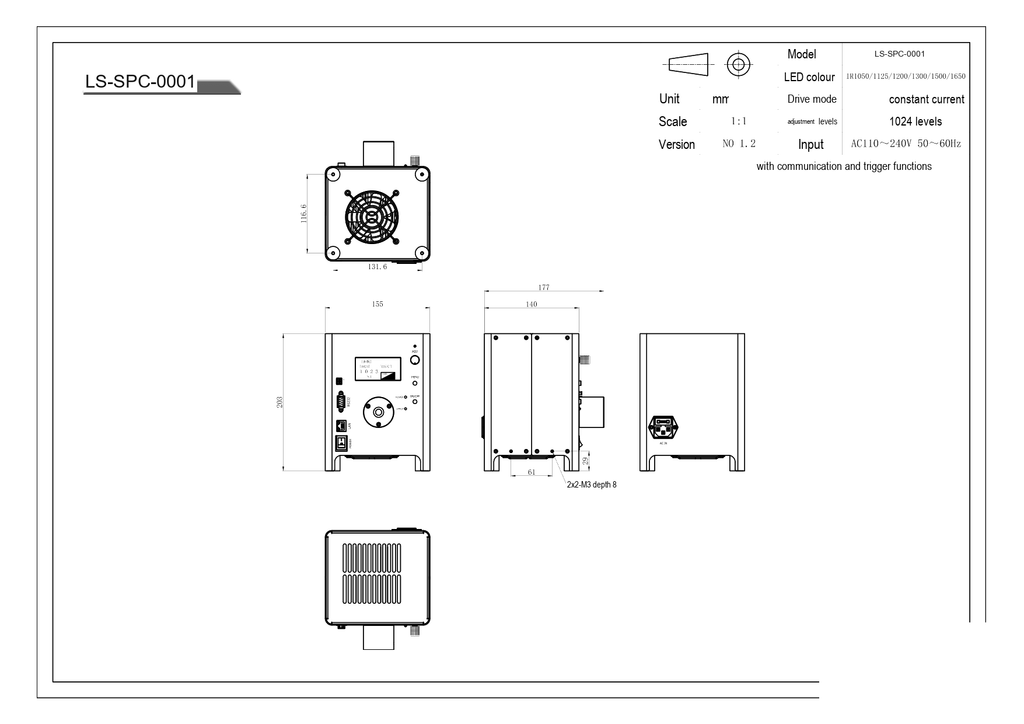

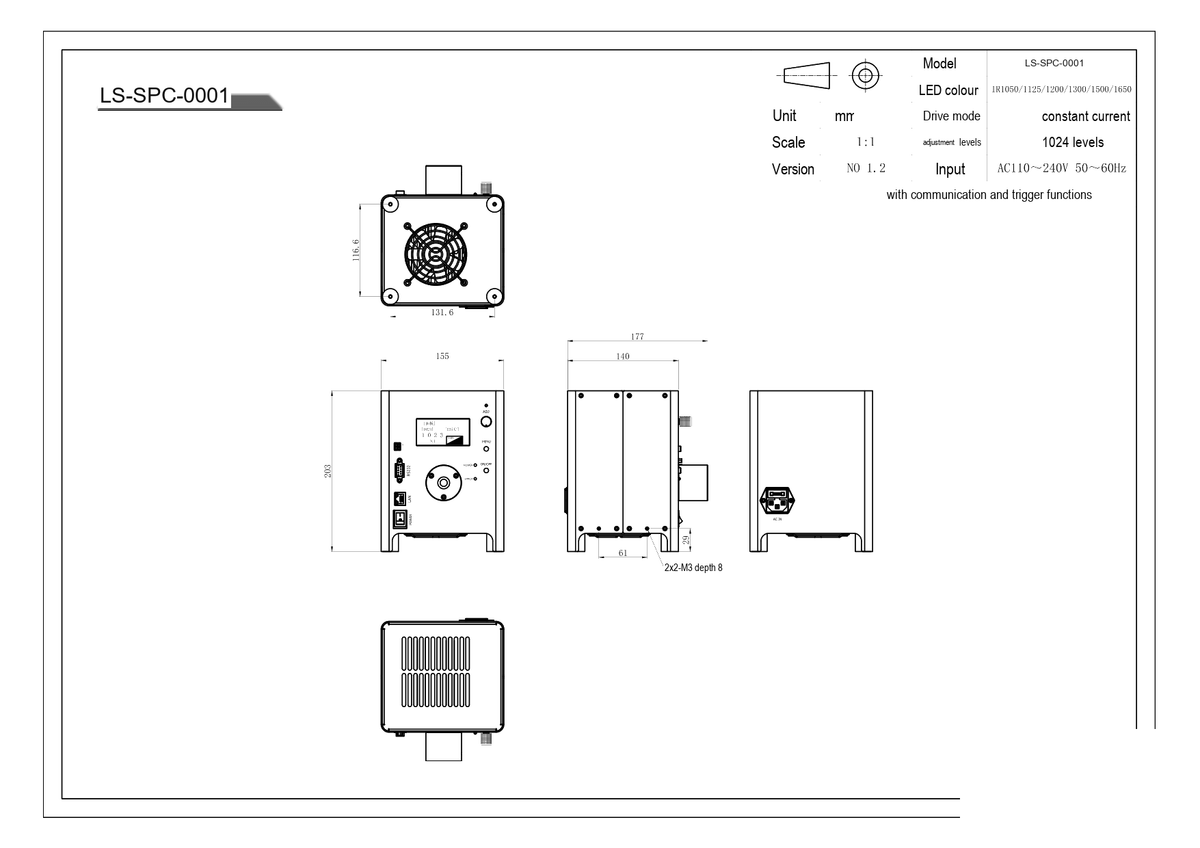

Mechanical
| Compatible fiber diameter | Fiber OF diameter dia. 6-14mm |
|---|---|
| Dimension | L177xW155xH203(mm) |
| Mounting holes | 2×2-M3 depth 8 |
| Shipping weight | 0.20 kg |
Other models in the SWIR fiber optic light (LS-SPC-S05) series
See all 3 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SPC-0007 | L177xW155xH203(mm) · 100-240V AC | $789.00 | Ships in 2-3 weeks | View |
| LS-SPC-0009 | L177xW155xH203(mm) · 100-240V AC | $789.00 | Ships in 2-3 weeks | View |
