Special lights

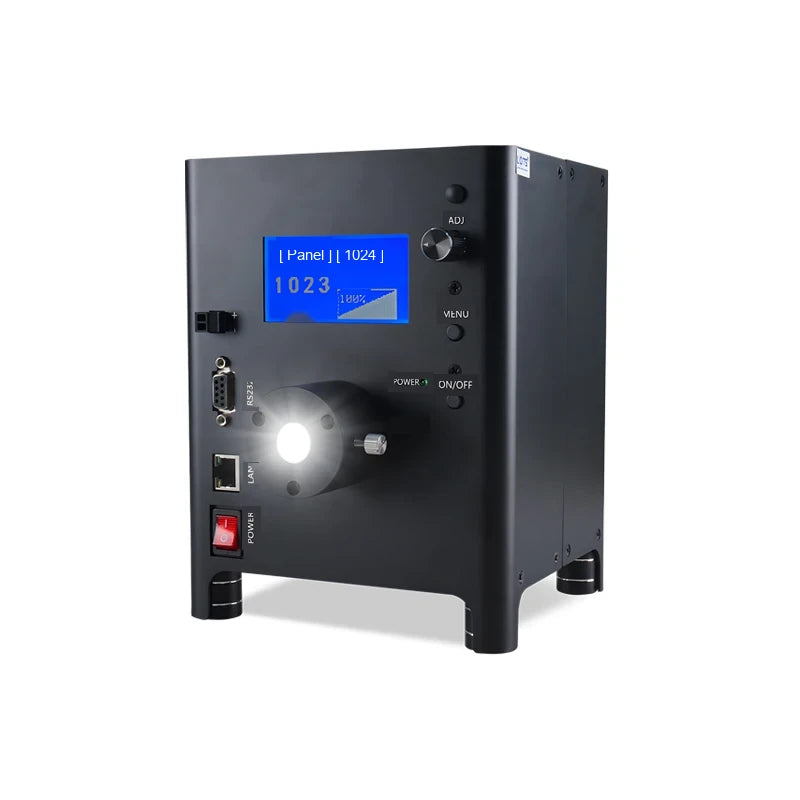

Laser fiber light (LS-SPC-0005)
Model LS-SPC-0005
- ColourWhite
- SizeL193.5xW155xH203(mm)
- Voltage100-240V AC
- TypeLight box
$4,679.00
Ships in 2-3 weeks
0.2 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Laser Fiber Light (light box) the maximum white brightness is approximately 30 million Lx, and the frequency can reach 8KHZ.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPC-0005 |
|---|---|
| CRI | 70 |
| Average life span | 15,000 hours (stabilization time of 70% of the maximum light quantity) |
| Startup response time | ≦6S |
| Constant on/constant off mode switching | This model has two modes: constantly on and constantly off, which can be switched through the initial state function inside the MANU |
Interfaces and I/O
| Communication mode | RS232/LAN |
|---|
Light
| Color temp. | 7000K |
|---|---|
| Emitting angle | 50° |
| luminance value | Approximately 30 million Lx(8mm optical fiber beam) |
| Color | White |
| Luminance control method | Manual encoder knob adjustment, remote adjustment on PC |
| Luminance control level | 256/1024 level |
| LED colour | W(white) |
Environment and compliance
| Service environment | Temperature : 0 to 40ºC,humidity : 20 to 85%RH(Non-condensing) |
|---|---|
| Storage environment | Temperature : 0 to50ºC,humidity : 20 to 85%RH(Non-condensing) |
Electrical
| Output power | 350W |
|---|---|
| External trigger voltage | Strobe / constant on using External trigger voltage 5-24V |
| Drive mode | Constant Current Driving |
| Input voltage | 100-240V AC |
| Number of channels | 1 way |
| Baud rate | 19200bps |
| Input frequency range | 50/60Hz |
| Protection functions | The set brightness parameters will be automatically saved upon power failure |
| External trigger frequency | It is determined by the external trigger signal mode. If the duty cycle of the external trigger signal is 50%. The maximum external effective trigger frequency is 8KHZ |
| External trigger respond time | 20us |
Mechanical

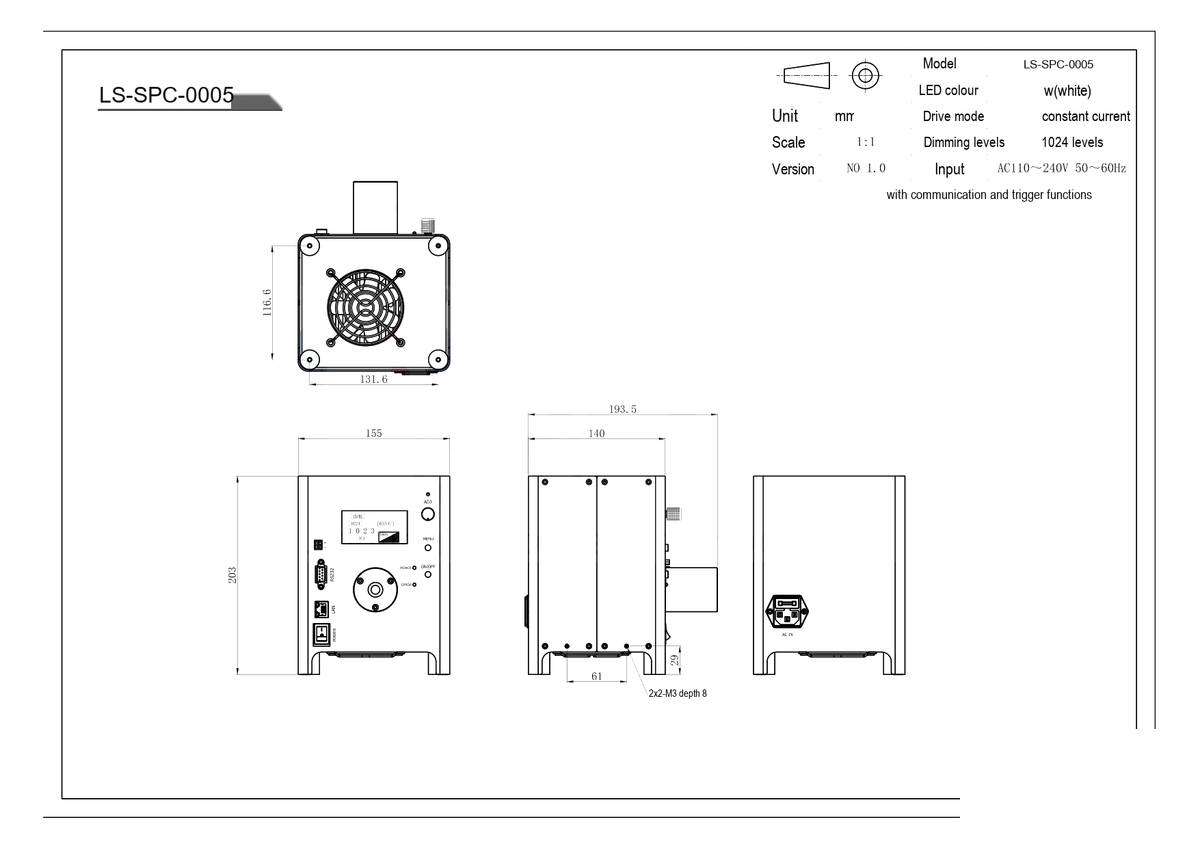

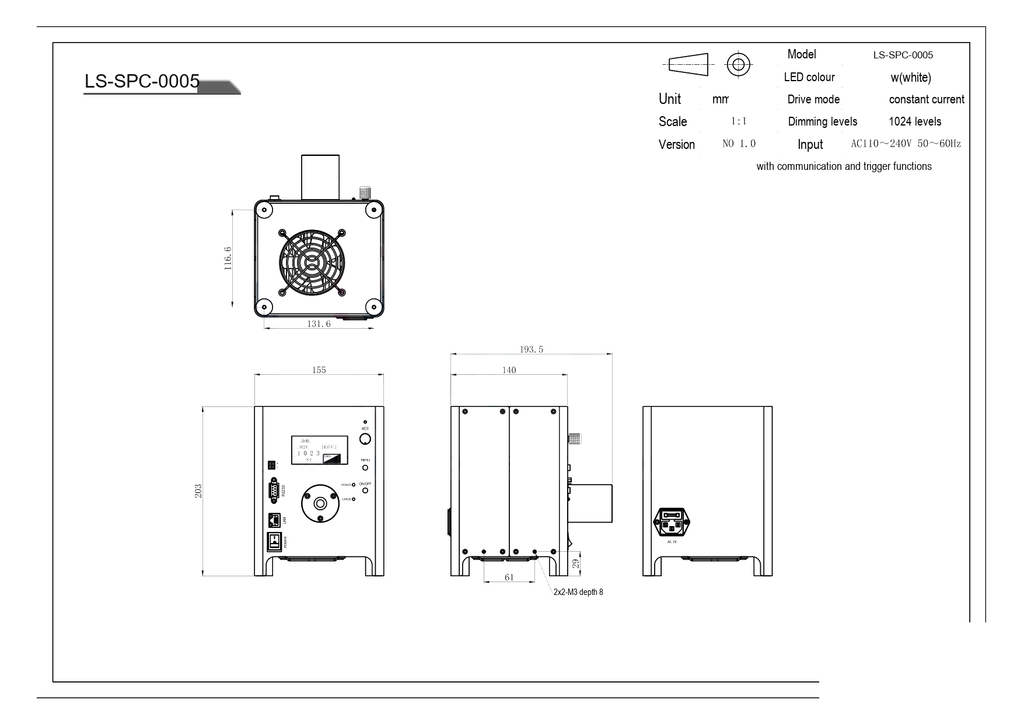

| Dimension | L193.5xW155xH203(mm) |
|---|---|
| Compatible fiber diameter (mm) | The core diameter of the high-temperature resistant optical fiber is 6-14mm |
| Mounting holes | 2×2-M3 depth 8 |
| Shipping weight | 0.20 kg |
