Representative photo of this series
Shadowless lights
Shadowless light source (LS-SDL-0178)
Model LS-SDL-0178
- ColourWhite
- Voltage24 V
- Wavelength red620-630 nm
- Wavelength green520-530 nm
$2,039.00
In stock - ships the same business day (5 available, order by 2 PM ET)
3.15 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Large rectangular shadowless light suitable for large measured objects, giving uniform illumination and eliminating reflections.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SDL-0178 |
|---|---|
| Optional accessories | Extension cable |
| Service life (red) | 60000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| Service life (white) | 30000 h continuous at 25 °C, 50% illumination, to 50% decrement |

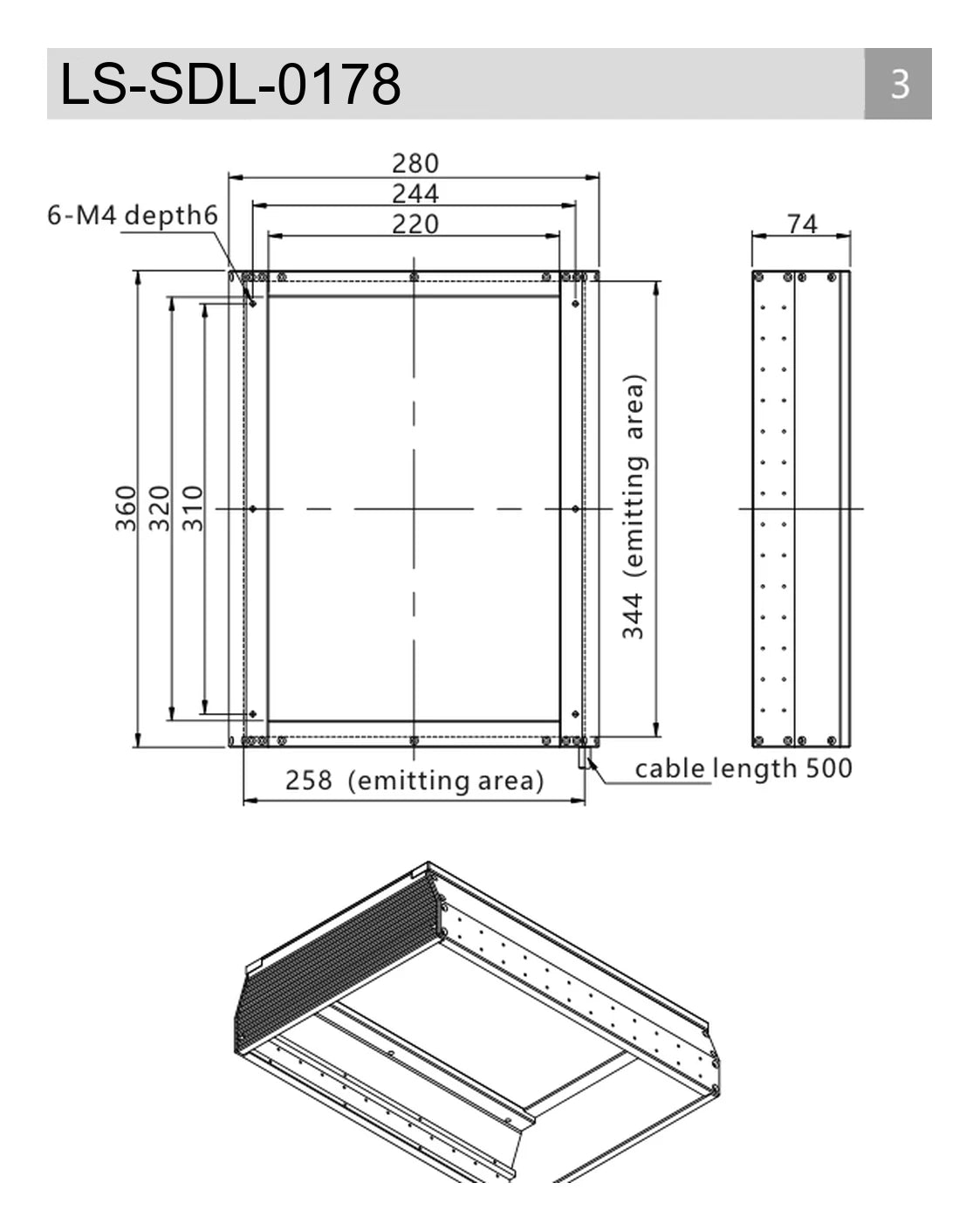

| Overall L (mm) | 360 |
| Overall W (mm) | 280 |
| Overall H (mm) | 74 |
Light
| Wavelength red | 620-630 nm |
|---|---|
| Wavelength green | 520-530 nm |
| Wavelength blue | 465-475 nm |
| Colour temperature white | 6000-6500 K |
| Wavelength IR | 850-940 nm |
| Wavelength UV | 365-405 nm |
| Illuminance chart reference | LS-SDL-0177-W; uniformity LS-SDL-0177-W, FOV 350 x 350 mm at LWD 50/70/90 mm |
Environment and compliance
| Storage temperature | -20 to 60 °C |
|---|---|
| Operating temperature | 0 to 40 °C |
| Humidity | 20-85 %RH (non-condensing) |
Electrical
| Controller | LS-CTL-S69 series, LS-CTL-S28 series, LS-CTL-S125 series (the selected controller should match the power of the light source) |
|---|---|
| Power G/B/W (W) | 40 |
| Recommended controller | LS-CTL-S69, LS-CTL-S28, LS-CTL-S125 |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-S69, LS-CTL-S28 |
Mechanical
| Shipping weight | 3.15 kg |
|---|
