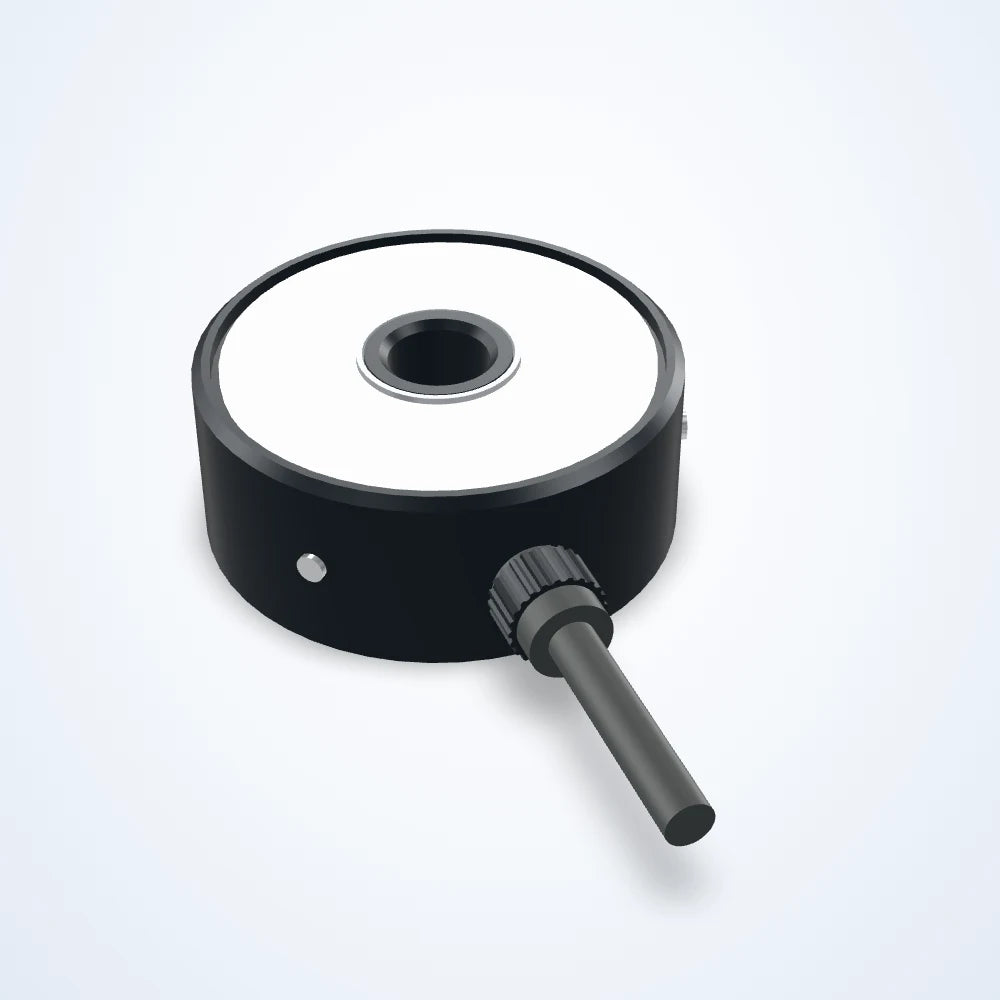

Shadowless ring light (series view)

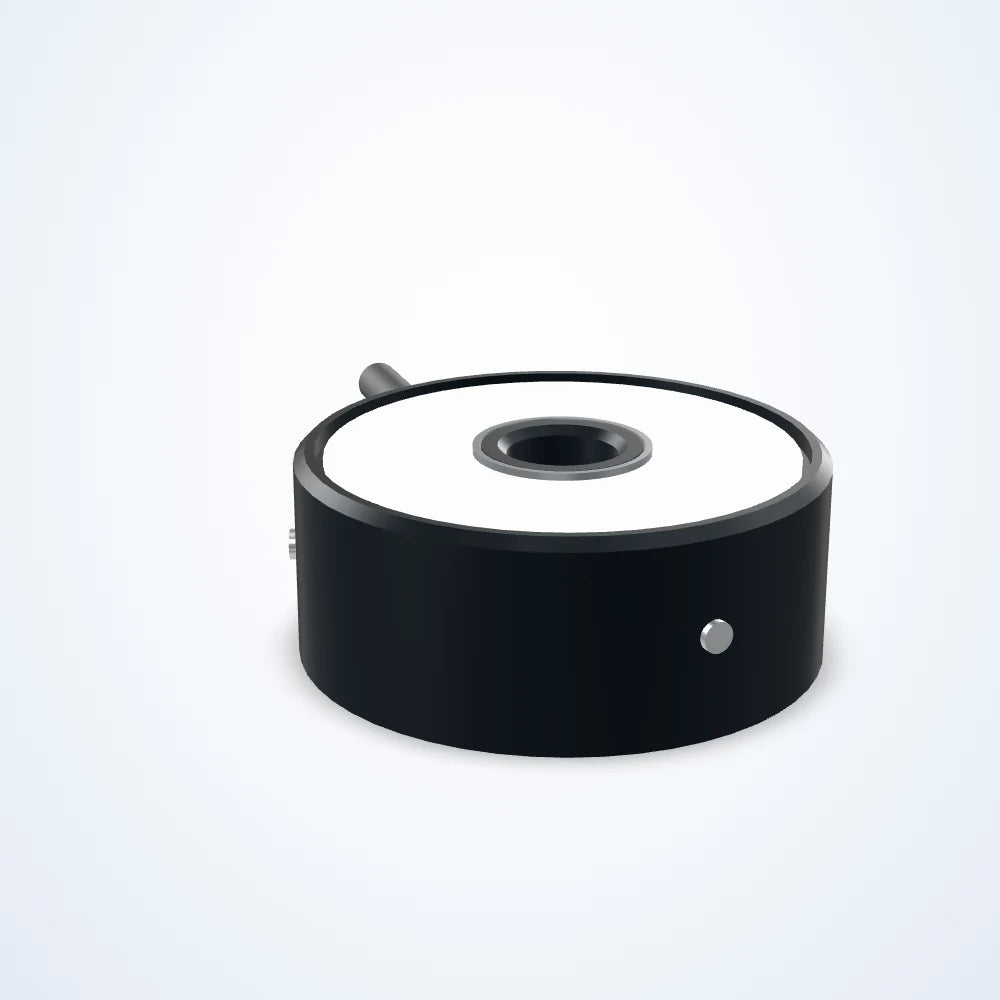

  • Shadowless ring light (series view)
  • Shadowless ring light (series view)

Rendered illustration: the actual product may differ in appearance.

Shadowless lights

Ø74 mm shadowless ring light (LS-SDL-0164)

Model LS-SDL-0164

  • ColourRed, Blue, White, Green, Infrared
  • Voltage24 VDC
  • Outer diameter74 mm
  • Inner diameter20 mm
$230.00

Ships in 3-4 weeks

2.0 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Ø74 mm shadowless ring light (LS-SDL-0164)LS-SDL-0164

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Shadowless ring light for glare-free light on shiny parts. Size Ø74 mm; 24 V DC supply; available in red, blue, white, green, infrared.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SDL-0164
Service lifeWhite:30,000hrs, Red: 60,000hrs (Depends on the operating environment, not a gurantee)
Pin assignment1: (+), 2: NC, 3: (-)

Interfaces and I/O

ConnectorSMR-03 V-B
Cable length500 mm

Light

WavelengthRed: 620-630 nm; Blue: 460-475 nm; Green: 520-530 nm
Colour temperature (white)6000-7500K

Environment and compliance

Operating environmentTemperature: 0~40 °C Humidity:20% to 85% RH (with no condensation)

Electrical

Supply voltage24 VDC

Mechanical

Outer diameter (mm)74
Inner diameter (mm)20
Housing materialAluminum alloy, Resin
Height (mm)18 mm
Shipping weight2.00 kg

Other models in the Shadowless ring lights (LS-SDL-S29) series

See all 5 models
ModelSize / key dataPriceAvailabilityLink
LS-SDL-0163 Ø48 mm from $220.00 Ships in 3-4 weeks View
LS-SDL-0165 Ø100 mm from $250.00 Ships in 3-4 weeks View
LS-SDL-0166 Ø120 mm from $270.00 Ships in 3-4 weeks View
LS-SDL-0167 Ø150 mm from $320.00 Ships in 3-4 weeks View
