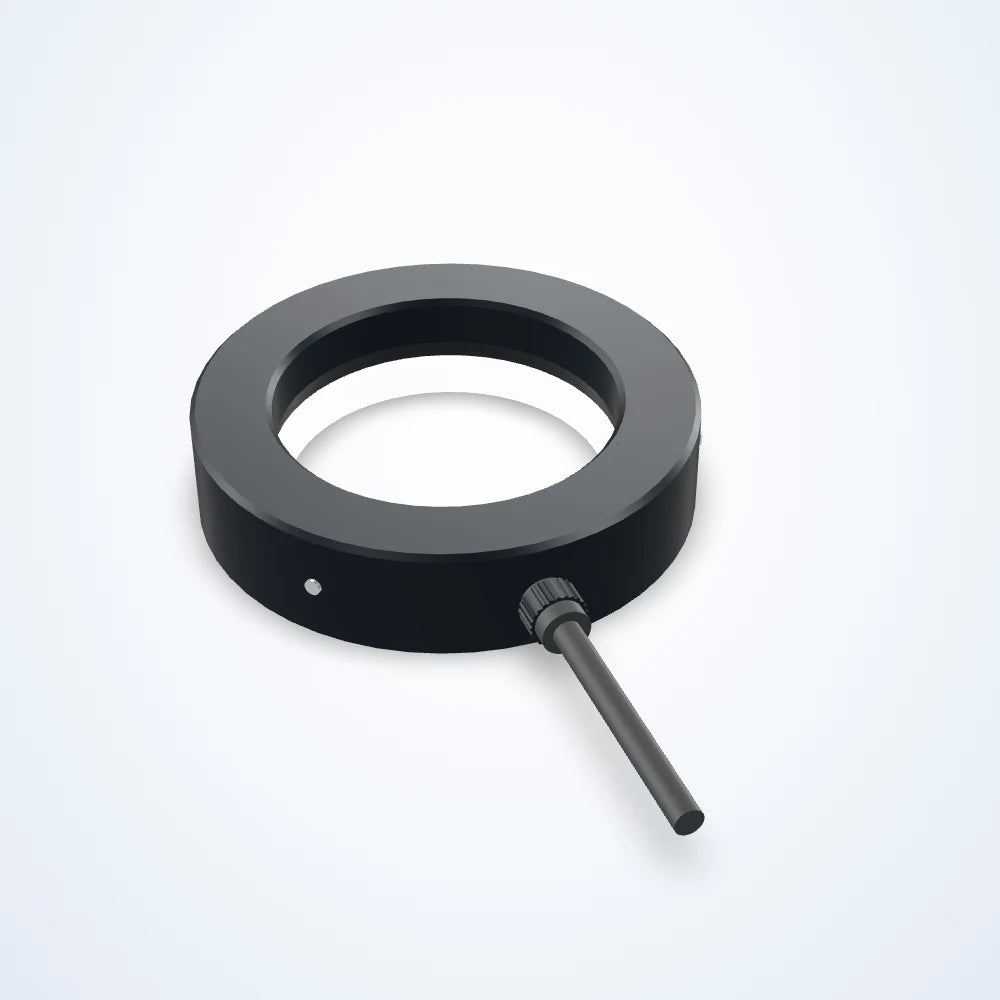

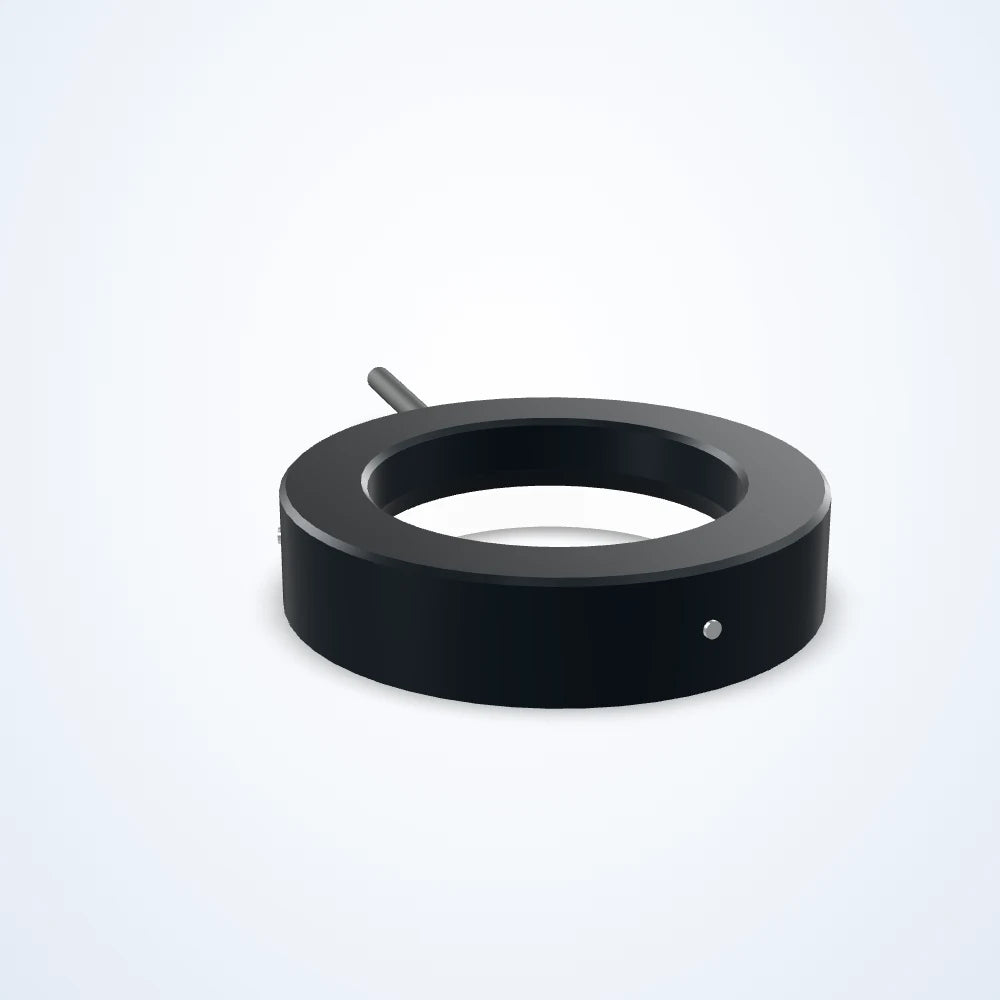

Low-angle shadowless ring light (series view)

Rendered illustration: the actual product may differ in appearance.

Shadowless lights

Ø136 mm low-angle shadowless ring light (LS-SDL-0160)

Model LS-SDL-0160

ColourRed, Blue, White, Green, Infrared, UV
Emitting areadia. 130 mm
Voltage24 VDC
Outer diameter136 mm

$280.00

Ships in 3-4 weeks

2.0 kg shipping weight

Color Red Blue White Green Infrared UV

Volume pricing, Net 30 terms or a formal quote for purchasing?

Low-angle shadowless ring light for glare-free light on shiny parts. Size Ø136 mm; 24 V DC supply; available in red, blue, white, green, infrared, UV.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-SDL-0160
Service life	White:30,000hrs, Red: 60,000hrs (Depends on the operating environment, not a gurantee)
Pin assignment	1: (+), 2: NC, 3: (-)

Interfaces and I/O

Connector	SMR-03 V-B
Cable length	500 mm

Light

Wavelength	Red: 620-630 nm; Blue: 460-475 nm; Green: 520-530 nm
Colour temperature (white)	6000-7500K
Emitting area (mm)	dia. 130 mm

Environment and compliance

Operating environment	Temperature: 0~40 °C Humidity: 20% to 85% RH (with no condensation)

Electrical

Supply voltage	24 VDC

Mechanical

Outer diameter (mm)	136
Inner diameter (mm)	109
Housing material	Aluminum alloy, Resin
Height (mm)	40 mm
Shipping weight	2.00 kg

Other models in the Low-angle shadowless ring lights (LS-SDL-S28) series

See all 5 models

Model	Size / key data	Price	Availability	Link
LS-SDL-0158	Ø88 mm	from $215.00	Ships in 3-4 weeks	View
LS-SDL-0159	Ø100 mm	from $225.00	Ships in 3-4 weeks	View
LS-SDL-0161	Ø180 mm	from $360.00	Ships in 3-4 weeks	View
LS-SDL-0162	Ø250 mm	from $540.00	Ships in 3-4 weeks	View
