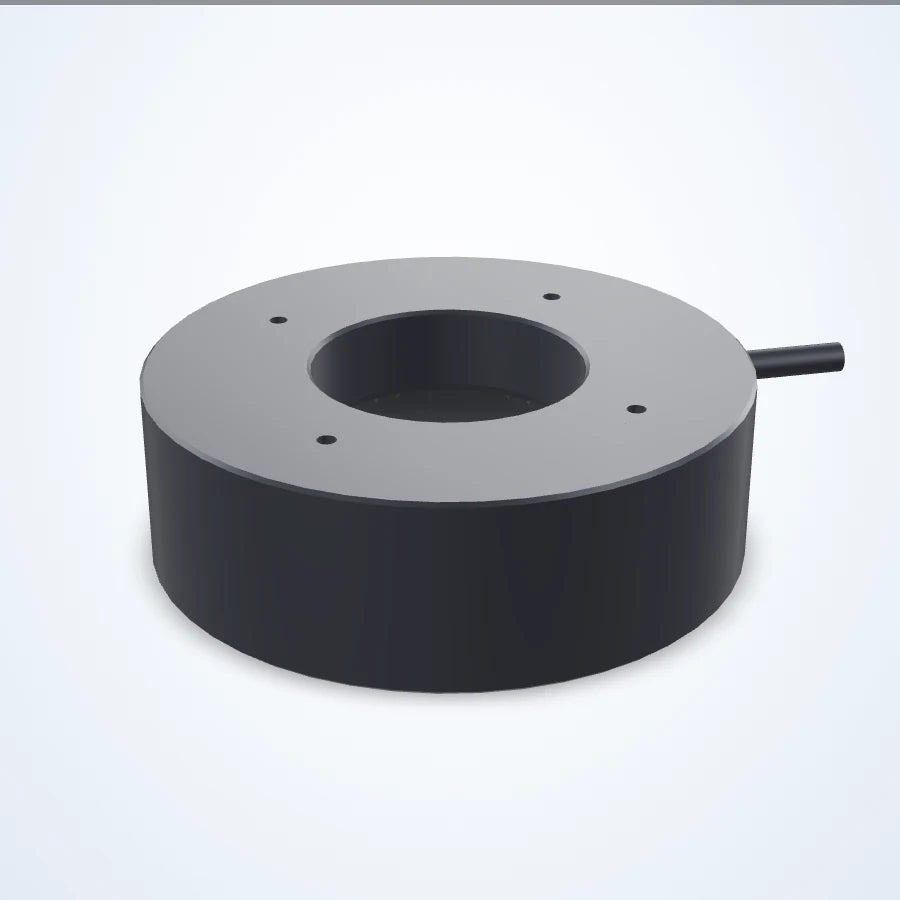

  • LS-SDL-0148 3D render

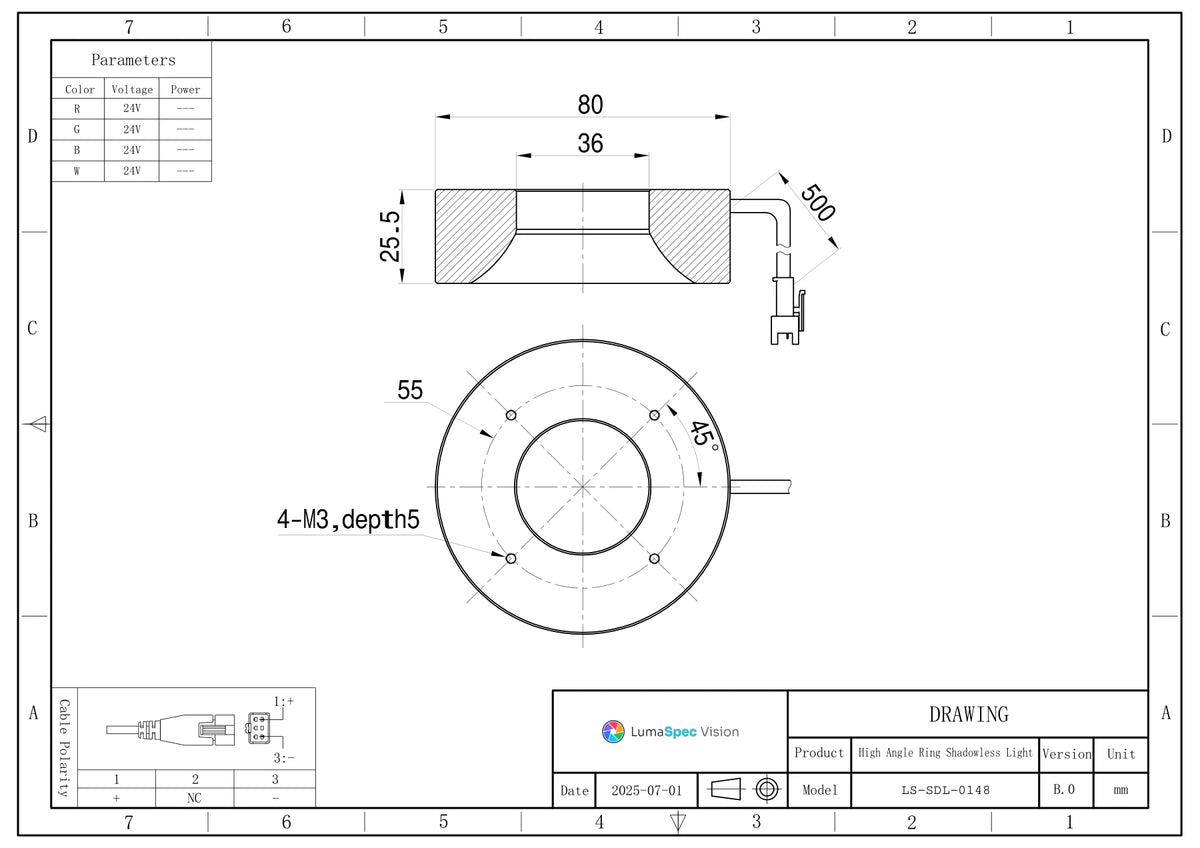

  • LS-SDL-0148 dimensions (mm)

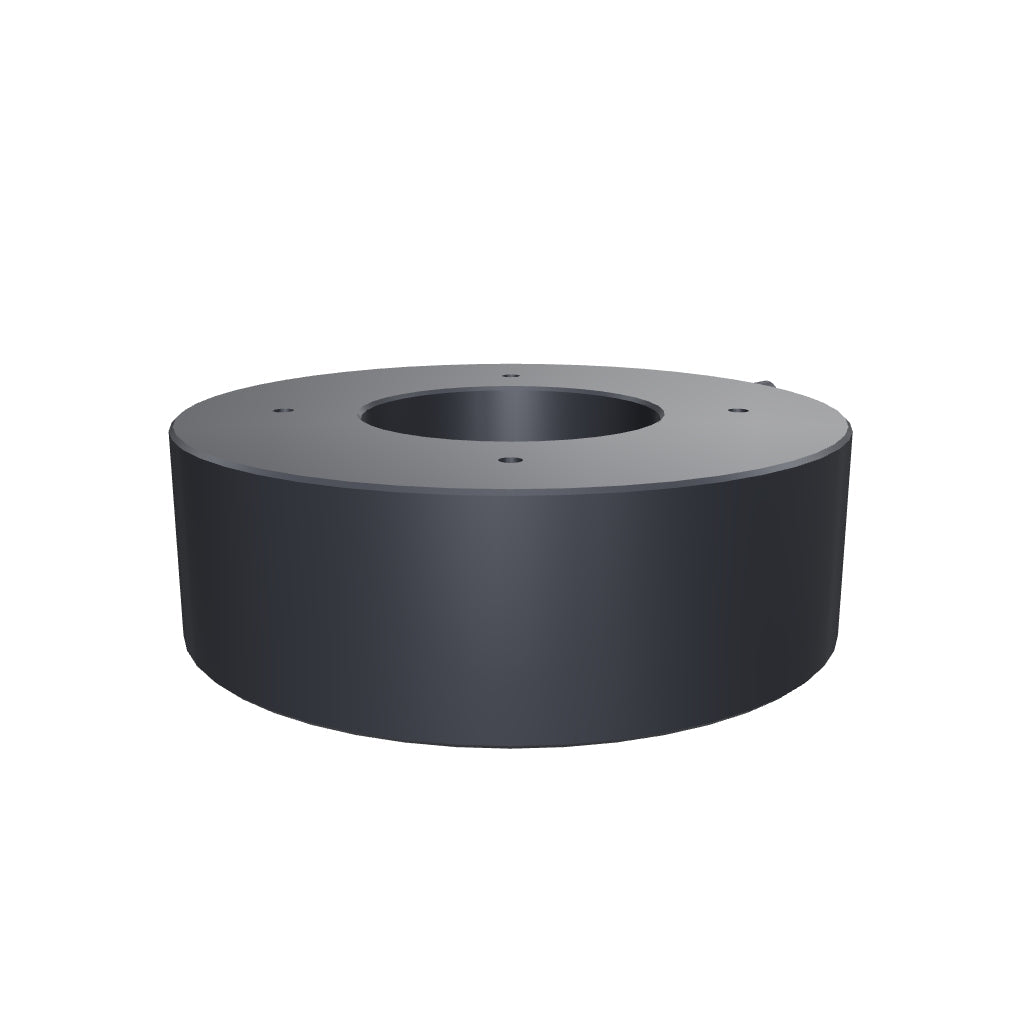

  • LS-SDL-0148 3D model

Shadowless lights

80 mm OD High-Angle Ring Shadowless Light (LS-SDL-0148)

Model LS-SDL-0148

  • ColourRed, Green, Blue, White
  • Voltage24 V
  • Power6.3 W
  • Power R3.5 W
$299.00

Ships in 2-3 weeks

0.25 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

80 mm OD High-Angle Ring Shadowless Light (LS-SDL-0148)LS-SDL-0148

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

80 mm OD High-Angle Ring Shadowless Light. High angle ring shadowless light giving high-brightness, high-uniformity shadowless illumination through a special structure that fully diffuses the LED light. Changing the distance to the object does not alter the uniformity of the illuminated area.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SDL-0148
OD x ID x H (mm)80x36x25.5

Interfaces and I/O

Cable lead (mm, per drawings)500

Light

ColoursRed, Green, Blue, White

Electrical

Voltage (V)24
Power R (W)3.5
Power W/B/G (W)6.3

Mechanical

Shipping weight (estimated)0.25 kg

Mounting and drawing data

2SHR variant listed in the SHR table; drawing: 4-M3 depth 5 on dia 55

LS-SDL-0148

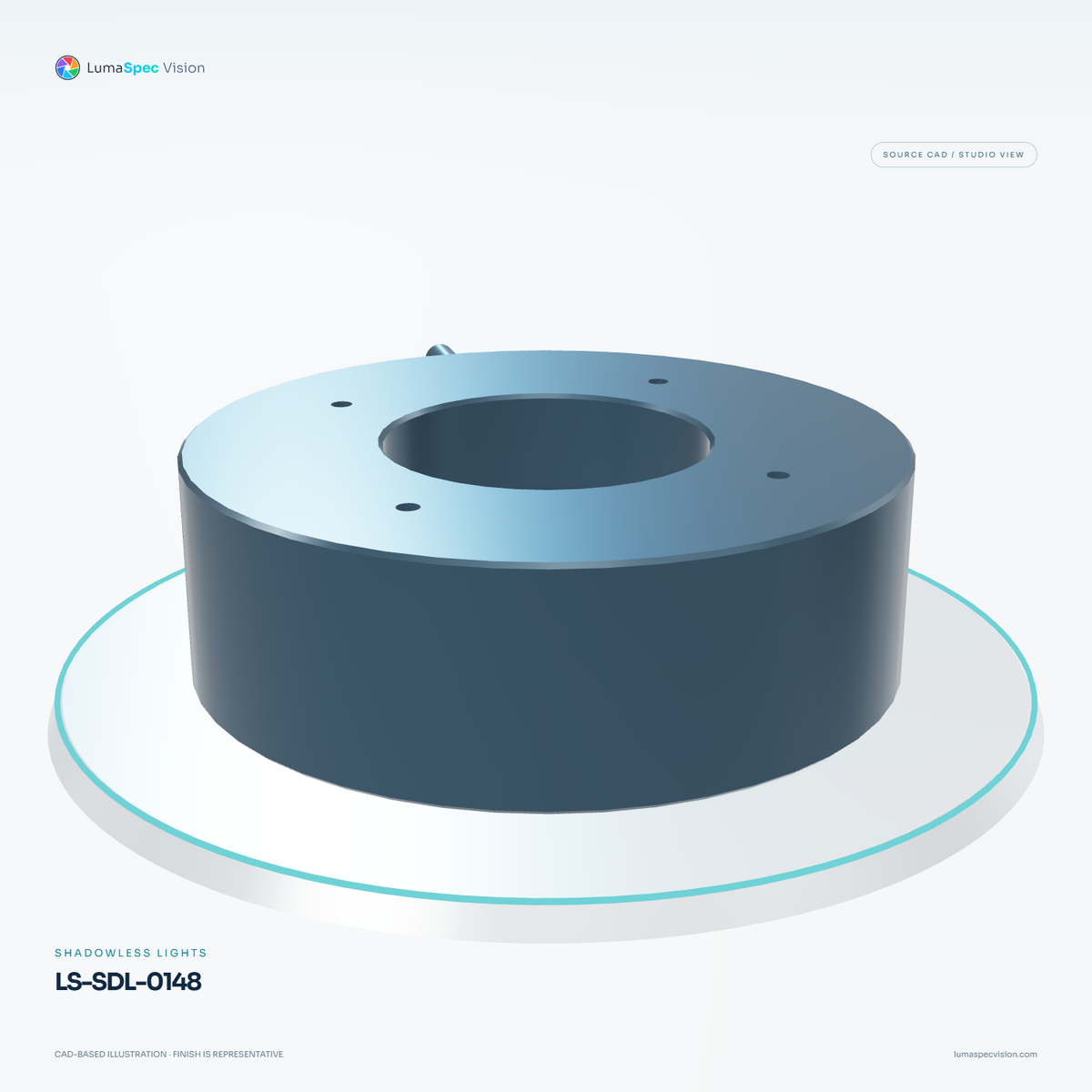

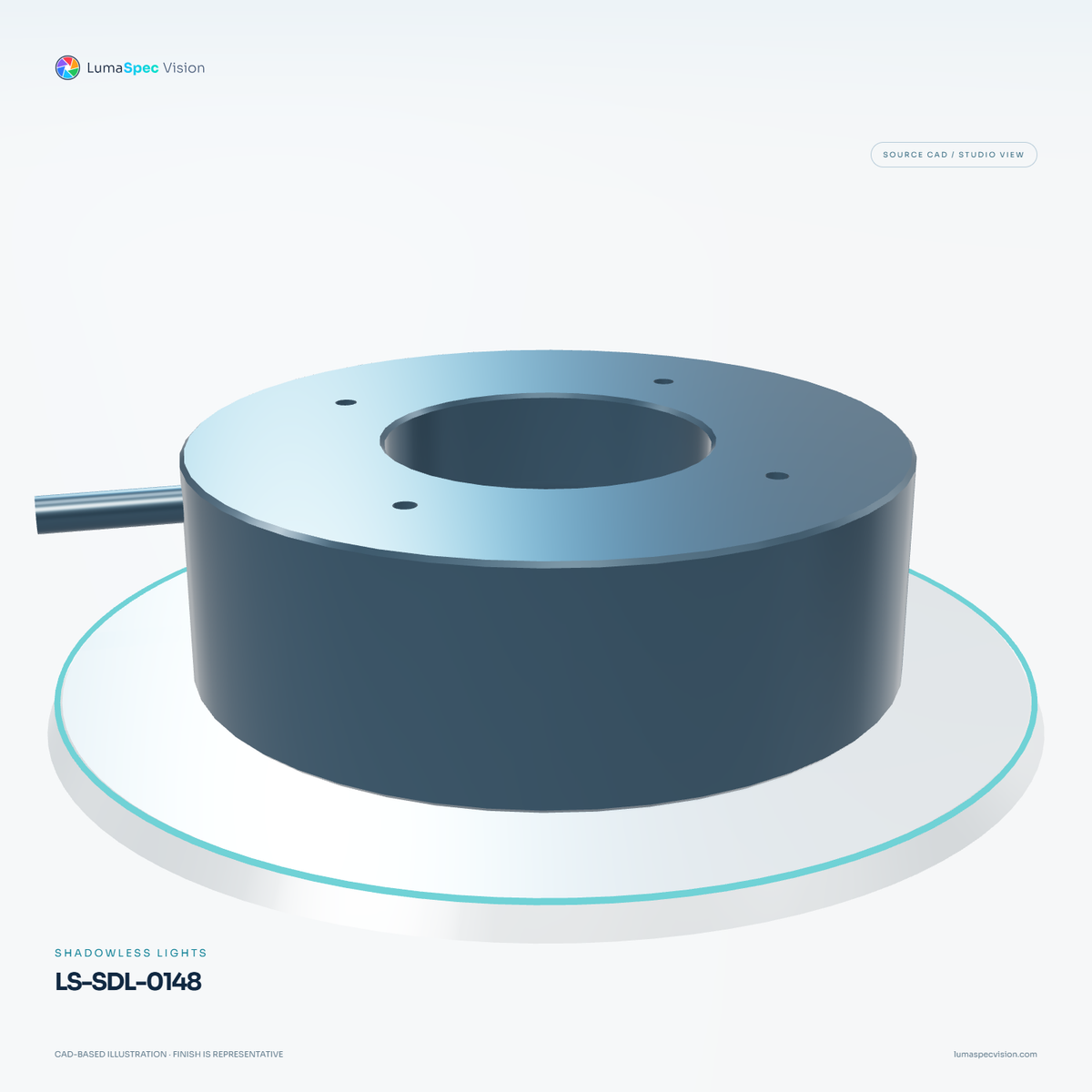

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library

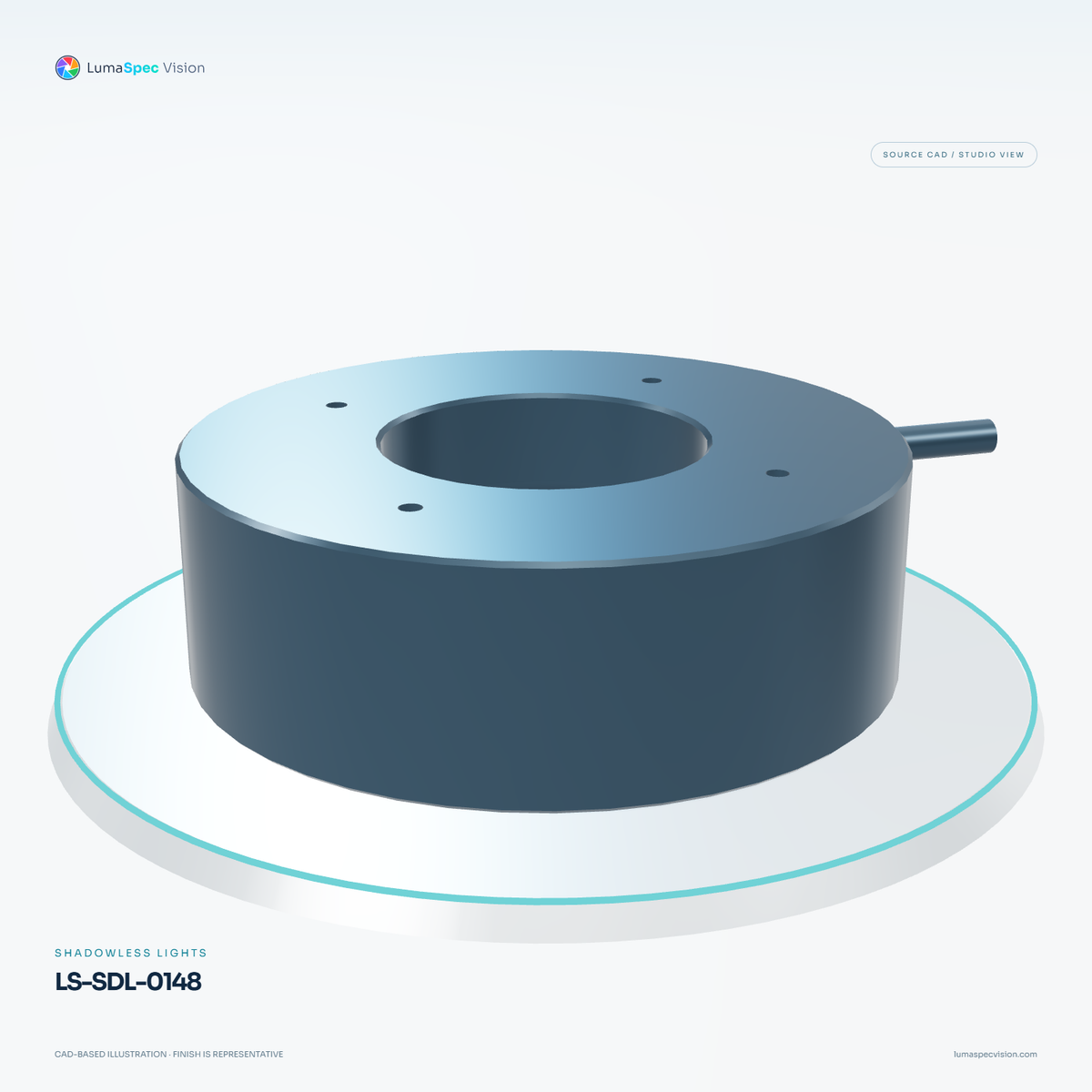

LS-SDL-0148 — Shadowless lights, View 1 Source CAD

FROM THE PRINTED SPECIFICATIONS

OD x ID x H (mm)
80x36x25.5
Voltage (V)
24
Power R (W)
3.5
Power W/B/G (W)
6.3

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
