Shadowless lights

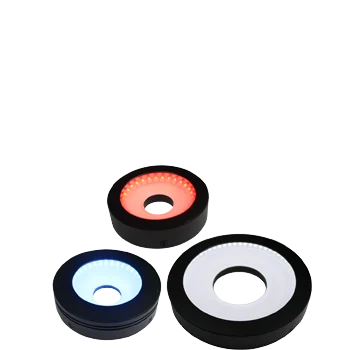

Flat Shadowless Light, 160 mm dia., White (LS-SDL-0132)

Model LS-SDL-0132

ColourWhite
Emitting areaΦ132 mm
SizeΦ160 mm × 19.5 mm
Power6.5 W

$629.00

Ships in 2-3 weeks

0.66 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Flat Shadowless Light, 160 mm dia., White. Simple, compact structure, easy to install Special diffuser plate produces uniform high-angle lighting

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-SDL-0132

Interfaces and I/O

Connector type	SMR-03V-B
Cable length	500 mm

Light

Color	White
Color temperature	6000~7000K
LED rows	1
Emitting area dimension	Φ132 mm
Diffuse plate included	Included

Environment and compliance

Humidity	20% to 85% RH (non-condensing)
Temperature	Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)

Electrical

Power	6.5 W
Supply voltage (derived)	24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V

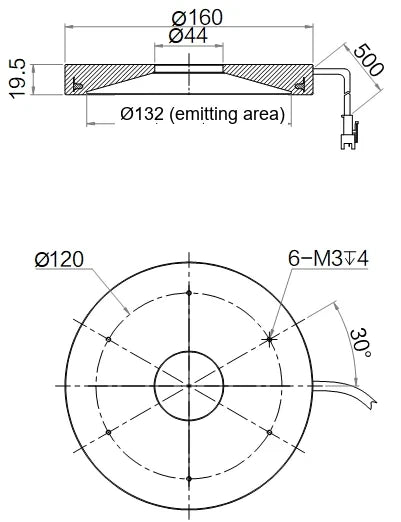

Mechanical

Dimension	Φ160 mm × 19.5 mm
Outer dimension	Φ160 mm
Bore dimension	Φ44 mm
Shipping weight (estimated)	0.66 kg

Other models in the Flat shadowless lights (LS-SDL-S22) series

See all 4 models

Model	Size / key data	Price	Availability	Link
LS-SDL-0129	116 mm dia., Red	$429.00	Ships in 2-3 weeks	View
LS-SDL-0130	116 mm dia., White	$429.00	Ships in 2-3 weeks	View
LS-SDL-0131	160 mm dia., Red	$629.00 Quote	Ships in 2-3 weeks	View
