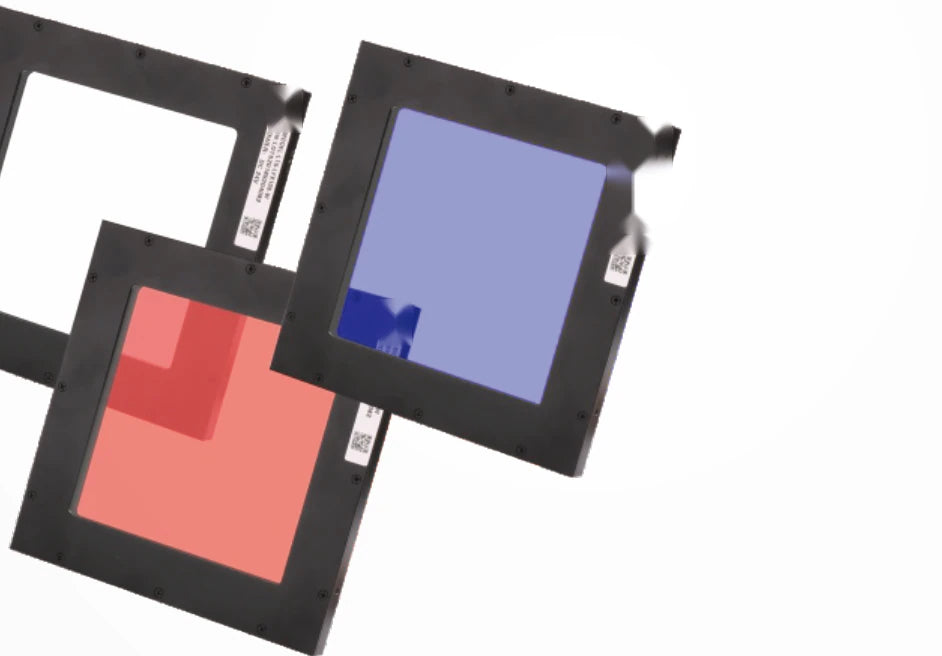

Representative photo of this series
Shadowless lights
150 x 150 mm Flat shadowless light (LS-SDL-0128)
Model LS-SDL-0128
- ColourRed, Green, Blue, White
- Emitting area150 x 150 mm
- Voltage24 V
- Min. size145 mm x 145 mm
$589.00
Ships in 2-3 weeks
0.9 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Flat shadowless light with both coaxial and shadowless lighting effect, high light transmission and high uniformity; compact and easy to install. It gives the same effect as a coaxial + dome combined light in a more compact volume.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SDL-0128 |
|---|---|
| FOV | 70~100 mm |
Optics
| Recommended working distance | 40~150 mm |
|---|
Interfaces and I/O
| Cable length | 500 mm |
|---|---|
| Extension cable options | PVC extension cable (high flexibility, bending and high-temperature resistant, for use inside equipment); high-flexibility extension cable (harder, more abrasion resistant, for drag-chain production lines) |
Light
| Colour temperature of white | 6600 K |
|---|---|
| Emitting surface (mm) | 150 x 150 |
Environment and compliance
| Operating temperature | 0-50 °C |
|---|---|
| Operating humidity | 20-85% (non-condensing) |
| Lifespan | 50000 h (to 50% of factory default luminance) |
Electrical
| Voltage | 24 V |
|---|---|
| Adapted controllers | Strobe controller, analog controller, digital controller |
| Power (R) | 11.5W |
| Power (G/B/W) | 17.3W |
Mechanical

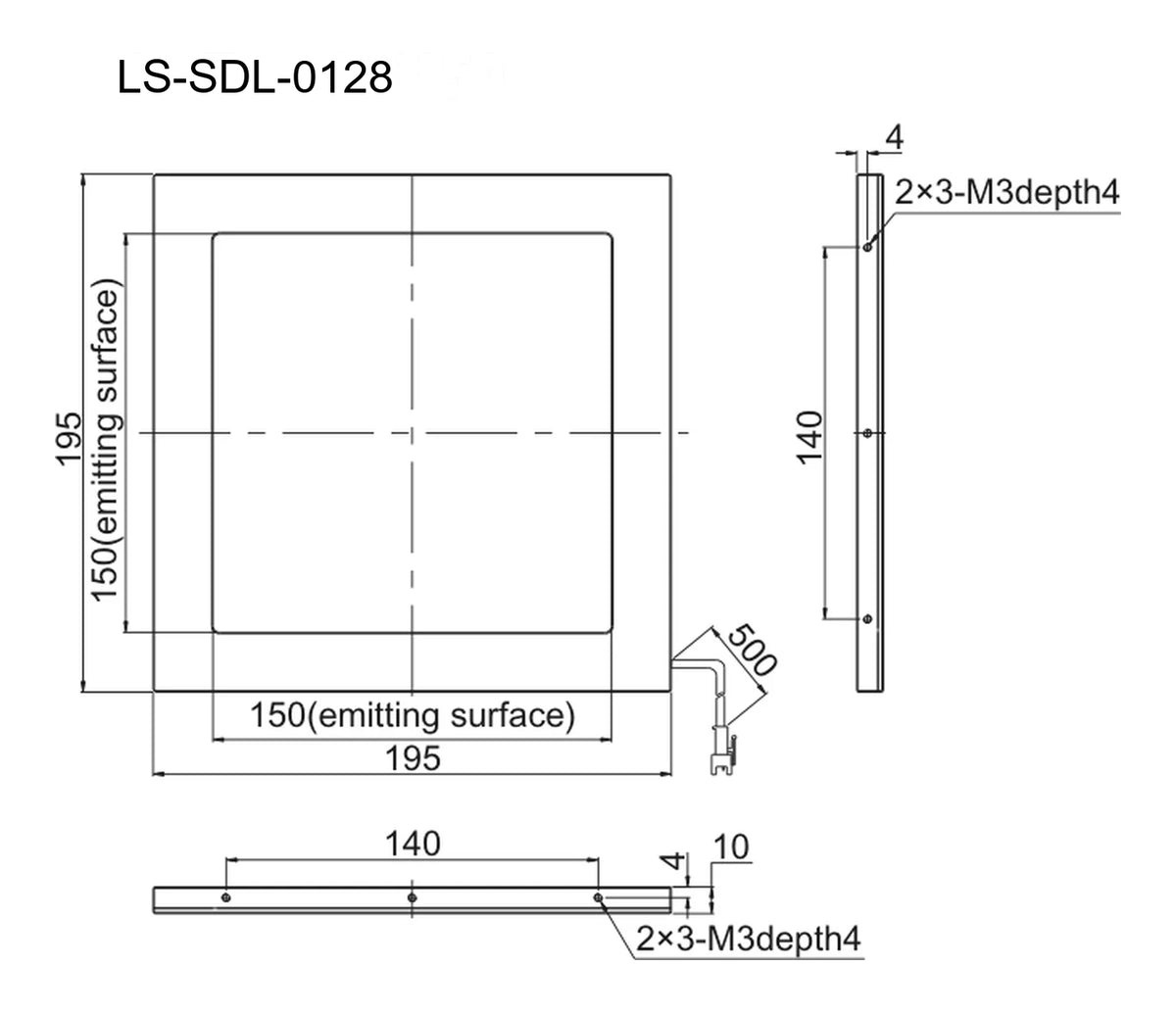

| Min. size | 145 mm x 145 mm |
|---|---|
| Max. size | 195 mm x 195 mm |
| Weight | 620 g |
Other models in the Flat shadowless light (LS-SDL-S21) series
See the category| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SDL-0127 | 100 x 100 mm | $389.00 | Ships in 2-3 weeks | View |
