Representative photo of this series

Shadowless lights

Flat shadowless light, Ø60 mm (LS-SDL-0119)

Model LS-SDL-0119

ColourRed, Green, Blue, White
Voltage24 V
Power2.2W/2.9W
Min. diameterdia. 60

$179.00

In stock - ships the same business day (5 available, order by 2 PM ET)

0.25 kg shipping weight

Color Red Green Blue White

Volume pricing, Net 30 terms or a formal quote for purchasing?

The LEDs are horizontally arranged on a flexible PCB and the object is illuminated evenly by reflecting, which can enhance the surface features (such as laser marking and etching) and the contrast of surface defects.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-SDL-0119
FOV	1~150 mm
Note	UV & IR light can be customized as required.

Optics

Recommended working distance	10~100 mm

Interfaces and I/O

Cable length	500 mm
Extension cable options	PVC extension cable (high flexibility, bending and high-temperature resistant, for use inside equipment); high-flexibility extension cable (harder, more abrasion resistant, for drag-chain production lines)
Cable polarity	1: +, 2: NC, 3: -

Light

Colour temperature of white	6600 K
LED colour	R(red)/W(white)

Environment and compliance

Operating temperature	0-50 °C
Operating humidity	20-85% (non-condensing)
Lifespan	50000 h (to 50% of factory default luminance)

Electrical

Voltage	24 V
Adapted controllers	Strobe controller, analog controller, digital controller
Power (R)	1.4W
Power (G/B/W)	2.4W
Power	2.2W/2.9W
Input voltage	DC 24V (max)

Mechanical

Min. diameter	dia. 60
Max. diameter	dia. 180
Weight	81 g

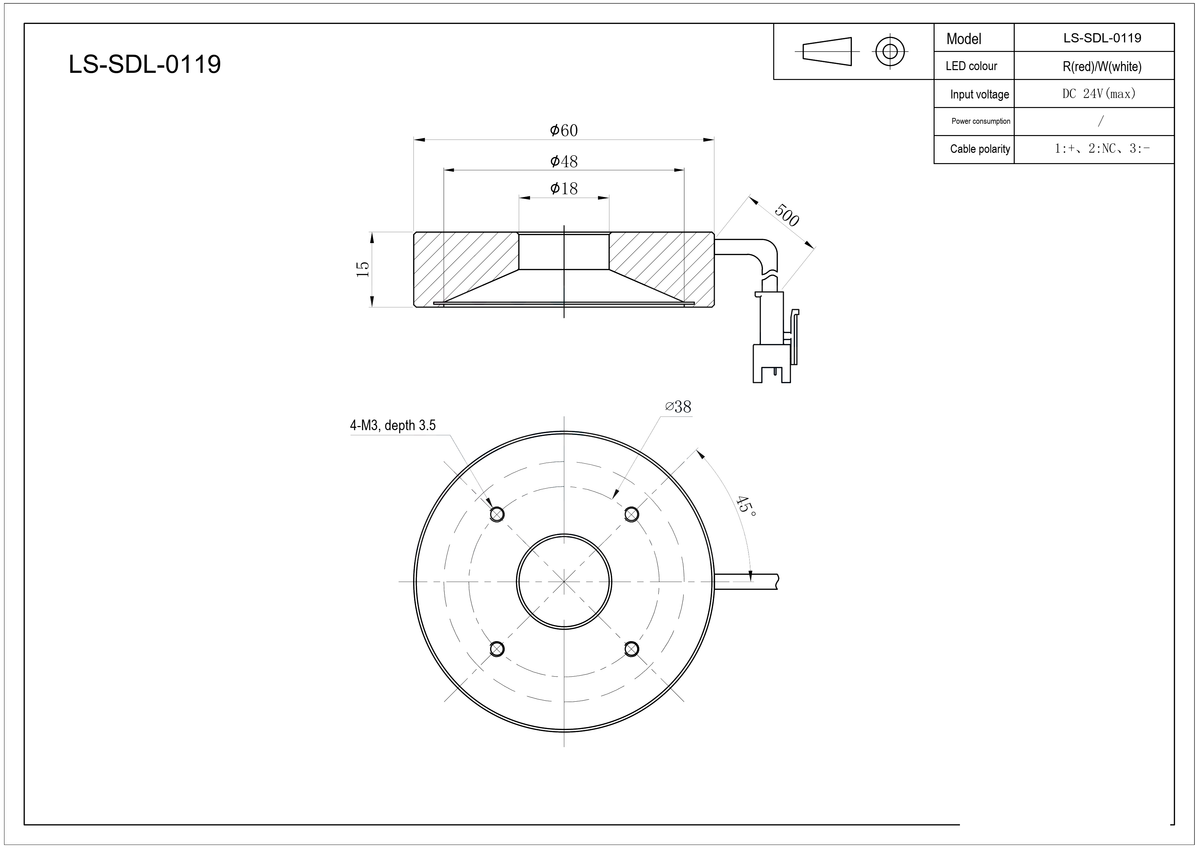

Dimension	Outer dia. 60mm,Inner dia. 18mm,Height 15mm
Mounting holes	4-M3 depth 3.5

Downloads

Datasheet (PDF)LS-SDL-0119 · 2.4 MB

Features

LEDs mounted horizontally, fastened to the light side
Luminance can replace a ring light, with a more uniform effect
Shadowless, low-angle lighting system
Wire jacket covers the cable exit, anti-pull
Customizable: Outer & inner diameter, Colour & colour temperature, Cable length, Installation method
UV & IR versions can be customized as required
LED horizontal direction, fasten to light side
Luminance can replace the ring light, to reach

Applications

Date code inspection on food packaging
Inspection of highly reflective surfaces of workpieces
Precision component boundary dimension inspection
Imaging example: stitch flatness inspection on electronics (LS-SDL-0121-W), whitens the surface then locates
The inspection of date on the food packing
The highlight or reflect surface of workpiece inspection
IPA precision components boundary dimension inspection
