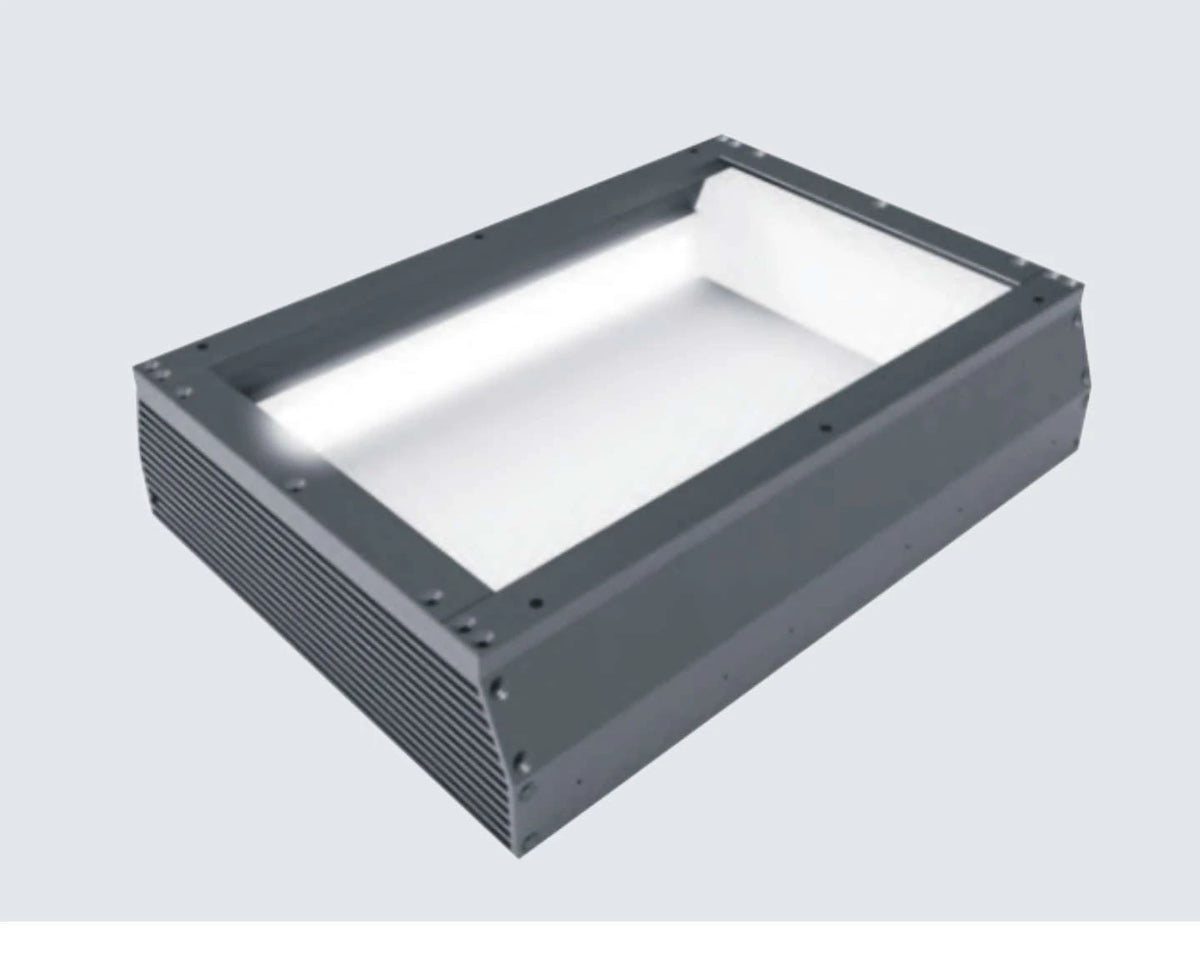

Representative photo of this series
Shadowless lights
123 x 93 mm Four-sided shadowless light (LS-SDL-0116)
Model LS-SDL-0116
- ColourRed, Green, Blue, White
- Emitting area123 x 93 mm
- Voltage24 V
- Cable length500 mm
$459.00
Ships in 2-3 weeks
0.9 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Uses a unique illumination structure: LED light is diffused evenly by special optical material while a flexible circuit board fixes the illumination angle at 90 degrees; after refraction it lights the target area efficiently and evenly. Suited to large objects.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SDL-0116 |
|---|---|
| Expected life | Red, white, blue and green: 30000 h continuous, decays to 40% (typical one-year decay 5-10%) |
| Support | 1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Emitting area (mm) | 123 x 93 |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 525 nm |
| Wavelength blue | 470 nm |
| Colour temperature white | 5000-8000 K |
Environment and compliance
| Operating environment | Ambient about 25 °C, operating temperature within 35 °C |
|---|
Electrical
| Power, green / blue / white (W) | 10 |
|---|---|
| Power, red (W) | 10 |
| Recommended controller | LS-CTL-0333, -4T, -6T, -8T |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-0333 |

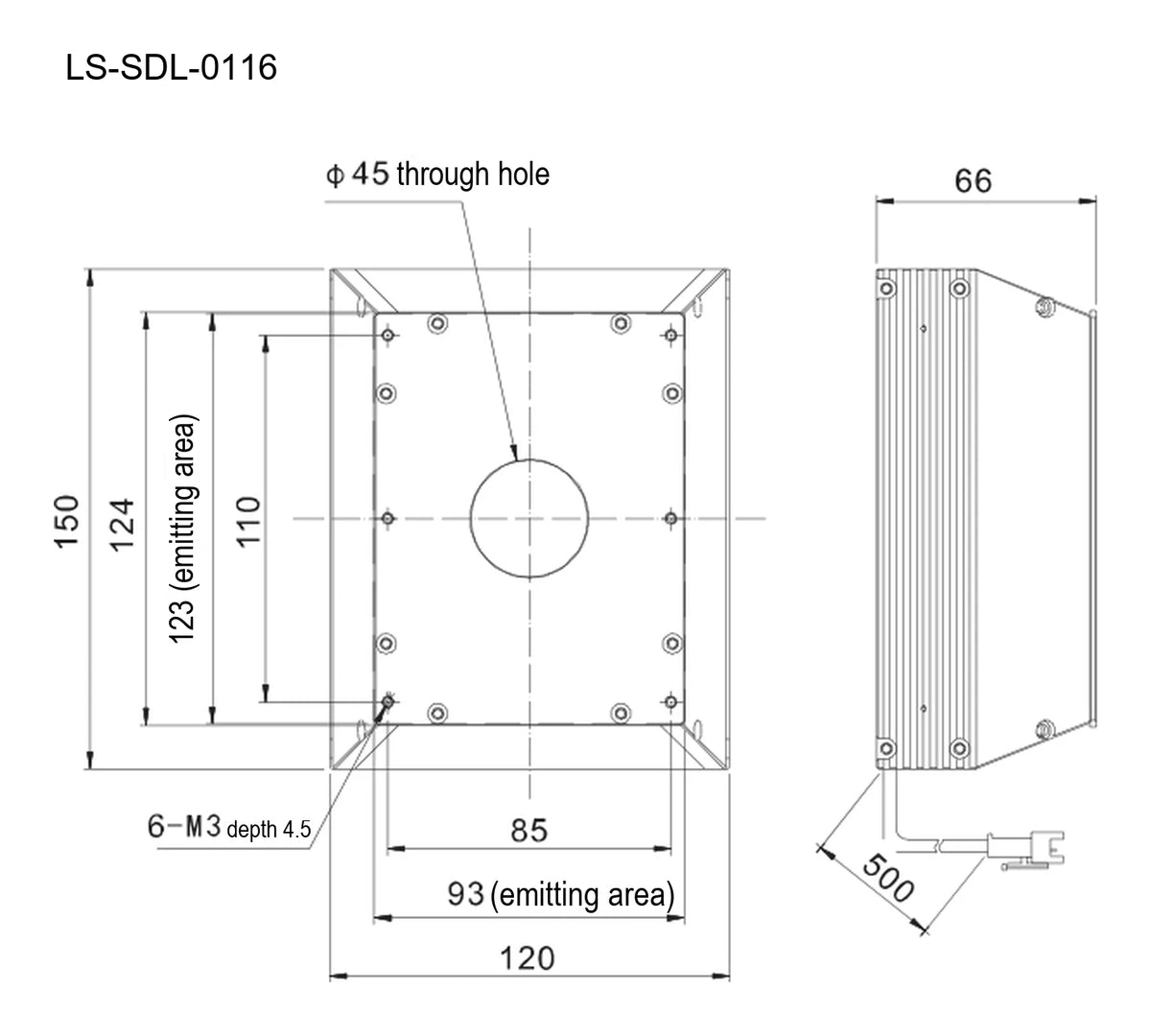

Mechanical
| Size (mm) | L 150 x W 120 |
|---|---|
| Shipping weight | 0.90 kg |
Other models in the Four-sided shadowless light (LS-SDL-S19) series
See all 3 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SDL-0117 | 300 x 220 mm | $1,529.00 | Ships in 2-3 weeks | View |
| LS-SDL-0118 | 410 x 200 mm | $2,509.00 | Ships in 2-3 weeks | View |
