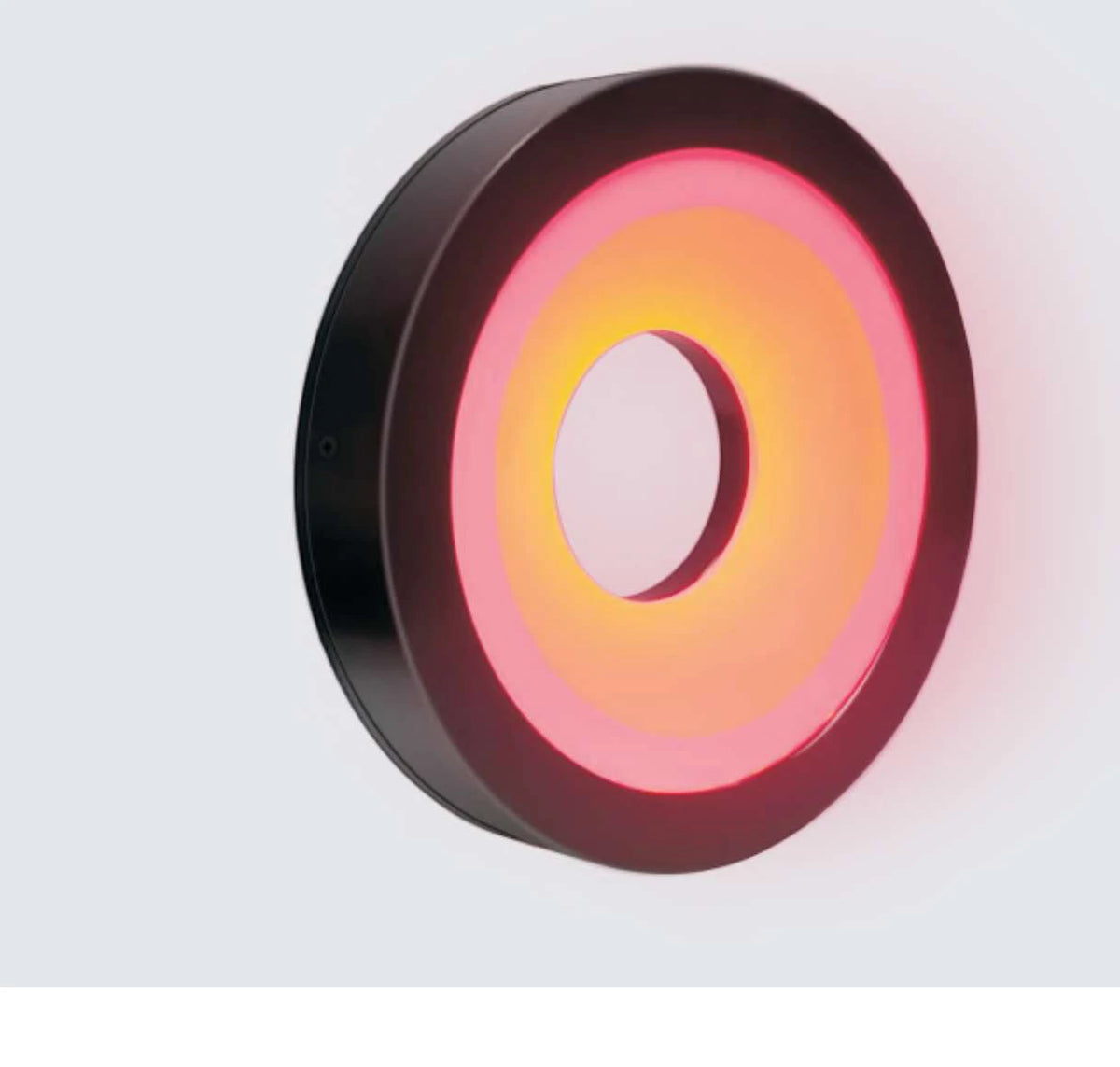

Representative photo of this series
Shadowless lights
Flat shadowless light, outer diameter 100 mm (LS-SDL-0091)
Model LS-SDL-0091
- ColourRed, Green, Blue, White
- Voltage24 V
- Recommended controllersLS-CTL-0508, -2T / LS-CTL-0140, -2T
- Cable length500 mm
$359.00
Ships in 2-3 weeks
0.25 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
LEDs are densely arranged around the edge of a diffuser plate, so the emitted light is guided efficiently into the plate; a reflective film on the plate surface refracts and reflects it, producing very even, omnidirectional illumination.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SDL-0091 |
|---|---|
| Expected life | Red and white: 30000 h continuous, decays to 50% (typical one-year decay 8-15%); blue and green: 30000 h continuous, decays to 60% (typical one-year decay 10-18%) |
| Support | 1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Wavelength red | 620-630 nm |
|---|---|
| Wavelength green | 525 nm |
| Wavelength blue | 470 nm |
| Colour temperature white | 5000-8000 K |
Environment and compliance
| Operating environment | Ambient about 25 °C, operating temperature within 35 °C |
|---|
Electrical
| Recommended controllers | LS-CTL-0508, -2T / LS-CTL-0140, -2T |
|---|---|
| Power, green / blue / white (W) | 6.0 |
| Power, red (W) | 6.0 |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-0508, LS-CTL-0140 |

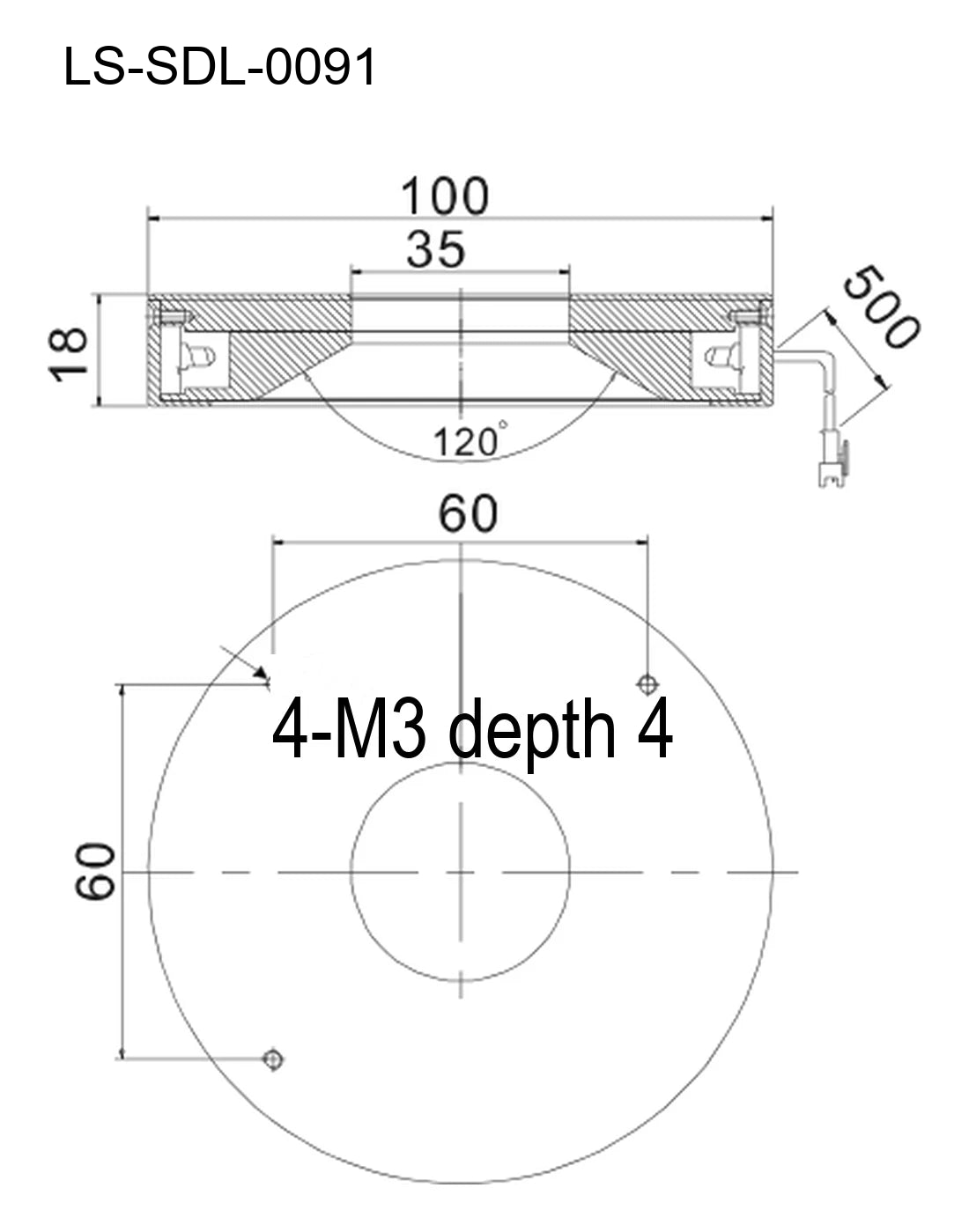

Mechanical
| Outer diameter (mm) | 100 |
|---|---|
| Inner diameter (mm) | 35 |
| Height (mm) | 18 |
| Shipping weight | 0.25 kg |
Other models in the Flat shadowless light (LS-SDL-S15) series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SDL-0090 | Red, Green, Blue, White · 24 V | $259.00 | Ships in 2-3 weeks | View |
| LS-SDL-0092 | Red, Green, Blue, White · 24 V | $419.00 | Ships in 2-3 weeks | View |
| LS-SDL-0093 | Red, Green, Blue, White · 24 V | $429.00 | Ships in 2-3 weeks | View |
