Representative photo of this series
Shadowless lights
188 x 112 mm Square shadowless light (LS-SDL-0089)
Model LS-SDL-0089
- ColourRed, Green, Blue, White
- Emitting area188 x 112 mm
- Power13 W
- Voltage24 V
$779.00
Ships in 2-3 weeks
0.85 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Uses a unique illumination structure: LED light is diffused evenly by special optical material while a flexible circuit board fixes the illumination angle at 90 degrees; after refraction it lights the object evenly and efficiently. Mainly for objects needing balanced surface lighting where reflections and glare must be avoided.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SDL-0089 |
|---|---|
| Expected life | Red and white: 30000 h continuous, decays to 50% (typical one-year decay 8-15%); blue and green: 30000 h continuous, decays to 60% (typical one-year decay 10-18%) |
| Support | 1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Emitting area (mm) | 188 x 112 |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 525 nm |
| Wavelength blue | 470 nm |
| Colour temperature white | 5000-8000 K |
Environment and compliance
| Operating environment | Ambient about 25 °C, operating temperature within 35 °C |
|---|
Electrical
| Recommended controllers | LS-CTL-0508, -2T / LS-CTL-0140, -2T |
|---|---|
| Power (W) | 13 |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-0508, LS-CTL-0140 |
Mechanical

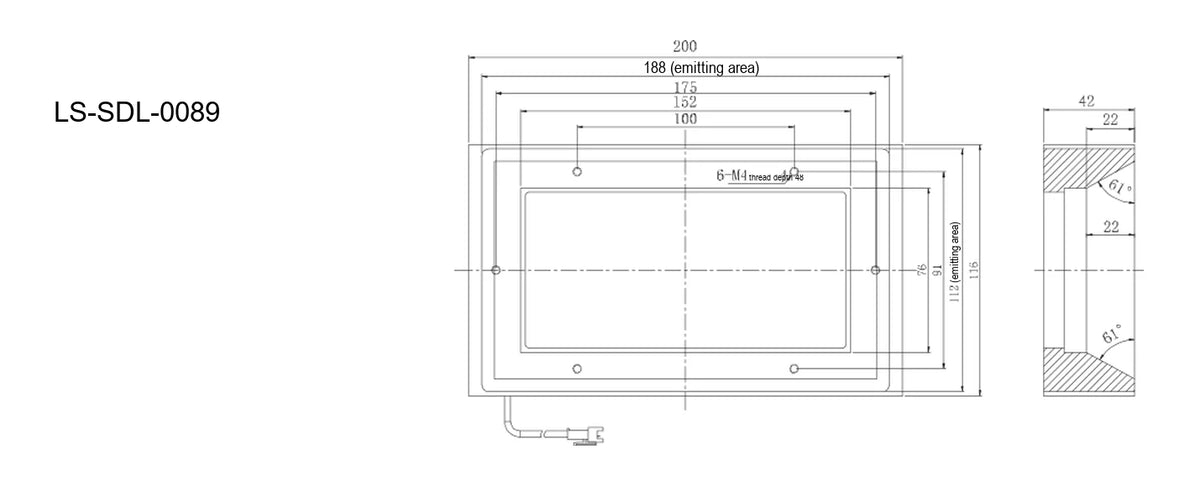

| Mounting | 4-M3 threads, depth 4 (per drawing) |
|---|---|
| Shipping weight | 0.85 kg |
Other models in the Square shadowless light (LS-SDL-S14) series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SDL-0086 | 36 x 36 mm | $149.00 | Ships in 2-3 weeks | View |
| LS-SDL-0087 | 84 x 84 mm | $389.00 | Ships in 2-3 weeks | View |
| LS-SDL-0088 | 108 x 108 mm | $429.00 | Ships in 2-3 weeks | View |
