Square shadowless light (LS-SDL-S07)
  • Square shadowless light (LS-SDL-S07)
  • LS-SDL-0034 dimensions (mm)

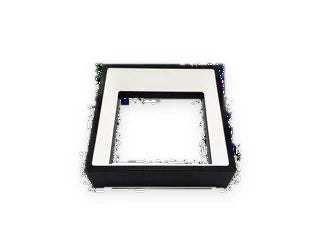

Representative photo of this series

Shadowless lights

50 mm dia. square shadowless light, inner diameter 50 mm (LS-SDL-0035)

Model LS-SDL-0035

  • ColourRed, Green, Blue, White, Infrared, UV
  • Voltage24 V DC (12 V on request)
  • Number of lamp rows4
  • Outer diameter50 mm
$189.00

In stock - ships the same business day (5 available, order by 2 PM ET)

0.5 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

50 mm dia. square shadowless light, inner diameter 50 mm (LS-SDL-0035)LS-SDL-0035

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Higher uniformity; a special diffuser plate achieves a shadowless irradiation effect.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SDL-0035
Product nameRing-Shadowless Light
Number of lamp rows4

Interfaces and I/O

Cable length (mm)500

Electrical

Voltage24 V DC (12 V on request)
Power red (W)3
Power white/blue/green (W)3.5

Mechanical

Outer diameter (mm)50
Inner diameter (mm)50
Height (mm)40
Mounting4 x M3 threaded, depth 4
Shipping weight0.50 kg

Other models in the Square shadowless light (LS-SDL-S07) series

See all 9 models
ModelSize / key dataPriceAvailabilityLink
LS-SDL-0034 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $169.00 15 in stock View
LS-SDL-0036 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $359.00 19 in stock View
LS-SDL-0038 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $359.00 25 in stock View
LS-SDL-0040 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $449.00 27 in stock View
LS-SDL-0037 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $599.00 20 in stock View
LS-SDL-0039 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $1,079.00 23 in stock View
LS-SDL-0042 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $1,499.00 26 in stock View
LS-SDL-0041 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $2,369.00 20 in stock View
