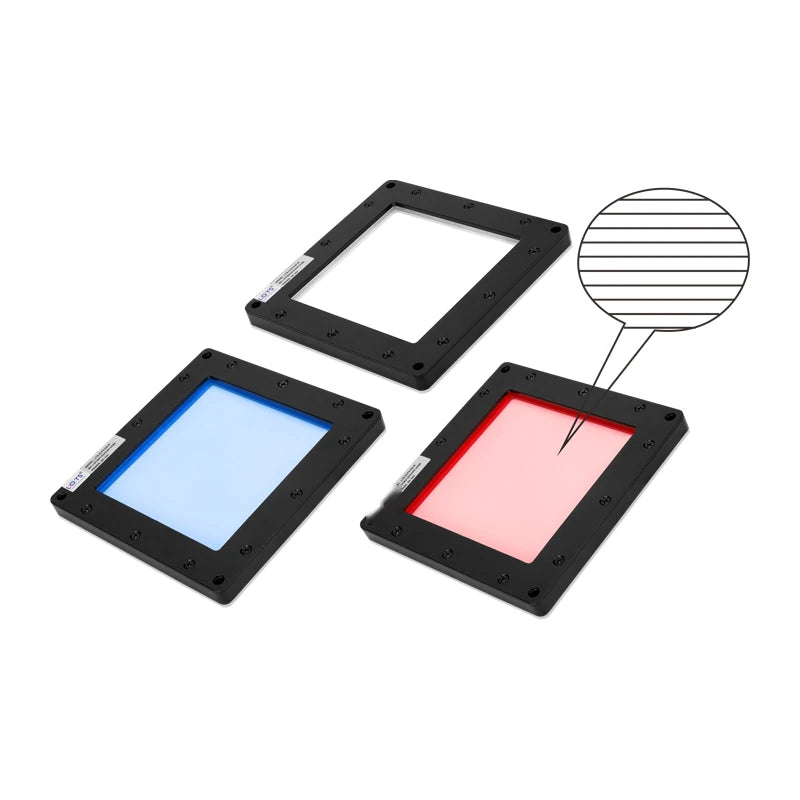

Representative photo of this series
Shadowless lights
Striped shadowless light, 190 x 190 x 11.5 mm (LS-SDL-0018)
Model LS-SDL-0018
- ColourRed, Blue, Green, White
- Emitting area150 x 150 mm
- SizeL190xW190xH11.5(mm)
- Voltage24V
- Power25.0W/31.0W
$779.00
Ships in 2-3 weeks
0.45 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
The brightness has increased by more than 30%. There are no diffraction shadows, and the uniformity is better. The stripes are finer and sharper, meeting the requirements of higher detection accuracy.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SDL-0018 |
|---|---|
| Note | UV & IR light can be customized as required. |
Interfaces and I/O

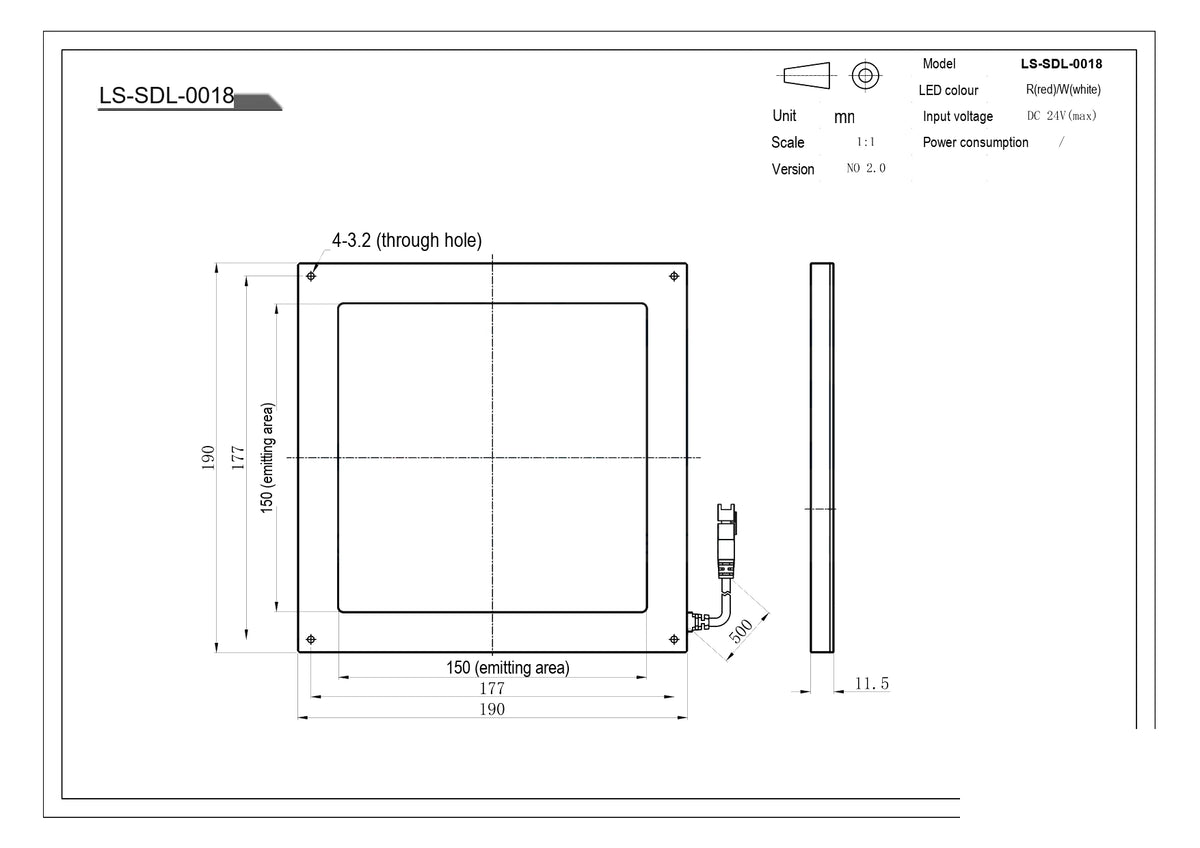

| Cable (mm) | 500 (drawing) |
|---|
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting surface (mm) | 150 x 150 |
Electrical
| Voltage | 24V |
|---|---|
| Power | 25.0W/31.0W |
| Input voltage | DC 24V (max) |
Mechanical
| Dimension | L190xW190xH11.5(mm) |
|---|---|
| Shipping weight | 0.45 kg |
Other models in the Striped shadowless light (LS-SDL-S03) series
See the category| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SDL-0017 | Red, Blue, Green, White · 100 x 100 mm | $539.00 | Ships in 2-3 weeks | View |
