Representative photo of this series
Shadowless lights
Ring shadowless light, Ø91 mm (LS-SDL-0012)
Model LS-SDL-0012
- ColourRed, Blue, Green, White
- Voltage24V
- Power9.0W/10.8W
- LED colourR(red)/W(white)
$249.00
Ships in 2-3 weeks
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Emitting light can be effectively utilized by using special diffuser, to realize high brightness and uniformity.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SDL-0012 |
|---|---|
| Note | UV & IR light can be customized as required. |
Interfaces and I/O
| Cable polarity | 1: +, 2: NC, 3: - |
|---|---|
| Cable (mm) | 500 (drawing) |
Light
| LED colour | R(red)/W(white) |
|---|
Electrical
| Voltage | 24V |
|---|---|
| Power | 9.0W/10.8W |
| Input voltage | DC 24V (max) |
Mechanical

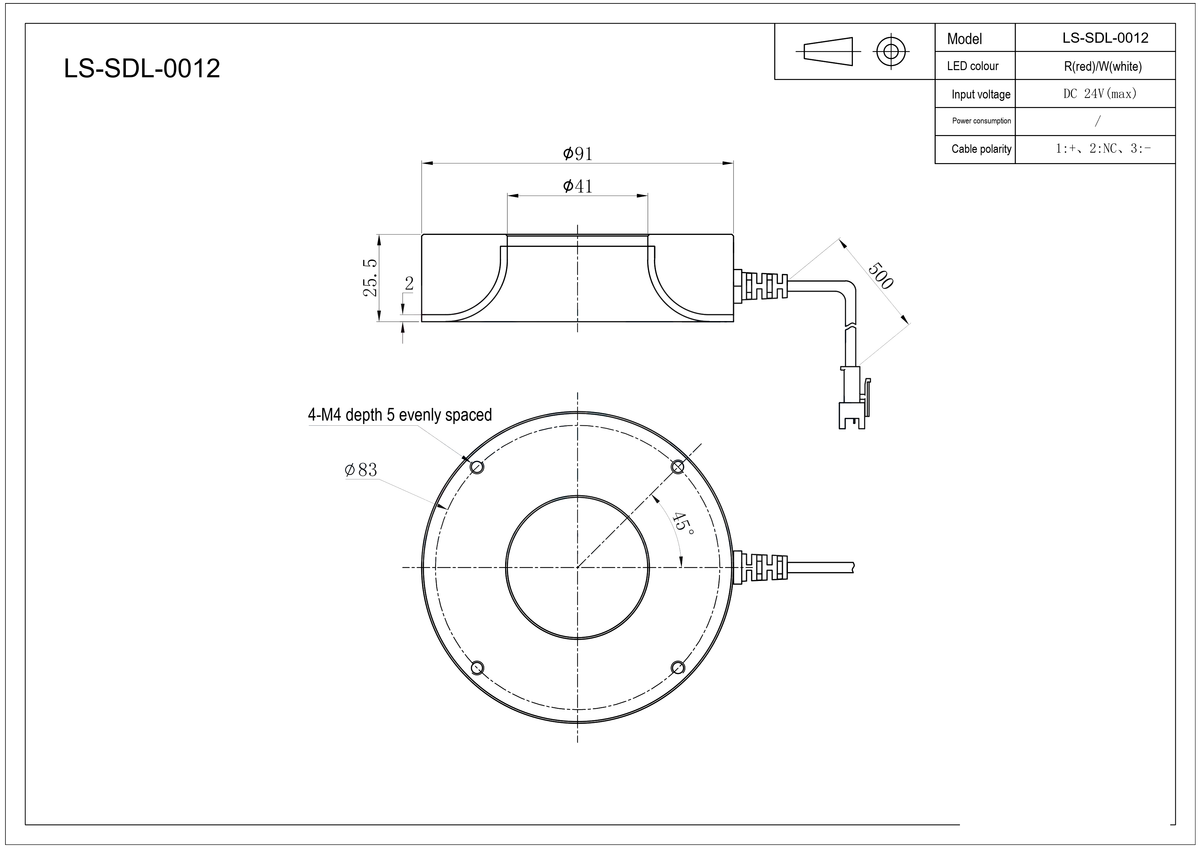

| Dimension | Outer dia. 91mm,Inner dia. 41mm,Height 25.5mm |
|---|---|
| Mounting holes | 4-M4 depth 5, evenly spaced |
| Shipping weight | 0.50 kg |
Other models in the Ring shadowless light (LS-SDL-S02) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SDL-0011 | Red, Blue, Green, White · 24V | $159.00 | Ships in 2-3 weeks | View |
| LS-SDL-0013 | Red, Blue, Green, White · 24V | $309.00 | Ships in 2-3 weeks | View |
| LS-SDL-0014 | Red, Blue, Green, White · 24V | $419.00 | Ships in 2-3 weeks | View |
| LS-SDL-0015 | Red, Blue, Green, White · 24V | $529.00 | Ships in 2-3 weeks | View |
| LS-SDL-0016 | Red, Blue, Green, White · 24V | $639.00 | Ships in 2-3 weeks | View |
