Representative photo of this series

Ring lights

Arc-shaped light (LS-RNG-0858)

Model LS-RNG-0858

ColourRed, Blue, Green, White
SizeOut dia. 120,Inner dia. 60,Height 25mm
Voltage24 V DC
Power8.7W/9.8W
Angle60°

$319.00

Ships in 2-3 weeks

0.5 kg shipping weight

Color Red Blue Green White

Volume pricing, Net 30 terms or a formal quote for purchasing?

The half ring light adopts lamp LEDs to get high brightness. The shape is small and light, which is easier to install than the ordinary ring light. It can be used to inspect a variety of arc shaped objects and also can be combined with bar lights as runway lighting.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-RNG-0858
FOV	1-100 mm
UV / IR	UV & IR light can be customized as required
Note	UV & IR light can be customized as required.
Angle	60°

Optics

Recommended working distance	0-50 mm

Interfaces and I/O

Extension cable options	PVC extension cable (flexible, bend and heat resistant, for use inside equipment); high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines)
Cable polarity	1: +, 2: NC, 3: -

Light

Peak wavelength / colour temperature	Red 620-630 nm, Green 525-530 nm, Blue 465-470 nm, White 6600 K (colour temperature)
LED colour	R(red)/W(white)
Diffuser	Cup-shaped diffuser optional

Environment and compliance

Operating environment	Temperature 0-50 °C, humidity 20-85% (non-condensing)
Lifespan	50000 h (to 50% of factory-default luminance)

Electrical

Voltage	24 V DC
Adapted controller	Strobe controller; analog controller; digital controller
Power	8.7W/9.8W
Input voltage	DC 24V (max)

Mechanical

Diameter range (overview)	dia. 50-500

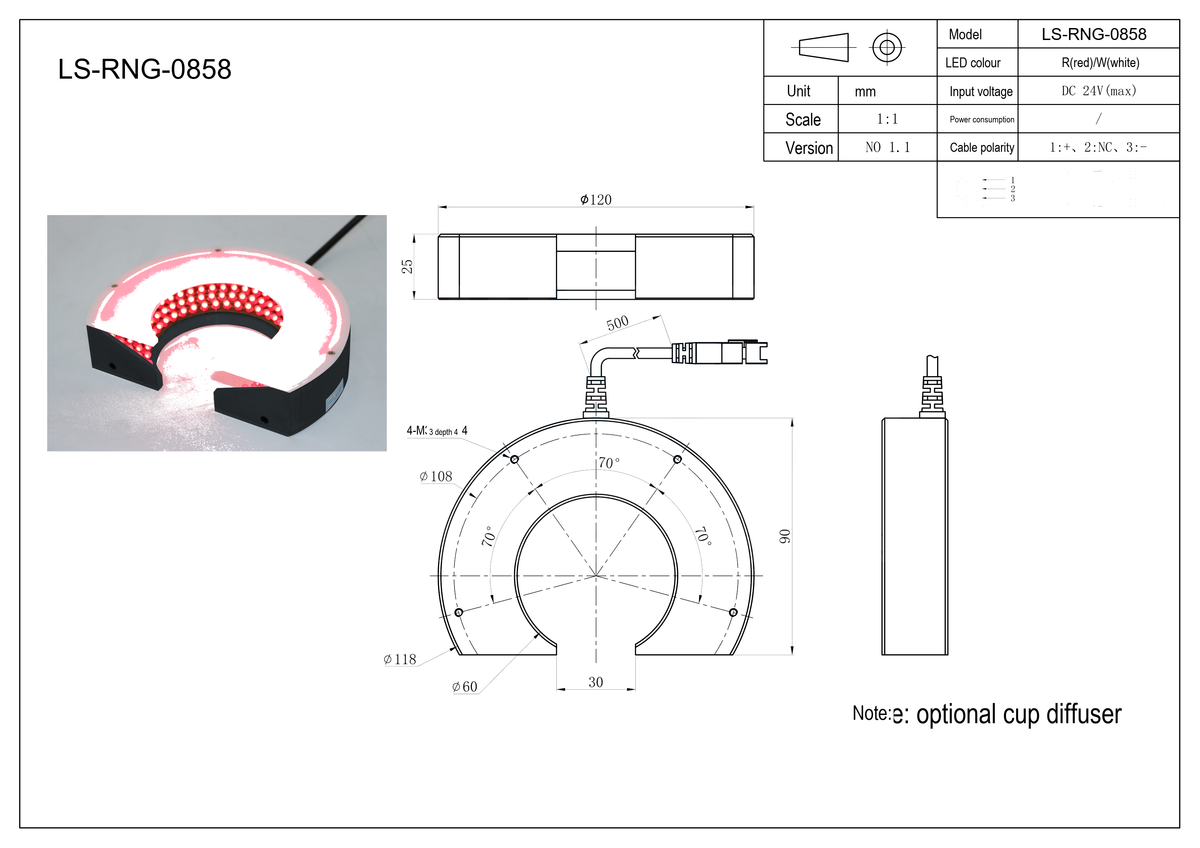

Dimension	Out dia. 120,Inner dia. 60,Height 25mm
Mounting holes	4-M3 depth 4
Shipping weight	0.50 kg

Downloads

Datasheet (PDF)LS-RNG-0858 · 2.6 MB

Features

LED arc-shaped array
Arc angle can be customized, various models
Adapts to various working-environment shapes, more flexible than a common ring light
Wire jacket covers the cable exit against pulling
Customizable: emitting angle, outer & inner diameter, shape, colour & colour temperature, combined light, cable length, multi-area control, installation method
Are-shaped angle can be customized, various model
Adapt to various shape required working environment

Applications

PCB inspection
Product label inspection
Arc-shaped component inspection
Mobile 3D glass screen contour detection
Products label inspection
