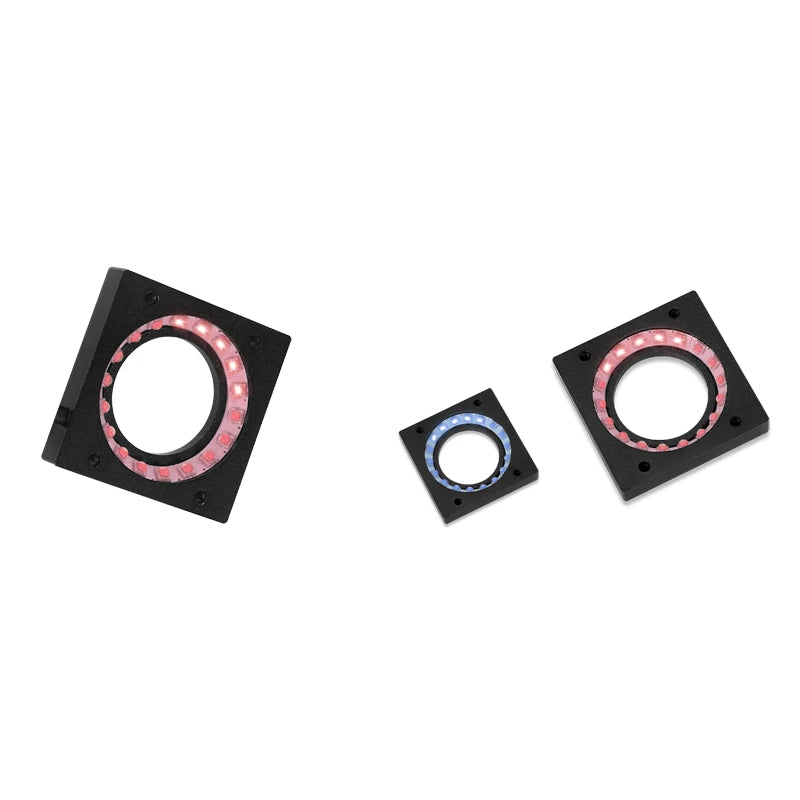

Representative photo of this series
Ring lights
Square ring light, 34 x 34 x 6.5 mm (LS-RNG-0835)
Model LS-RNG-0835
- ColourRed, Green, Blue, White
- SizeL34xW34xH6.5(mm)
- Voltage24V
- Power2.2W/2.2W
$129.00
Ships in 2-3 weeks
0.2 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Use high luminance LEDs, low angle emitting. Suitable for IC chip characters or PCB characters inspection.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-RNG-0835 |
|---|---|
| Note | UV & IR light can be customized as required. |
Interfaces and I/O
| Cable polarity | 1: +, 2: NC, 3: - |
|---|---|

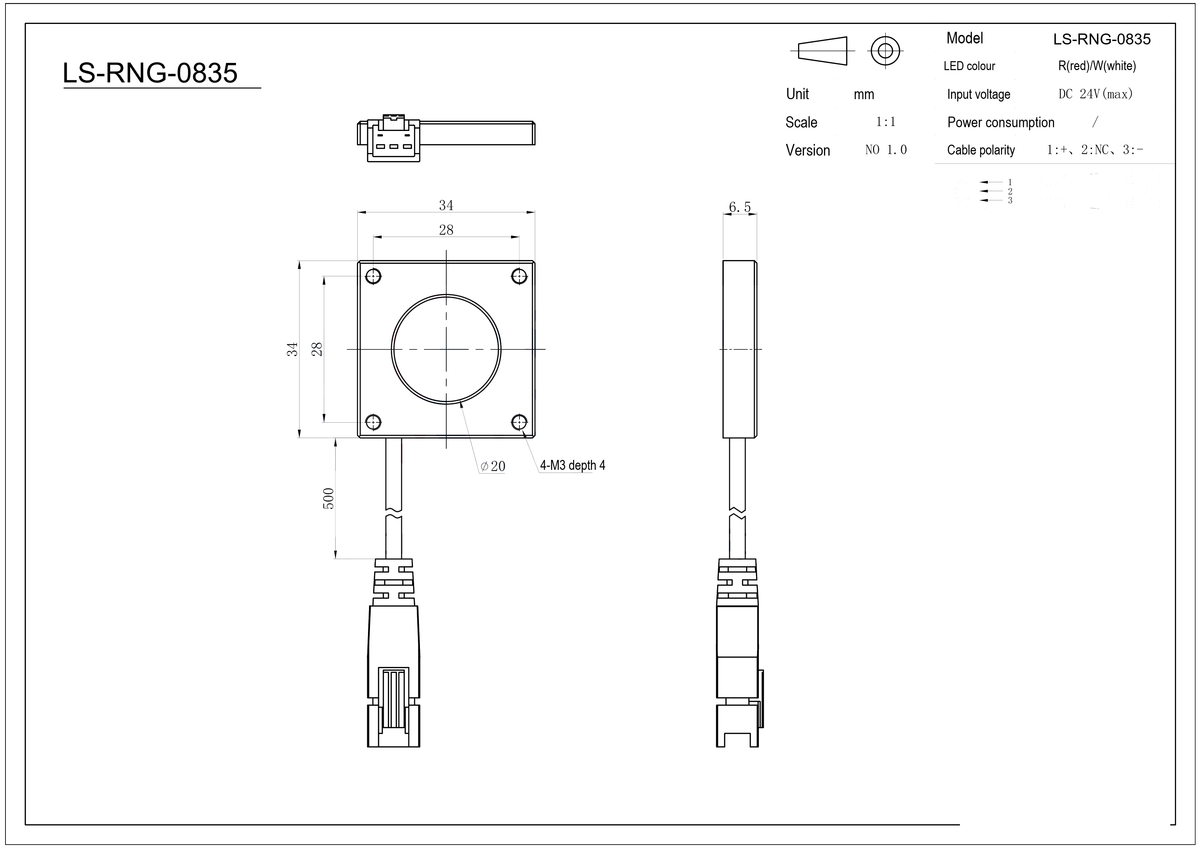

| Cable (mm) | 500 (drawing) |
Light
| LED colour | R(red)/W(white) |
|---|
Electrical
| Voltage | 24V |
|---|---|
| Power | 2.2W/2.2W |
| Input voltage | DC 24V (max) |
Mechanical
| Dimension | L34xW34xH6.5(mm) |
|---|---|
| Mounting holes | 4-M3 depth 4 |
| Shipping weight | 0.20 kg |
Other models in the Square ring light (LS-RNG-S88) series
See all 3 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-RNG-0833 | Red, Green, Blue, White · L28xW28xH4(mm) | $109.00 | Ships in 2-3 weeks | View |
| LS-RNG-0834 | Red, Green, Blue, White · L30xW20xH12(mm) | $119.00 | Ships in 2-3 weeks | View |
