Ring lights

50 mm dia. ring light, 15° (LS-RNG-0791)

Model LS-RNG-0791

ColourRed, Green, Blue, White
TypeStandard
AngleLow angle (0-15°)
Voltage24 V

$159.00

Ships in 2-3 weeks

0.2 kg shipping weight

Color Red Green Blue White

Volume pricing, Net 30 terms or a formal quote for purchasing?

Ring light with a high-density LED array for high brightness, in a compact housing that saves installation space. A unique heat-dissipation structure improves stability; an optional diffuse plate spreads the light evenly.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-RNG-0791
Optional accessories	Extension cable, diffuse plate
Service life	Red: 60000 h continuous at 25 °C and 50% illumination until 50% decrement; white: 30000 h under the same conditions
Lamp bead rows	2

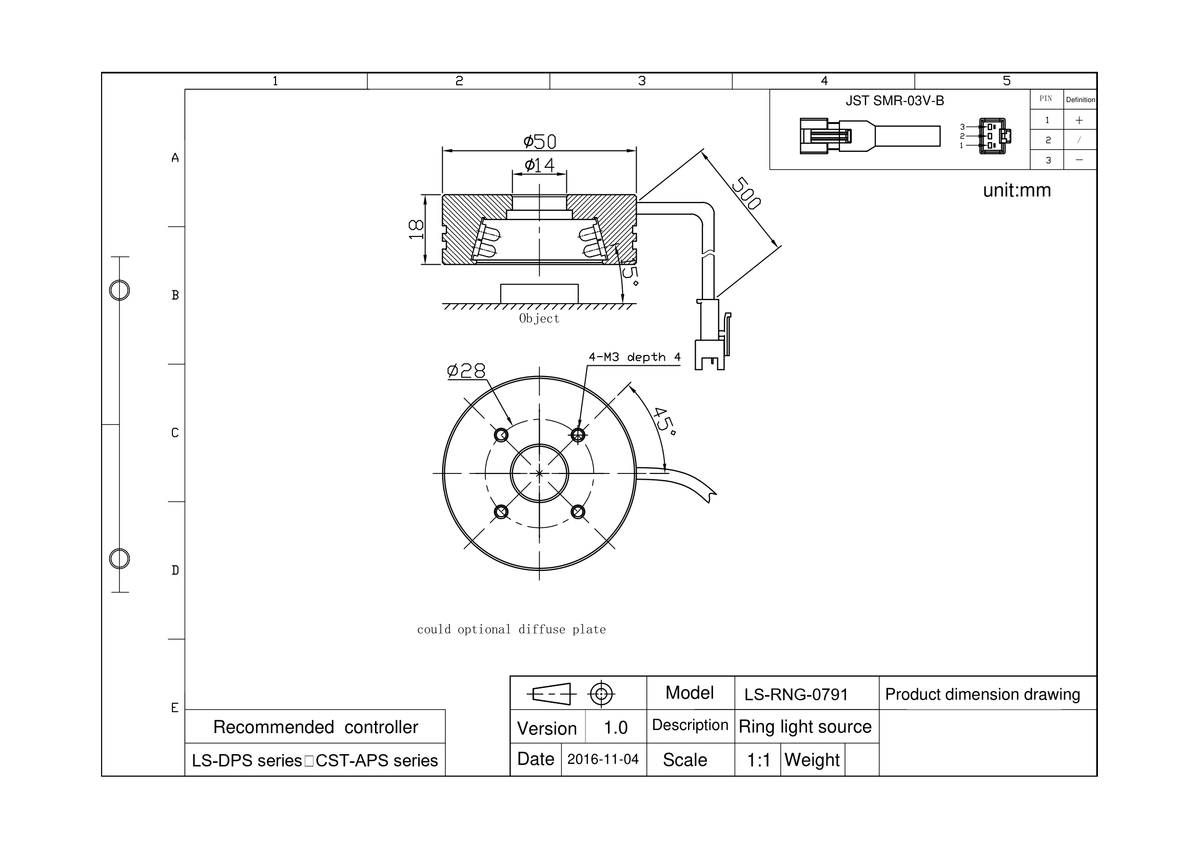

OD (mm)	50
ID (mm)	14
H (mm)	18

Interfaces and I/O

Cable length	500 mm (drawings)

Light

Wavelength red	620-630 nm
Wavelength green	520-530 nm
Wavelength blue	465-475 nm
Colour temperature white	6000-10000 K
Wavelength IR	850-940 nm
Wavelength UV	365-405 nm
Luminous angle (°)	15

Environment and compliance

Storage temperature	-20 to 60 °C
Operating temperature	0 to 40 °C
Humidity	20-85 %RH (non-condensing)

Electrical

Controller	LS-CTL-S69 series, LS-CTL-S28 series, LS-CTL-S125 series (the selected controller should match the power of the light source)
Power R (W)	1.6
Power G/B/W (W)	2.4
Recommended controller	LS-CTL-S69, LS-CTL-S28, LS-CTL-S125
Supply voltage (derived)	24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-S69, LS-CTL-S28

Mechanical

Shipping weight	0.20 kg

Downloads

Datasheet (PDF)LS-RNG-0791 · 1.2 MB

Features

High density LED array, high brightness
Compact structure design, saves installation space
Optional diffuse plate to make light diffusion even
Unique heat dissipation structure, improves the stability of the light source

Applications

Various character recognition
Various appearance inspection
Various damage and defect inspection
QR codes, one-dimension bar code reading
Part inspection on substrates
Mint-mark on the metal surface
Various edge extraction
Inspection of foreign matter mixed in medicine
Defect inspection of glass end face
O-ring appearance inspection
Foreign matter inspection on wafers
Inspection of the binding of shrink film
Rubber character inspection
Various color recognition inspection
Screen printing inspection

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer
