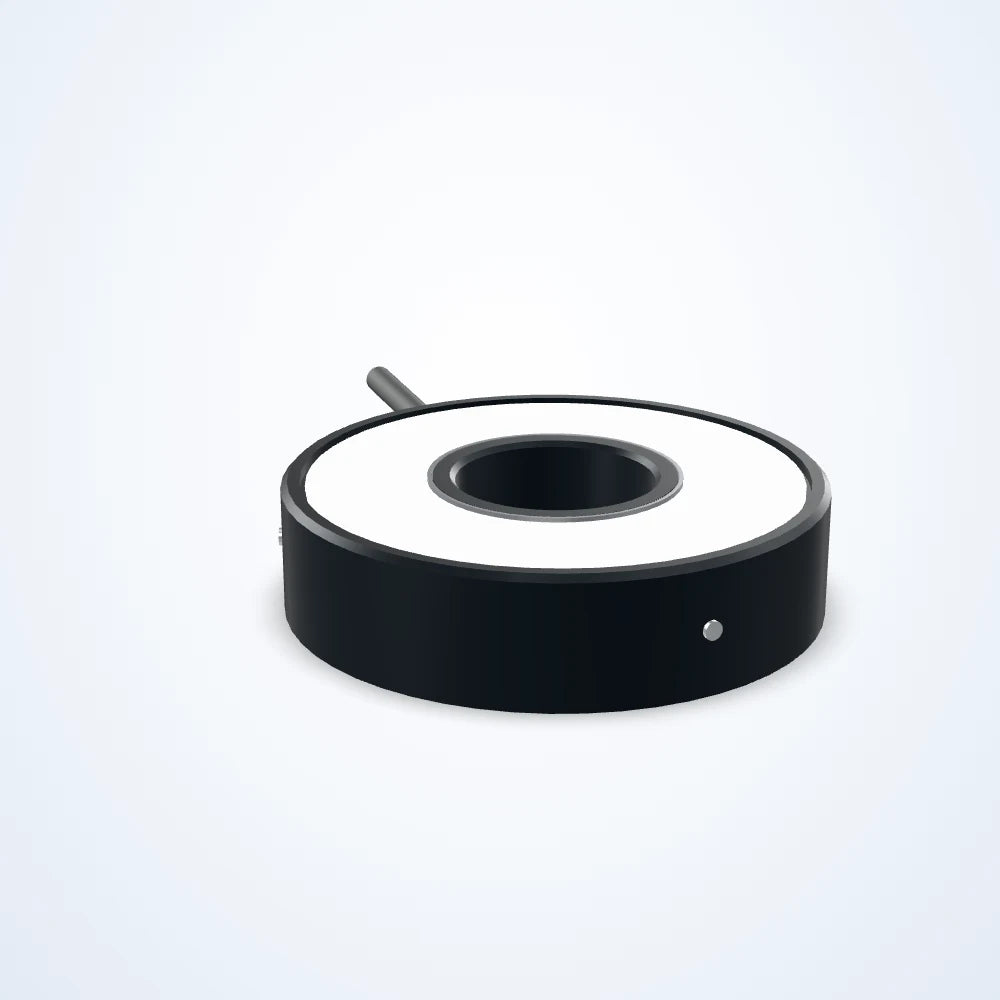

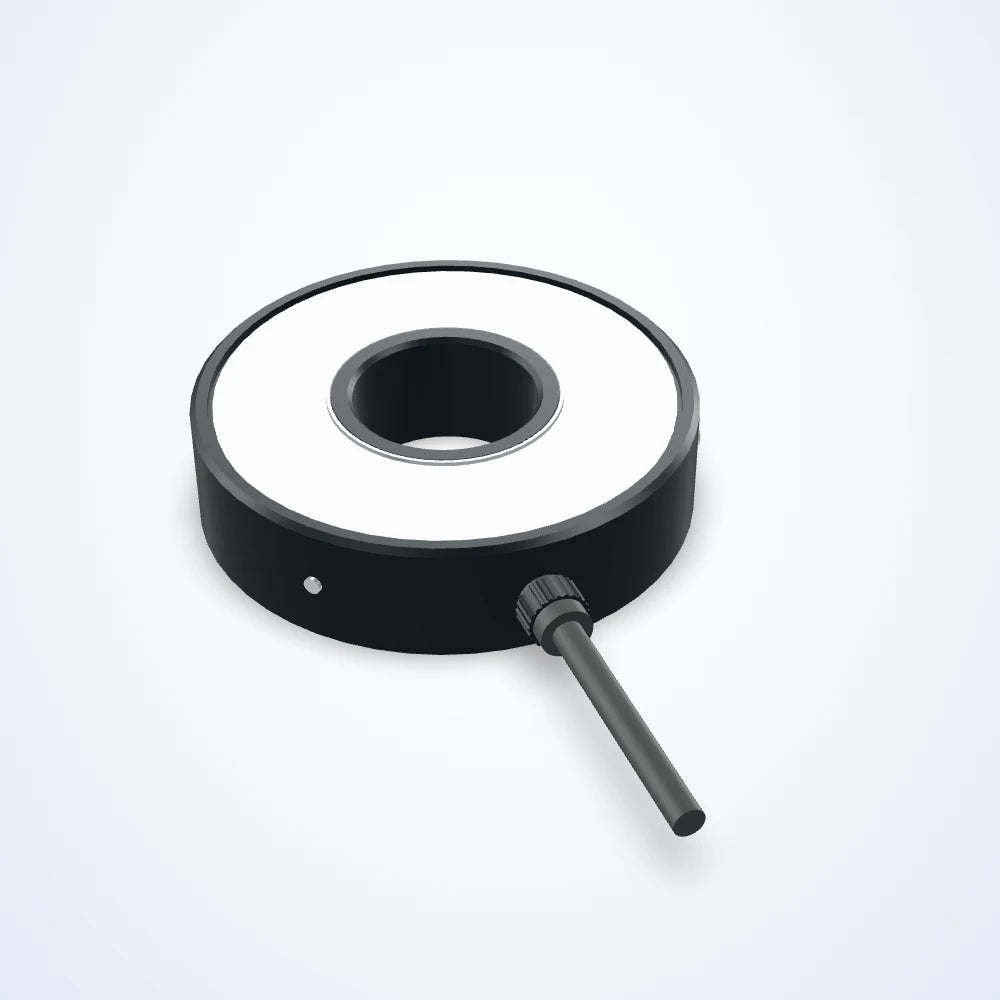

High-brightness high-angle ring light 90° angle (series view)

Rendered illustration: the actual product may differ in appearance.

Ring lights

Ø152 mm high-brightness high-angle ring light, 90° angle (LS-RNG-0652)

Model LS-RNG-0652

ColourRed, Blue, White, Green, Infrared, UV
Emitting areaØ104-Ø142
SizeOD:152 mm ID:100 mm
Voltage24 VDC
PowerR:9.6w B/W/G:14.4w
Angle90°

$330.00

Ships in 3-4 weeks

1.1 kg shipping weight

Color Red Blue White Green Infrared UV

Volume pricing, Net 30 terms or a formal quote for purchasing?

High-brightness high-angle ring light for even illumination around the lens. Size Ø152 mm; 24 V DC supply; available in red, blue, white, green, infrared, UV.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-RNG-0652
Service life	White:30,000hrs, Red: 60,000hrs (Depends on the operating environment, not a gurantee)
Pin assignment	1: (+), 2: NC, 3: (-)

Interfaces and I/O

Connector	SMR-03 V-B
Cable length	500 mm

Light

Lighting angle	90°
Emitting area (mm)	Ø104-Ø142
Wavelength	Red: 620-630 nm; Blue: 460-475 nm; Green: 520-530 nm
Colour temperature (white)	6500-8500K

Environment and compliance

Operating environment	Temperature: 0~40 °C Humidity: 20% to 85% RH (with no condensation)

Electrical

Power	R:9.6w B/W/G:14.4w
Supply voltage	24 VDC

Mechanical

Outer diameter (mm)	152
Inner diameter (mm)	100
Dimensions (mm)	OD:152 mm ID:100 mm
Housing material	Aluminum alloy, Resin
Shipping weight	1.10 kg
