Representative photo of this series
Ring lights
90 mm dia. semi-circular ring light, 30° (LS-RNG-0648)
Model LS-RNG-0648
- ColourRed, Green, Blue, White, Infrared, UV
- Voltage24 V DC (12 V on request)
- TypeStandard
- Angle30°
$309.00
Ships in 2-3 weeks
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Ring light sources provide illumination at different angles, highlighting the three-dimensional information of objects and effectively solving the problem of shadows caused by angled illumination (high-angle direct lighting, angle, number of rings).
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-RNG-0648 |
|---|---|
| Number of lamp rows | 3 |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Illumination angle | 30 deg |
|---|
Electrical
| Voltage | 24 V DC (12 V on request) |
|---|---|
| Power red (W) | 3 |
| Power white/blue/green (W) | 3.3 |

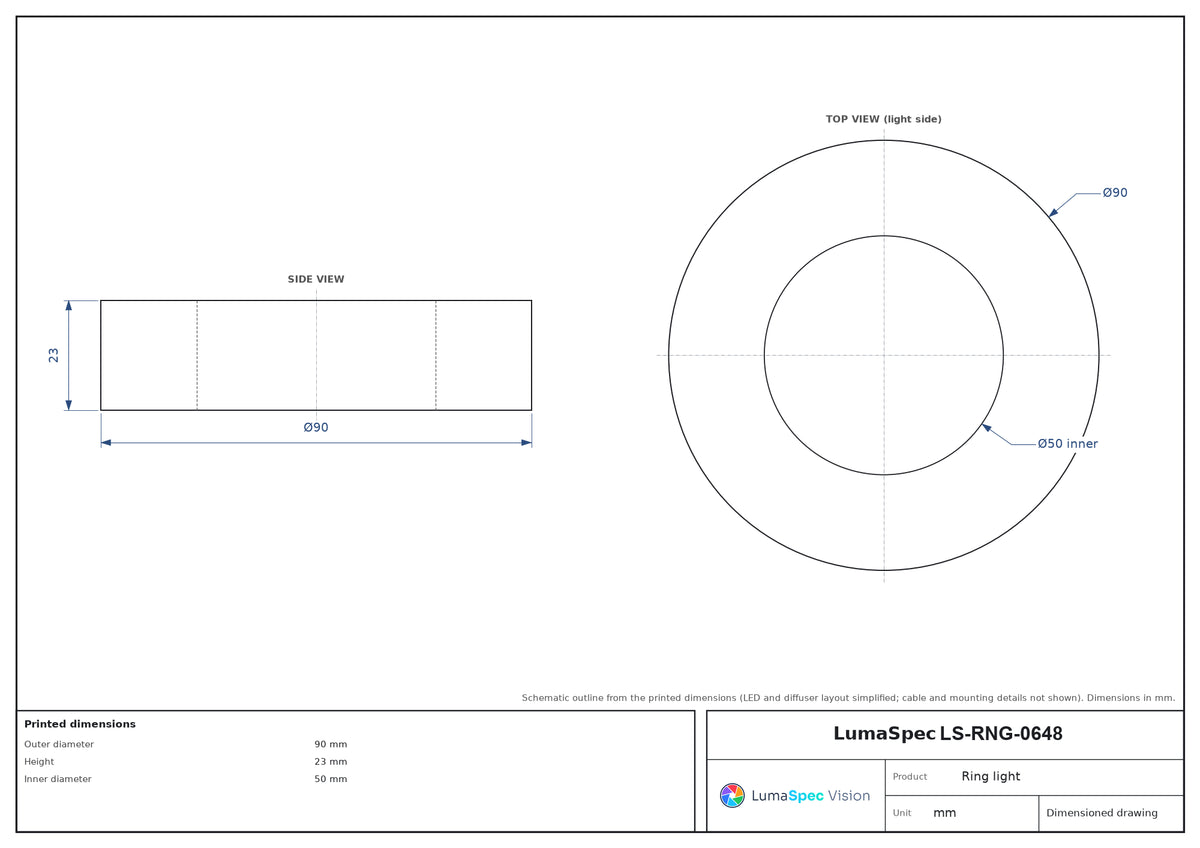

Mechanical
| Outer diameter (mm) | 90 |
|---|---|
| Inner diameter (mm) | 50 |
| Height (mm) | 23 |
| Mounting | 2 x M3 threaded through |
| Shipping weight | 0.50 kg |
Other models in the Semi-circular ring light (LS-RNG-S76 .../2) series
See the category| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-RNG-0647 | 74 mm dia., 30° | $239.00 | Ships in 2-3 weeks | View |
