Ring light, 90 degree series (LS-RNG-S75)
  • Ring light, 90 degree series (LS-RNG-S75)

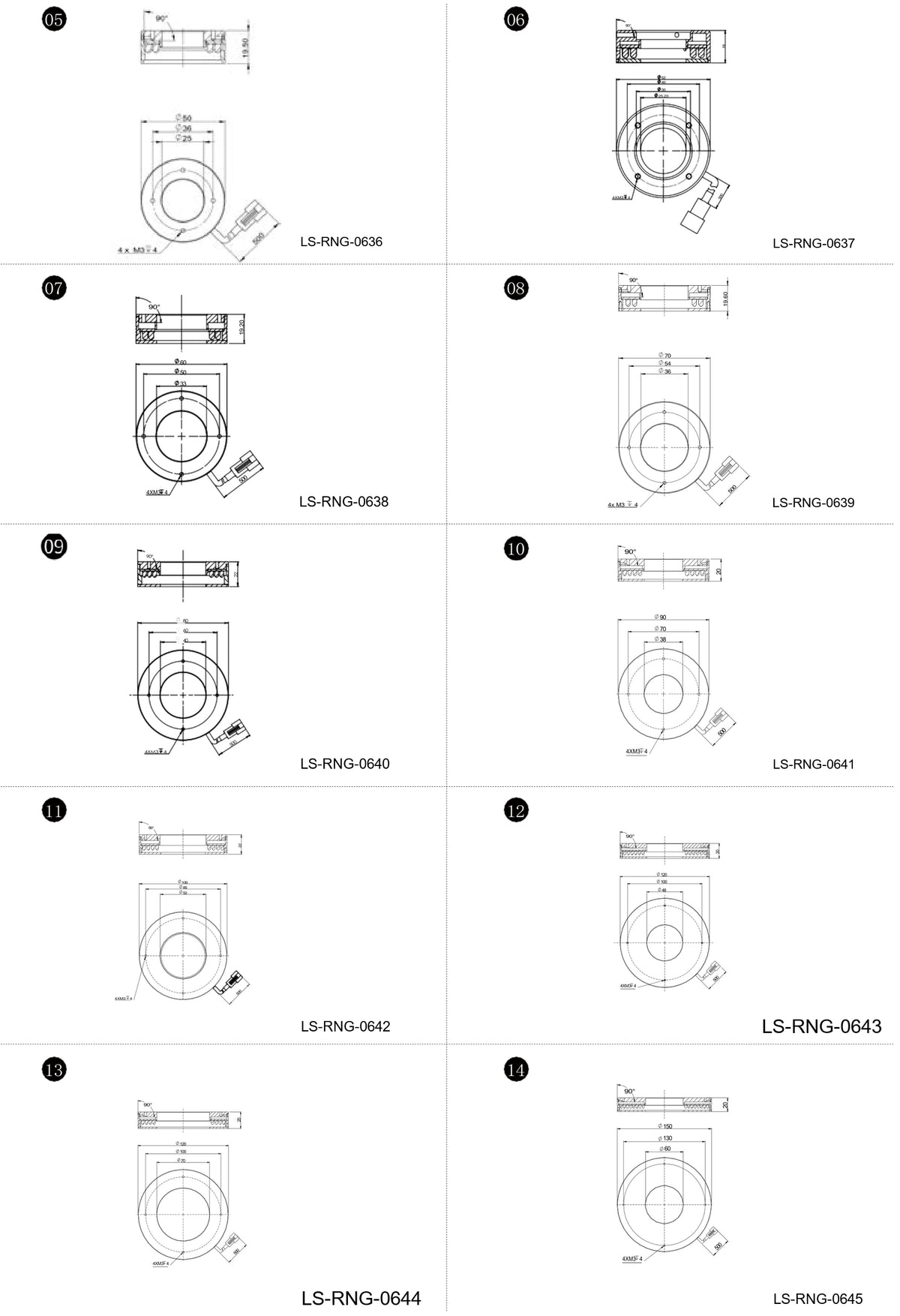

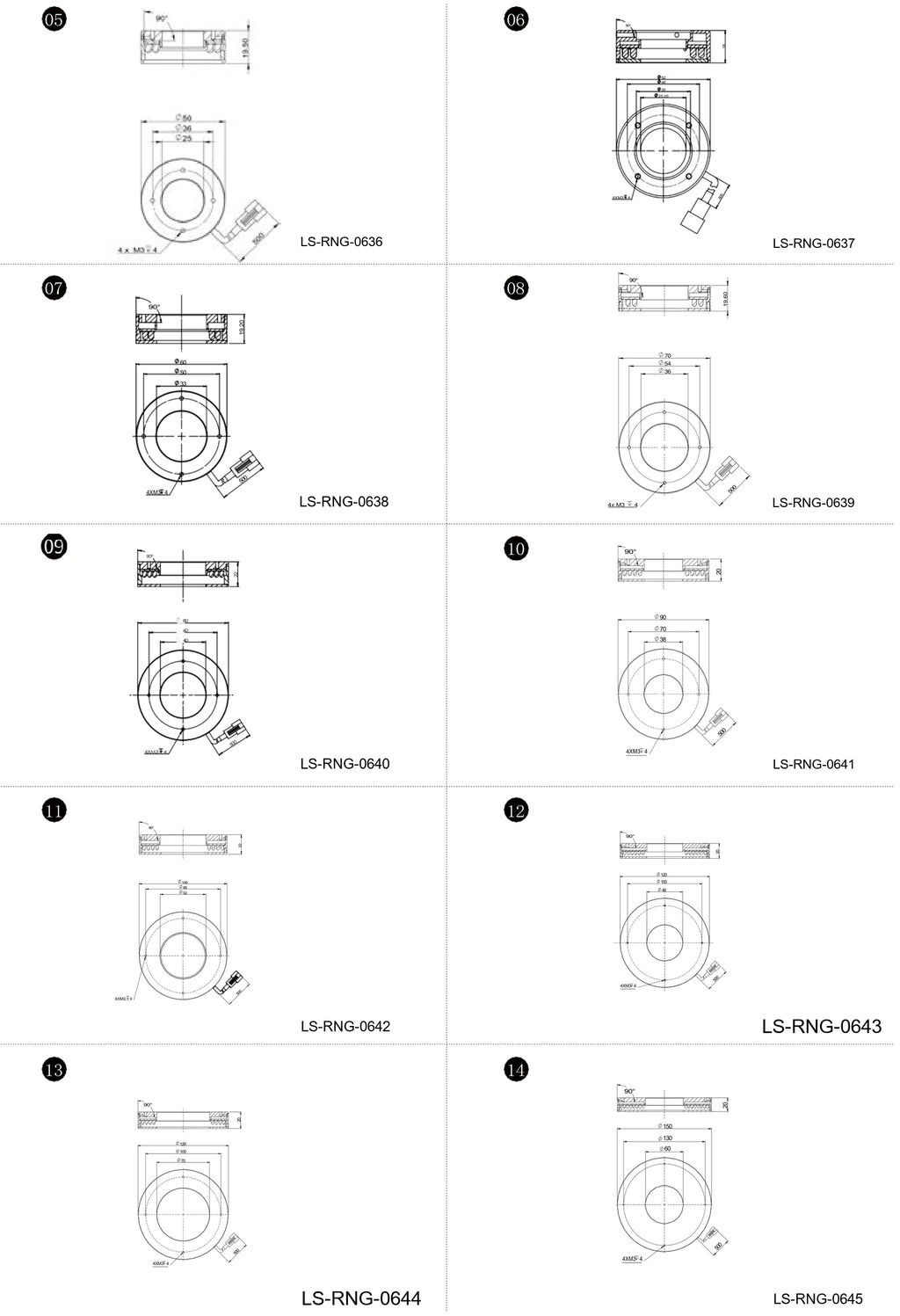

  • LS-RNG-0636 dimensions (mm)

Representative photo of this series

Ring lights

80 mm dia. ring light, 90° (LS-RNG-0640)

Model LS-RNG-0640

  • ColourRed, Green, Blue, White, Infrared, UV
  • Voltage24 V DC (12 V on request)
  • Angle90 degree series
  • TypeStandard
$239.00

Ships in 2-3 weeks

0.3 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

80 mm dia. ring light, 90° (LS-RNG-0640)LS-RNG-0640

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Ring light sources provide illumination at different angles, highlighting the three-dimensional information of objects and effectively solving the problem of shadows caused by angled illumination (high-angle direct lighting, angle, number of rings).

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-RNG-0640
Angle classification90 degree series
Number of lamp rows3

Interfaces and I/O

Cable length (mm)500

Light

Illumination angle90 deg

Electrical

Voltage24 V DC (12 V on request)
Power red (W)1.2
Power white/blue/green (W)2.9

Mechanical

Outer diameter (mm)80
Inner diameter (mm)40
Height (mm)22
Mounting4 x M3 threaded, depth 4
Shipping weight0.30 kg

Other models in the Ring light, 90 degree series (LS-RNG-S75) series

See all 15 models
ModelSize / key dataPriceAvailabilityLink
LS-RNG-0632 20 mm dia., 90° $99.00 Ships in 2-3 weeks View
LS-RNG-0633 28 mm dia., 90° $109.00 Ships in 2-3 weeks View
LS-RNG-0634 36 mm dia., 90° $129.00 Ships in 2-3 weeks View
LS-RNG-0635 42 mm dia., 90° $139.00 Ships in 2-3 weeks View
LS-RNG-0636 50 mm dia., 90° $159.00 Ships in 2-3 weeks View
LS-RNG-0637 52 mm dia., 90° $169.00 Ships in 2-3 weeks View
LS-RNG-0639 70 mm dia., 90° $219.00 Ships in 2-3 weeks View
LS-RNG-0638 60 mm dia., 90° $259.00 Ships in 2-3 weeks View
LS-RNG-0642 100 mm dia., 90° $269.00 Ships in 2-3 weeks View
LS-RNG-0641 90 mm dia., 90° $309.00 Ships in 2-3 weeks View
LS-RNG-0643 120 mm dia., 90° $319.00 Ships in 2-3 weeks View
LS-RNG-0644 120 mm dia., 90° $319.00 Ships in 2-3 weeks View
LS-RNG-0645 150 mm dia., 90° $389.00 Ships in 2-3 weeks View
LS-RNG-0646 180 mm dia., 90° $459.00 Ships in 2-3 weeks View
