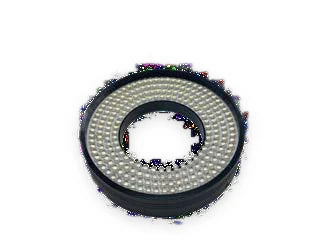

Representative photo of this series
Ring lights
32 mm dia. ring light, 75° (LS-RNG-0628)
Model LS-RNG-0628
- ColourRed, Green, Blue, White, Infrared, UV
- Voltage24 V DC (12 V on request)
- Angle75 degree series
- TypeStandard
$119.00
Ships in 2-3 weeks
0.2 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Ring light sources provide illumination at different angles, highlighting the three-dimensional information of objects and effectively solving the problem of shadows caused by angled illumination (high-angle direct lighting, angle, number of rings).
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-RNG-0628 |
|---|---|
| Angle classification | 75 degree series |
| Number of lamp rows | 2 |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Illumination angle | 75 deg |
|---|
Electrical
| Voltage | 24 V DC (12 V on request) |
|---|---|
| Power red (W) | 0.6 |
| Power white/blue/green (W) | 1.7 |

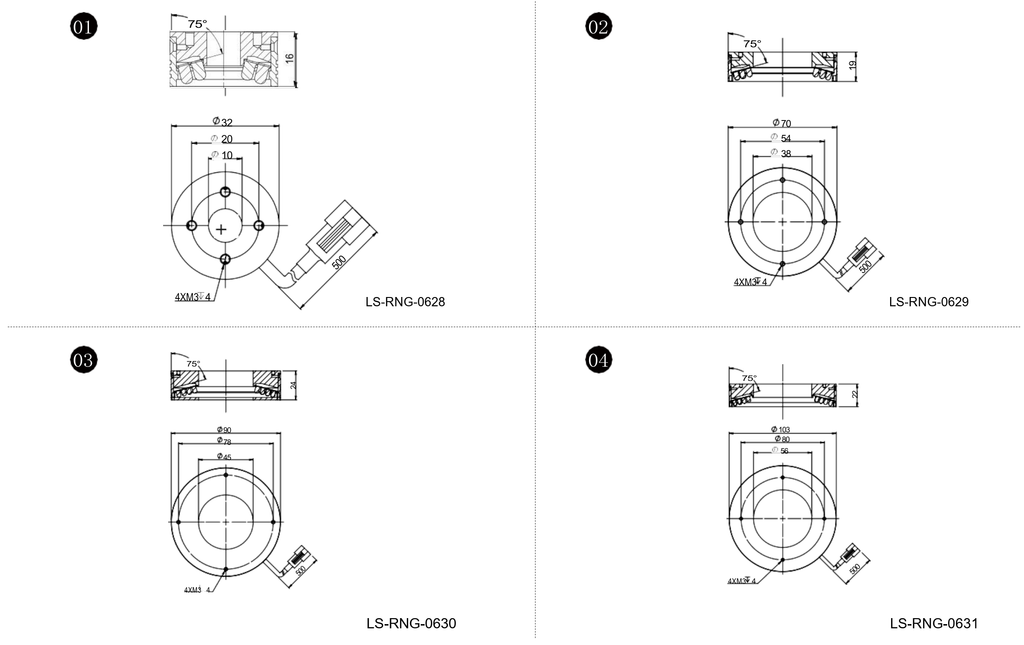

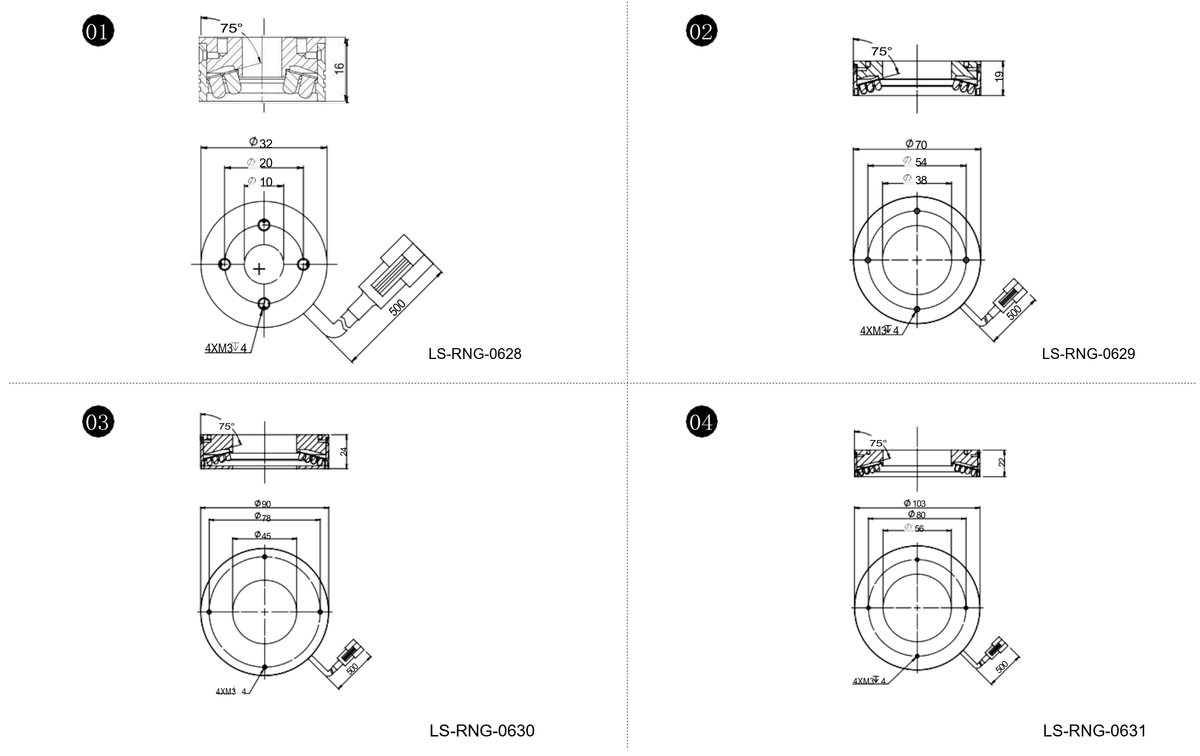

Mechanical
| Outer diameter (mm) | 32 |
|---|---|
| Inner diameter (mm) | 20 |
| Height (mm) | 10 |
| Mounting | 4 x M3 threaded, depth 4 |
| Shipping weight | 0.20 kg |
Other models in the Ring light, 75 degree series (LS-RNG-S74) series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-RNG-0629 | 70 mm dia., 75° | $219.00 | Ships in 2-3 weeks | View |
| LS-RNG-0631 | 103 mm dia., 75° | $279.00 | Ships in 2-3 weeks | View |
| LS-RNG-0630 | 90 mm dia., 75° | $309.00 | Ships in 2-3 weeks | View |
