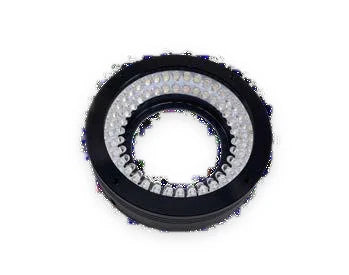

Representative photo of this series
Ring lights
72 mm dia. ring light, 30° (LS-RNG-0604)
Model LS-RNG-0604
- ColourRed, Green, Blue, White, Infrared, UV
- Voltage24 V DC (12 V on request)
- Angle30 degree series
- TypeStandard
$239.00
Ships in 2-3 weeks
0.25 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Ring light sources provide illumination at different angles, highlighting the three-dimensional information of objects and effectively solving the problem of shadows caused by angled illumination (high-angle direct lighting, angle, number of rings).
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-RNG-0604 |
|---|---|
| Angle classification | 30 degree series |
| Number of lamp rows | 2 |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Illumination angle | 30 deg |
|---|
Electrical
| Voltage | 24 V DC (12 V on request) |
|---|---|
| Power red (W) | 3.7 |
| Power white/blue/green (W) | 4 |

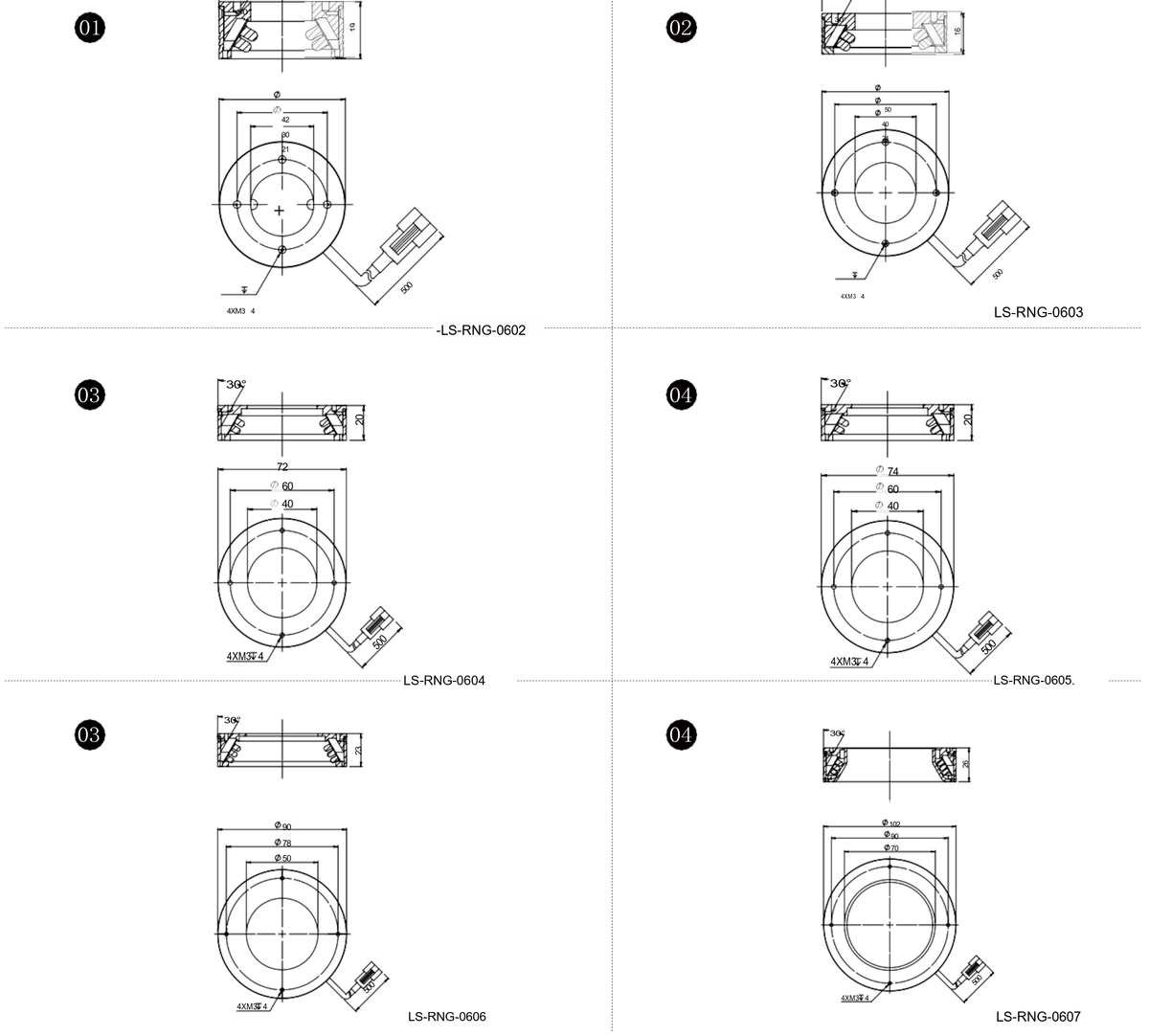

Mechanical
| Outer diameter (mm) | 72 |
|---|---|
| Inner diameter (mm) | 40 |
| Height (mm) | 20 |
| Mounting | 4 x M3 threaded, depth 4 |
| Shipping weight | 0.25 kg |
Other models in the Ring light, 30 degree series (LS-RNG-S71) series
See all 10 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-RNG-0602 | 42 mm dia., 30° | $139.00 | Ships in 2-3 weeks | View |
| LS-RNG-0603 | 50 mm dia., 30° | $159.00 | Ships in 2-3 weeks | View |
| LS-RNG-0605 | 74 mm dia., 30° | $239.00 | Ships in 2-3 weeks | View |
| LS-RNG-0607 | 102 mm dia., 30° | $279.00 | Ships in 2-3 weeks | View |
| LS-RNG-0606 | 90 mm dia., 30° | $309.00 | Ships in 2-3 weeks | View |
| LS-RNG-0608 | 120 mm dia., 30° | $319.00 | Ships in 2-3 weeks | View |
| LS-RNG-0609 | 150 mm dia., 30° | $389.00 | Ships in 2-3 weeks | View |
| LS-RNG-0610 | 180 mm dia., 30° | $459.00 | Ships in 2-3 weeks | View |
| LS-RNG-0611 | 210 mm dia., 30° | $599.00 | Ships in 2-3 weeks | View |
