Ring lights
100 mm dia. non-standard ring lights (LS-RNG-0565)
Model LS-RNG-0565
- Voltage24 V DC (12 V on request)
- TypeStandard
- Outer diameter100 mm
- Inner diameter35 mm
$269.00
Ships in 2-3 weeks
0.35 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Non-standard (tailor-made) lights listed in the catalog's non-standard series table.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-RNG-0565 |
|---|
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Electrical
| Voltage | 24 V DC (12 V on request) |
|---|---|
| Power red (W) | 2.5 |
| Power white/blue/green (W) | 6.6 |

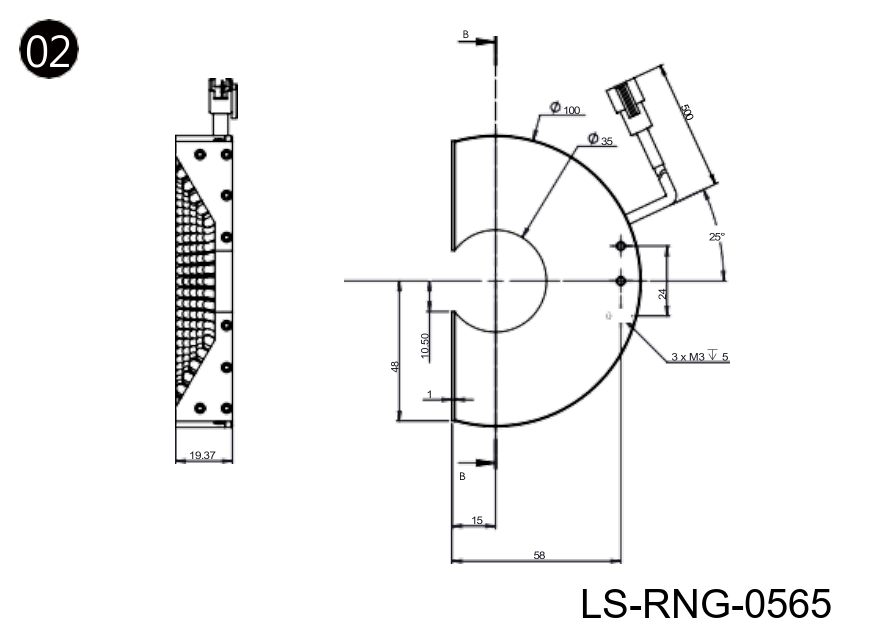

Mechanical
| Outer diameter (mm) | 100 |
|---|---|
| Inner diameter (mm) | 35 |
| Height (mm) | 19.37 |
| Mounting | 3 x M3 threaded, depth 5 |
| Shipping weight | 0.35 kg |
Other models in the Non-standard ring lights (LS-RNG-S64) series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-RNG-0563 | 37 mm dia. | $129.00 | Ships in 2-3 weeks | View |
| LS-RNG-0566 | 42.6 mm dia. | $149.00 | Ships in 2-3 weeks | View |
| LS-RNG-0564 | 52 mm dia. | $169.00 | Ships in 2-3 weeks | View |
