Ring lights

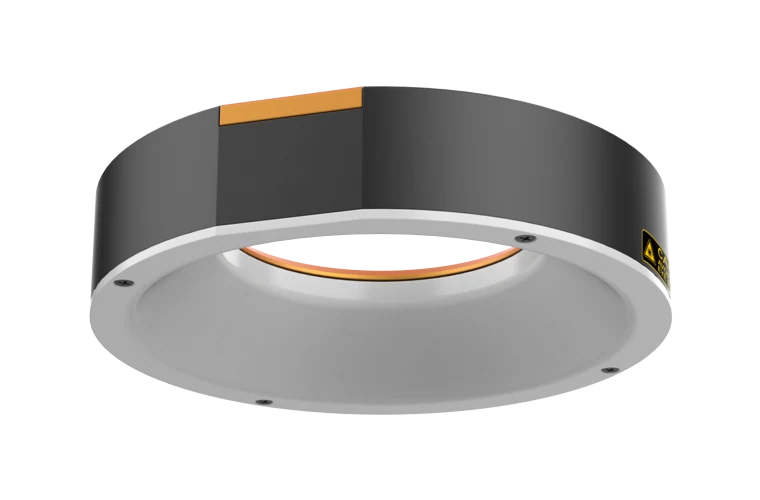

Ring Light, 200 mm dia., White (LS-RNG-0541)

Model LS-RNG-0541

ColourWhite
Emitting areaΦ186 mm
SizeΦ200 mm × 34 mm
Voltage24 VDC
Power21.8 W

$499.00

Ships in 2-3 weeks

0.89 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Ring Light, 200 mm dia., White. Provides high uniformity illumination. Supports various sizes of outer diameter.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-RNG-0541
Cooling mode	Natural cooling

Optics

Best working distance	30~80 mm

Interfaces and I/O

Connector type	SMR-03V-B
Cable length	1 m

Light

Color	White
Center illuminance	≥19000 Lux@WD=100 mm
Color temperature	6000 ~ 7000K
Emitting area length	Φ186 mm
LED rows	1
Diffuse plate included	PMMA

Environment and compliance

Temperature	Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity	20% RH to 90% RH (no condensation)

Electrical

Power	21.8 W
Input voltage	24 VDC

Mechanical

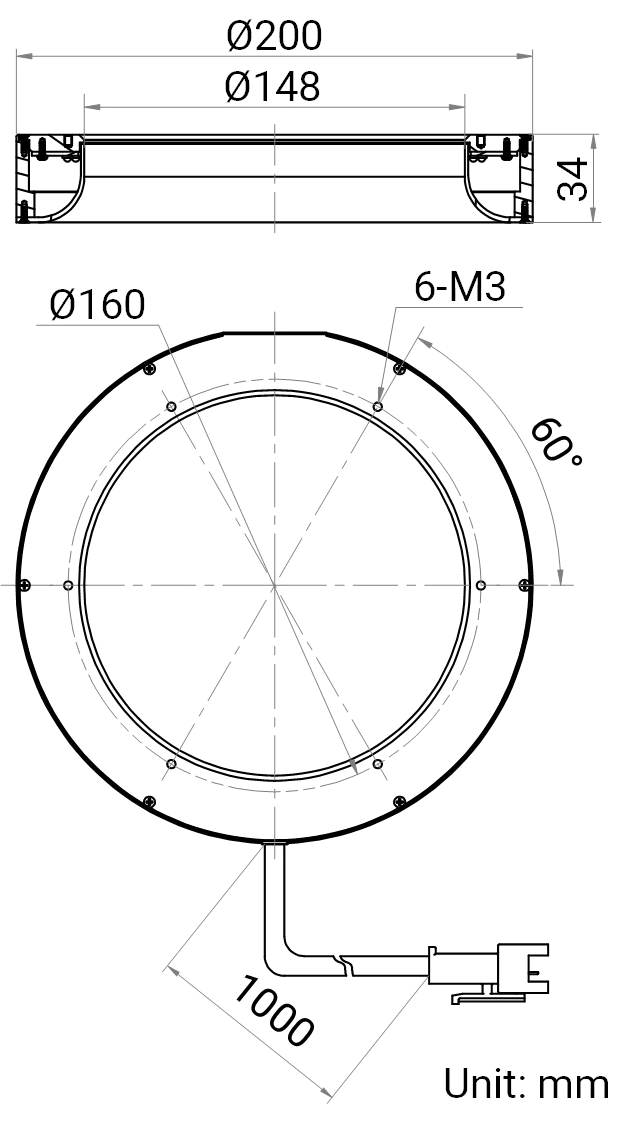

Dimension	Φ200 mm × 34 mm
Bore dimension	Φ148 mm
Weight	564 g
Shipping weight (estimated)	0.89 kg

Other models in the Standard ring lights (LS-RNG-S62) series

See all 6 models

Model	Size / key data	Price	Availability	Link
LS-RNG-0538	80 mm dia., White	$239.00	Ships in 2-3 weeks	View
LS-RNG-0539	120 mm dia., White	$319.00	Ships in 2-3 weeks	View
LS-RNG-0540	160 mm dia., White	$409.00	Ships in 2-3 weeks	View
LS-RNG-0542	250 mm dia., White	$619.00	Ships in 2-3 weeks	View
LS-RNG-0543	300 mm dia., White	$709.00	Ships in 2-3 weeks	View
