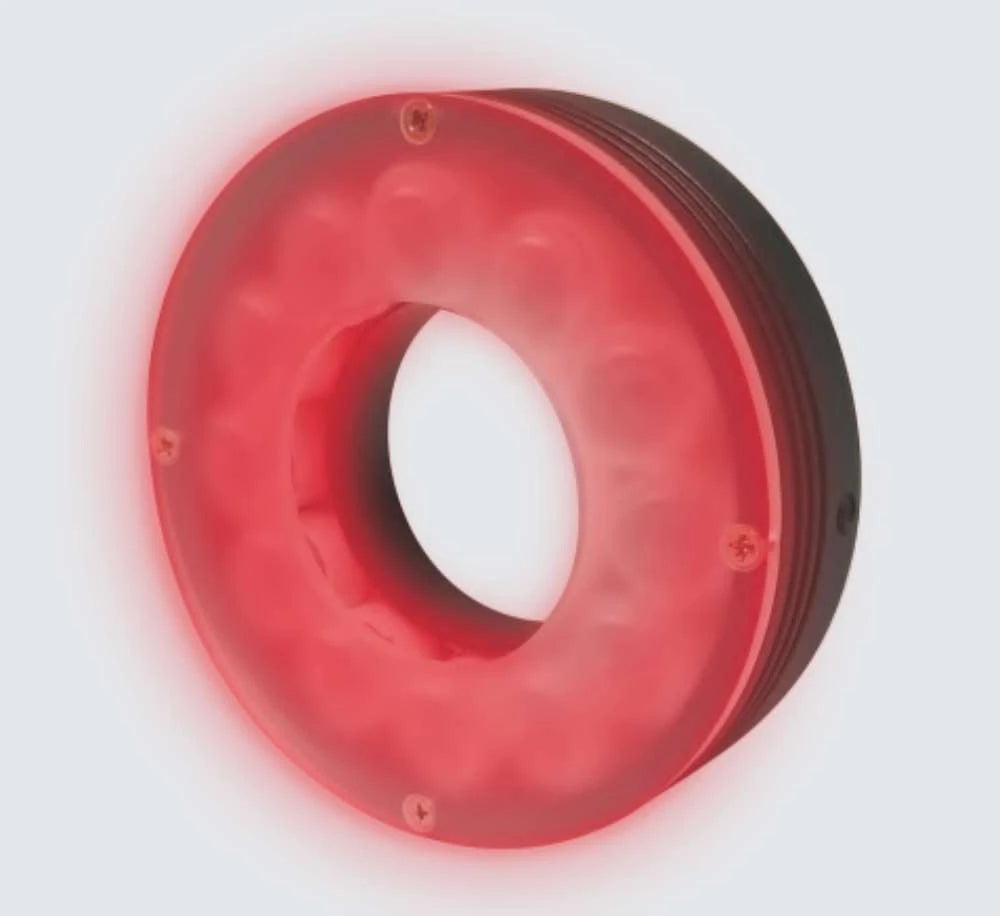

Representative photo of this series
Ring lights
High-brightness ring light, outer diameter 100 mm (LS-RNG-0231)
Model LS-RNG-0231
- ColourRed, Green, Blue, White
- TypeStandard
- Voltage24 V
- Recommended controllersLS-CTL-0140, -2T / LS-CTL-0142
$139.00
Ships in 2-3 weeks
0.2 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
High-brightness ring light with high-power LEDs evenly arranged; brightness more than 3 times that of a conventional ring light, stable output and long life; size can be customised to the customer's needs.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-RNG-0231 |
|---|---|
| Expected life | Red and white: 30000 h continuous, decays to 50% (typical one-year decay 8-15%); blue and green: 30000 h continuous, decays to 60% (typical one-year decay 10-18%) |
| Support | 1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| LED rows | 2 |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 525 nm |
| Wavelength blue | 470 nm |
| Colour temperature white | 5000-8000 K |
Environment and compliance
| Operating environment | Ambient about 25 °C, operating temperature within 35 °C |
|---|
Electrical
| Recommended controllers | LS-CTL-0140, -2T / LS-CTL-0142 |
|---|---|
| Power, green / blue / white (W) | 20 |
| Power, red (W) | 12 |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-0140, LS-CTL-0142 |

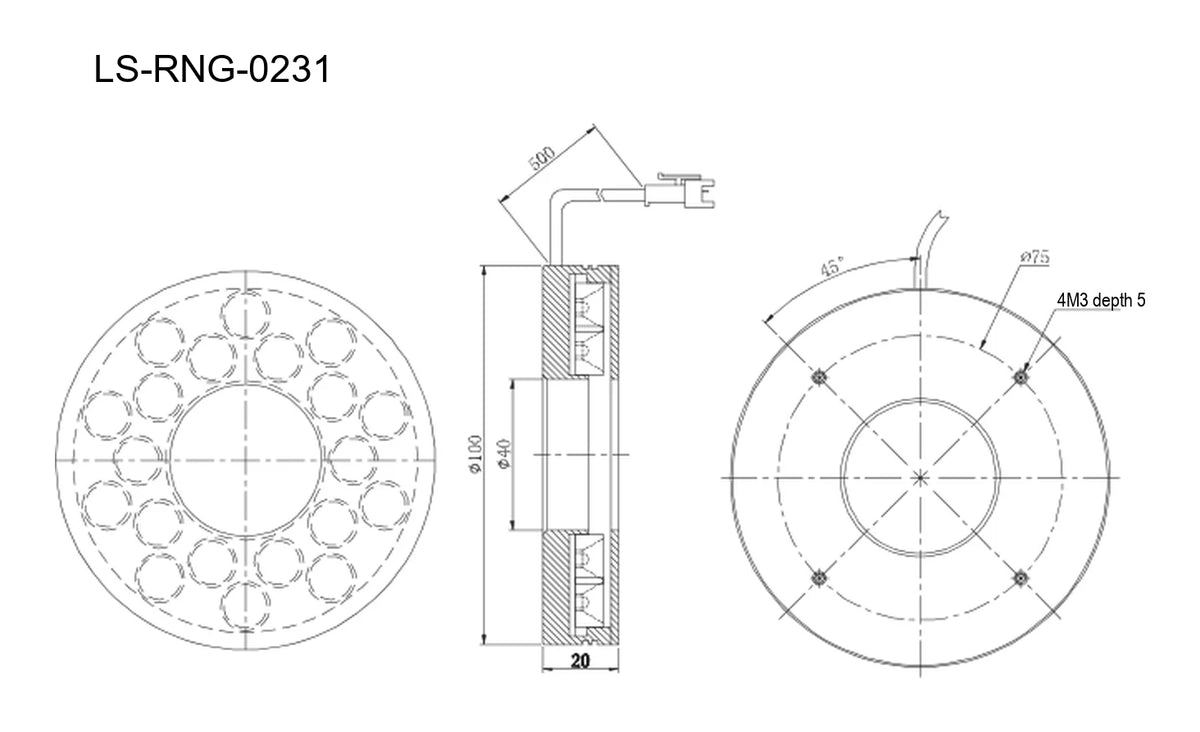

Mechanical
| Inner diameter (mm) | 40 |
|---|---|
| Outer diameter (mm) | 100 |
| Height (mm) | 20 |
| Shipping weight | 0.20 kg |
Other models in the High-brightness ring light (LS-RNG-S54) series
See all 3 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-RNG-0230 | Red, Green, Blue, White · Standard | $129.00 | Ships in 2-3 weeks | View |
| LS-RNG-0232 | Red, Green, Blue, White · Standard | $219.00 | Ships in 2-3 weeks | View |
