Representative photo of this series
Ring lights
180 x 126 mm ring light, 60° (LS-RNG-0201)
Model LS-RNG-0201
- ColourRed, Blue, Green, White
- Voltage24V
- Power11.0W/13.7W
- Angle60°
$459.00
Ships in 2-3 weeks
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Ring light is made of high brightness LED array, easy to install, diffuser and multiple angle models can be optional.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-RNG-0201 |
|---|---|
| Note | UV & IR light can be customized as required. |
| Angle | 60° |
Interfaces and I/O
| Cable polarity | 1: +, 2: NC, 3: - |
|---|---|

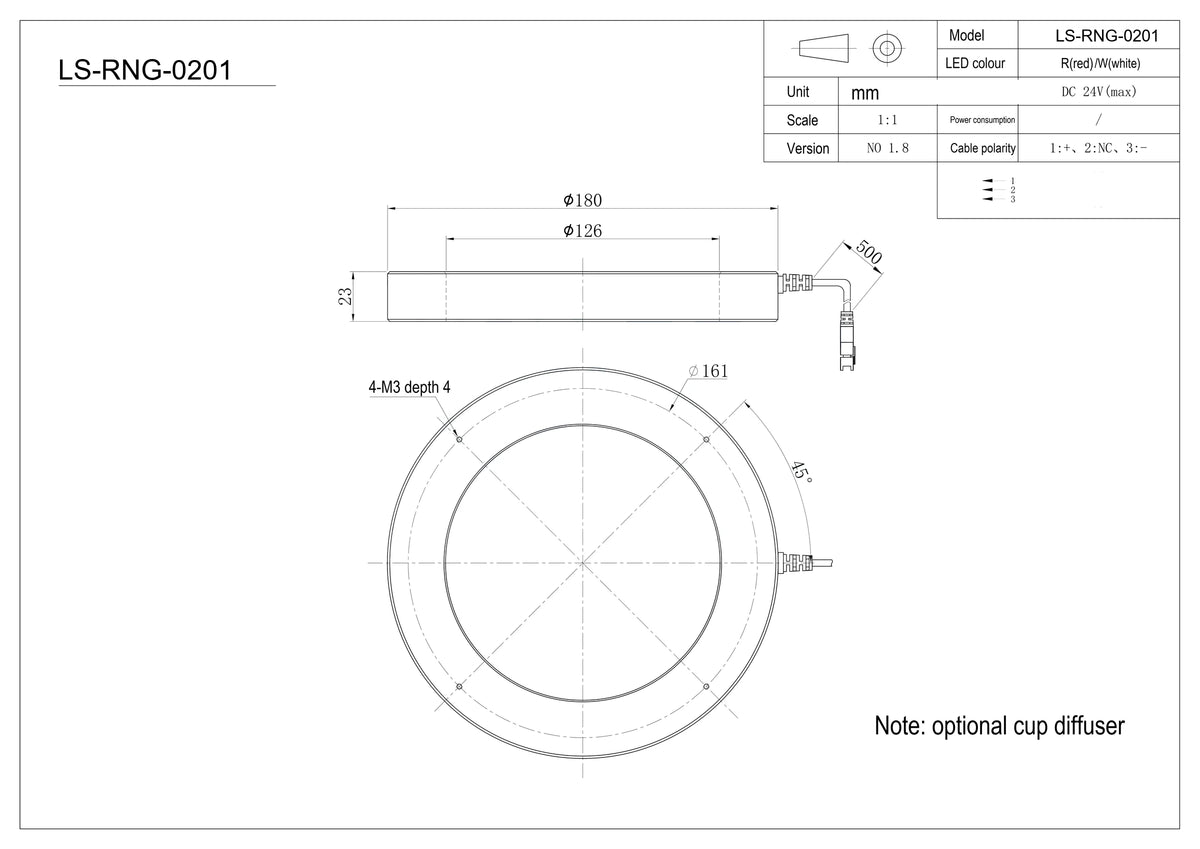

| Cable (mm) | 500 (drawing) |
Light
| LED colour | R(red)/W(white) |
|---|---|
| Diffuser | Cup-shaped diffuser optional |
Electrical
| Voltage | 24V |
|---|---|
| Power | 11.0W/13.7W |
| Input voltage | DC 24V (max) |
Mechanical
| Dimension | Out dia. 180,Inner dia. 126,Height 23mm |
|---|---|
| Mounting holes | 4-M3 depth 4 |
| Shipping weight | 0.50 kg |
