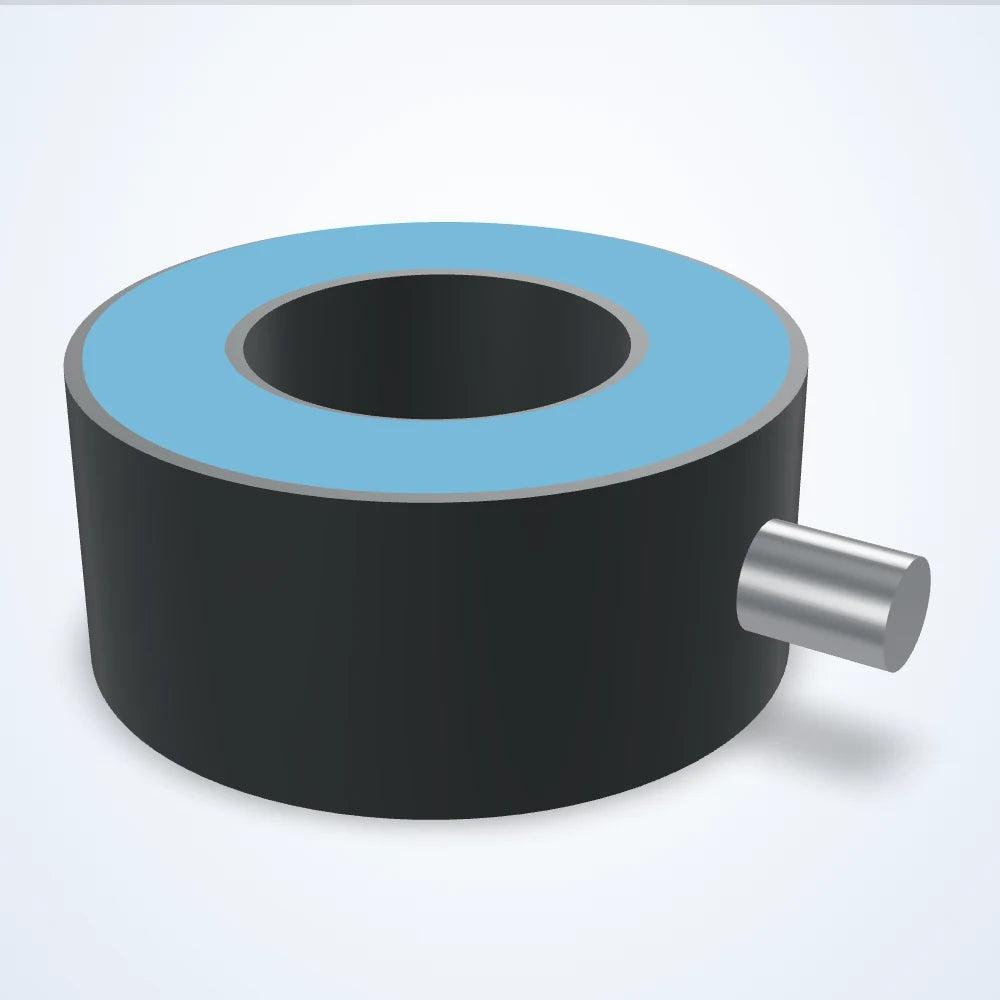

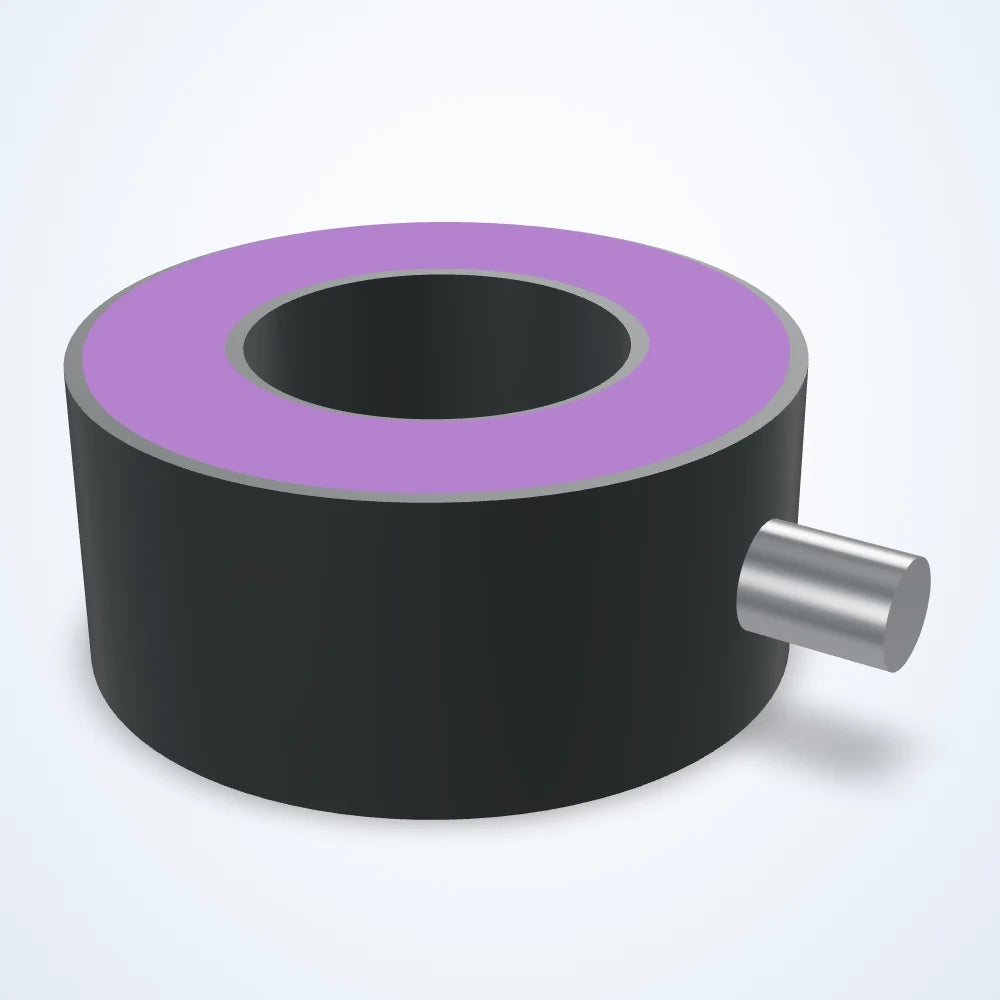

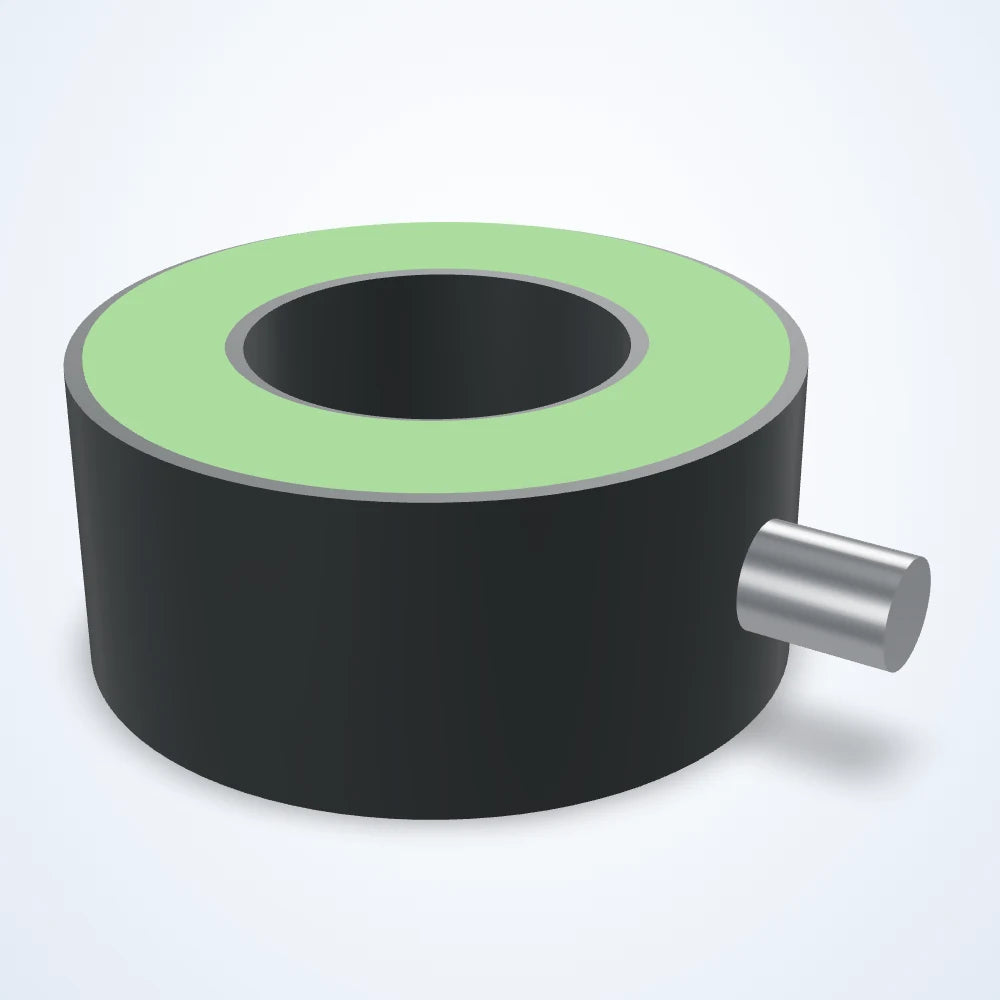

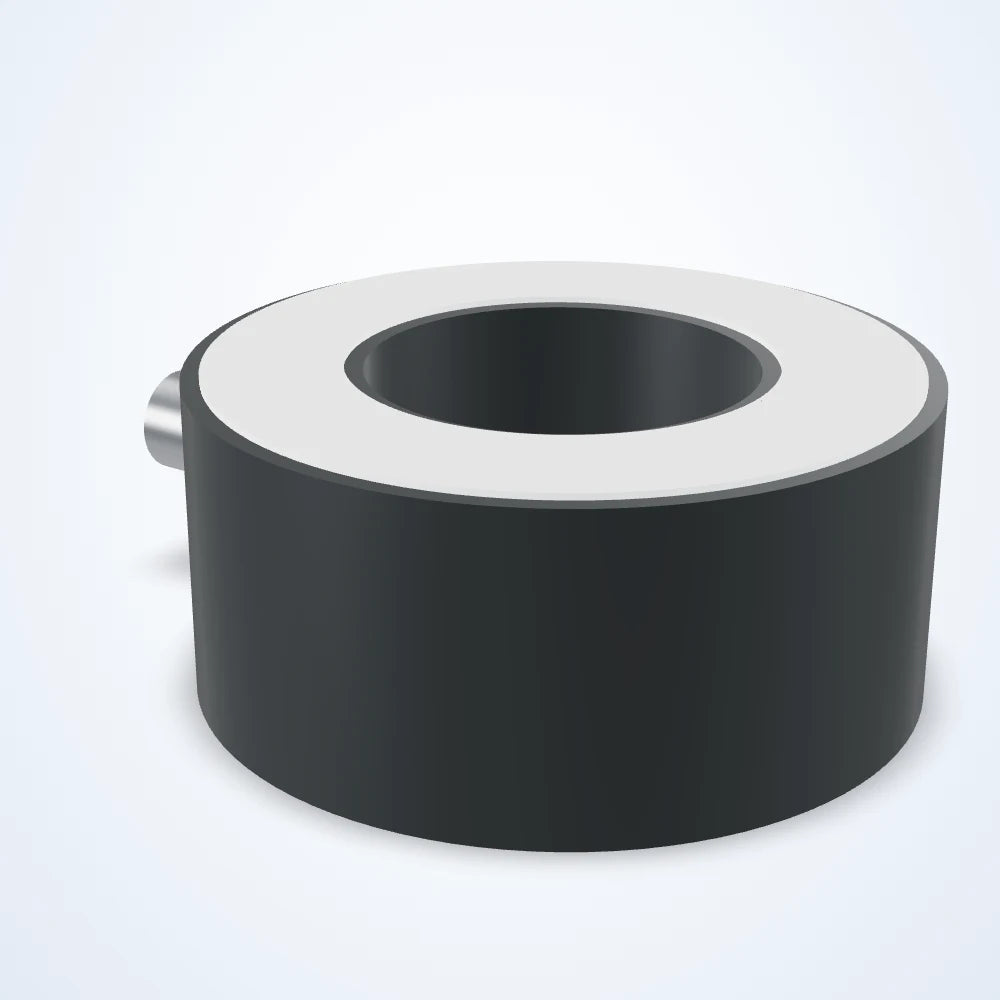

Rendered illustration: the actual product may differ in appearance.
Ring lights
Ring light, 80 mm, IP65 (LS-RNG-0041)
Model LS-RNG-0041
- ColourWhite, Infrared, Red, Green, UV, Blue
- Voltage24 VDC
- TypeStandard
- Wavelength365 nm, 395 nm, 850 nm, 940 nm
from $529.00 USDQuote
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 1-2 weeks
Choose a configuration 16 available
Configuration LS-RNG-0041-01 $889.00
List price of this configuration; the final quote follows.
Collect parts in your quote list; we reply with price, lead time and volume pricing.
LED ring light that mounts around the lens for even, on-axis illumination of the field of view. 24 VDC supply; connection: 5 pin m12 male a-coded. Choose colour, lens / beam angle below (16 configurations) and request a quote.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-RNG-0041 |
|---|---|
| Connection at light | Connectorized |
| Driver included | Included |
| Driver location | Internal |
| Intensity control | Analog Voltage, Integrated Potentiometer |
| Operating modes | Constant On, Constant On – Dimmable, Overcurrent Strobe, Overcurrent Strobe - Dimmable |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 100 |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | 5 Pin M12 Male A-Coded |
|---|
Light
| Diffused | Not Diffused |
|---|
Environment and compliance
| Operating temperature | -10 to 40 °C |
|---|---|
| IP rating | IP65 |
| Storage temperature | -20 to 70 °C |
| Compliance | CE, IEC 62471, RoHS |
Electrical
| Voltage | 24 VDC |
|---|---|
| Strobe trigger input | NPN Trigger, PNP Trigger |
| Max overcurrent strobe current | 350 mA |
| Max overcurrent strobe input power | 8 W |
| Maximum constant on current (mA) | 350 |
| Maximum current (overcurrent strobe) (mA) | 350 |
| Maximum input power constant on (W) | 8.4 |
| Maximum input power overcurrent strobe (W) | 8 |
| Maximum overcurrent strobe duty cycle (%) | 100 |
| Maximum overcurrent strobe frequency (Hz) | 4000 |
| Maximum overcurrent strobe latency (µs) | 10 |
| Minimum overcurrent strobe duration (µs) | 30 |
| NPN trigger current (mA) | 14 |
| NPN trigger voltage (V) | < 1 VDC |
| PNP trigger current (mA) | 17.6 |
| PNP trigger voltage (V) | 4-24 VDC |

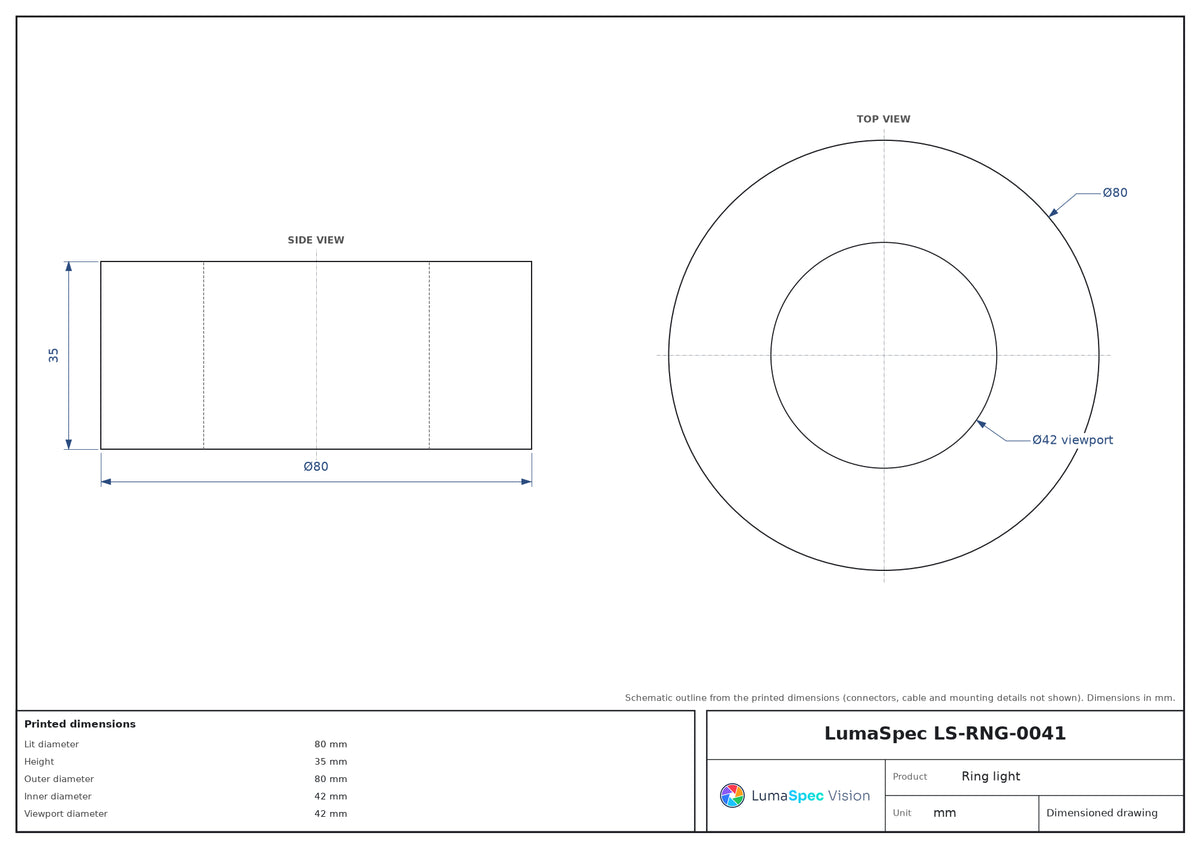

Mechanical
| Lit diameter (mm) | 80 |
|---|---|
| Height (mm) | 35 |
| Outer diameter (mm) | 80 |
| Inner diameter (mm) | 42 |
| Viewport diameter (mm) | 42 |
| Housing | Aluminum |
| Mounting | T-Slot Channels, Tapped Holes |
