Ring lights

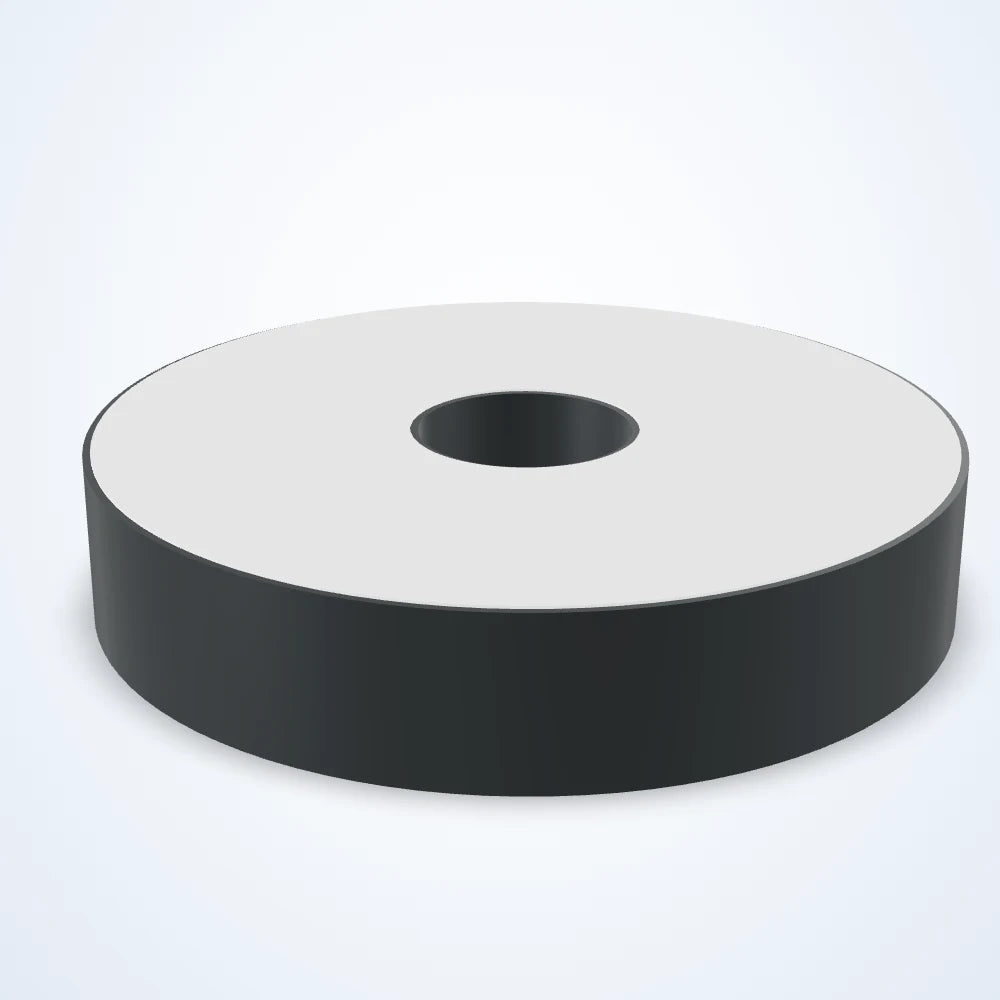

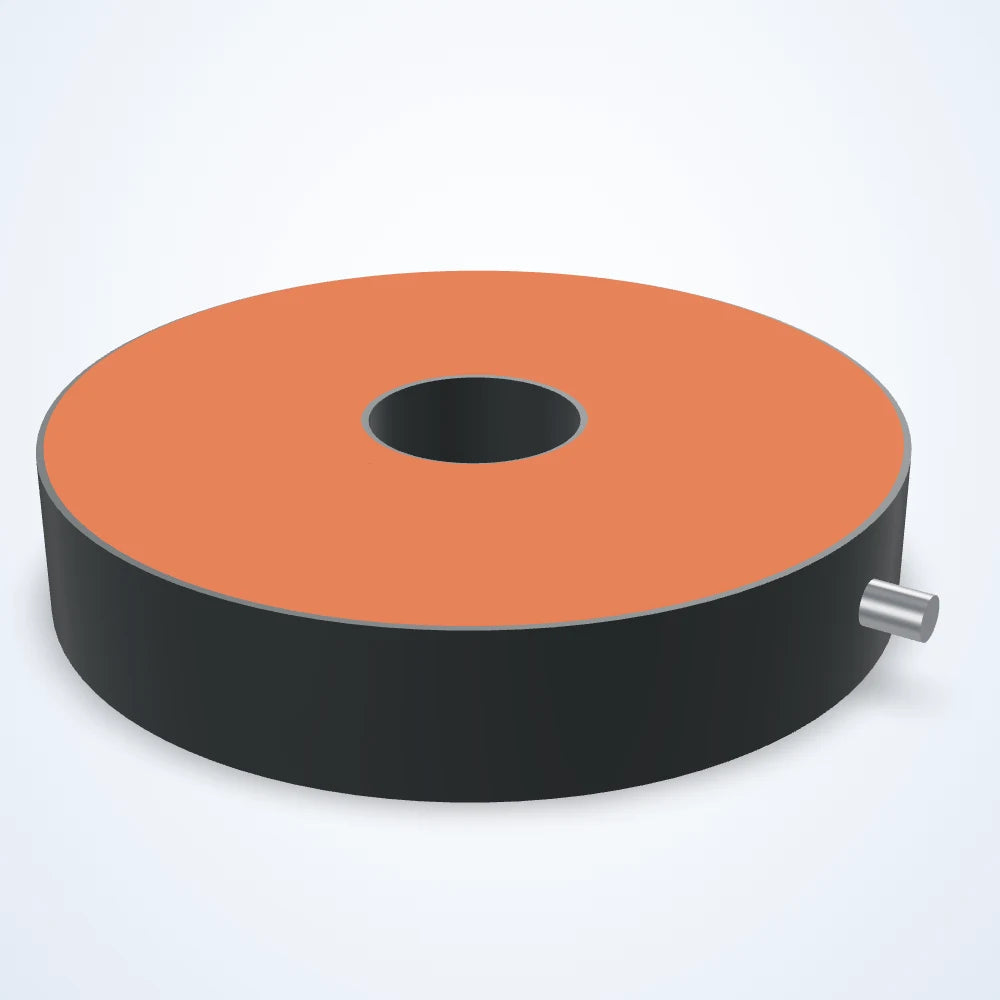

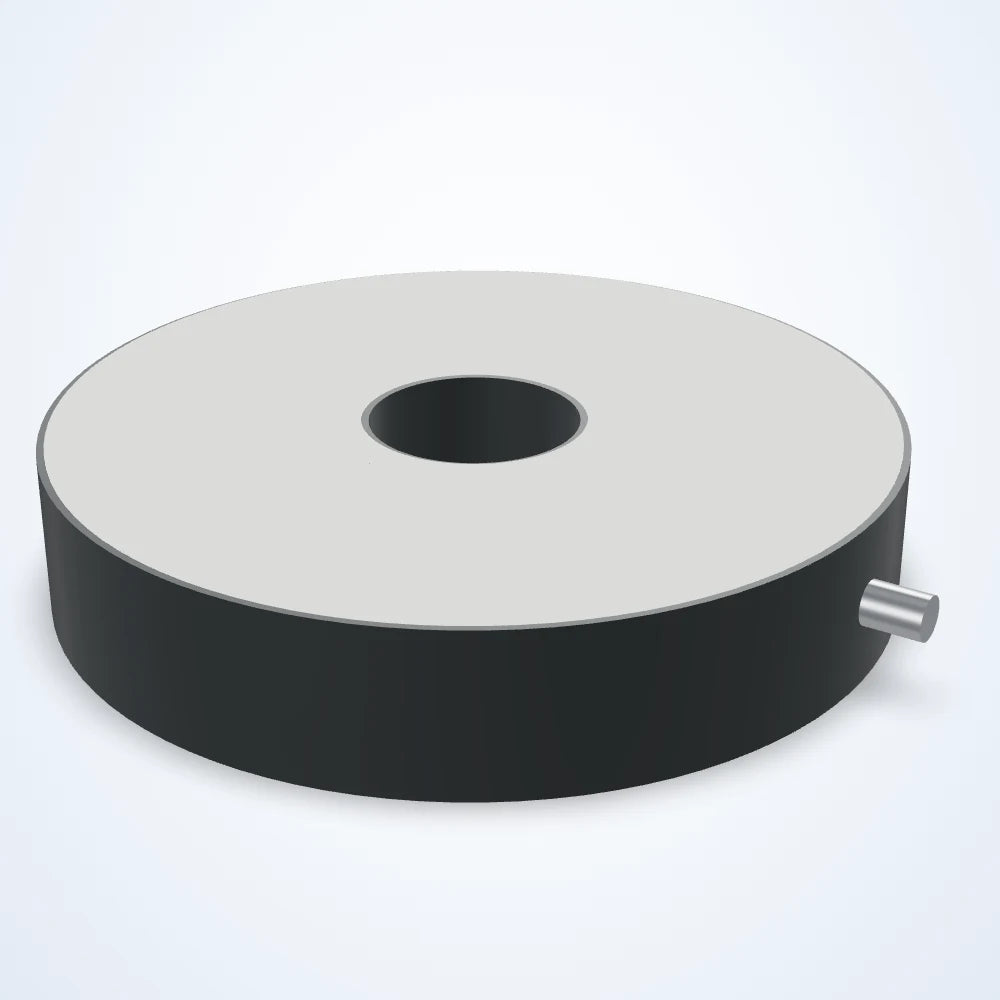

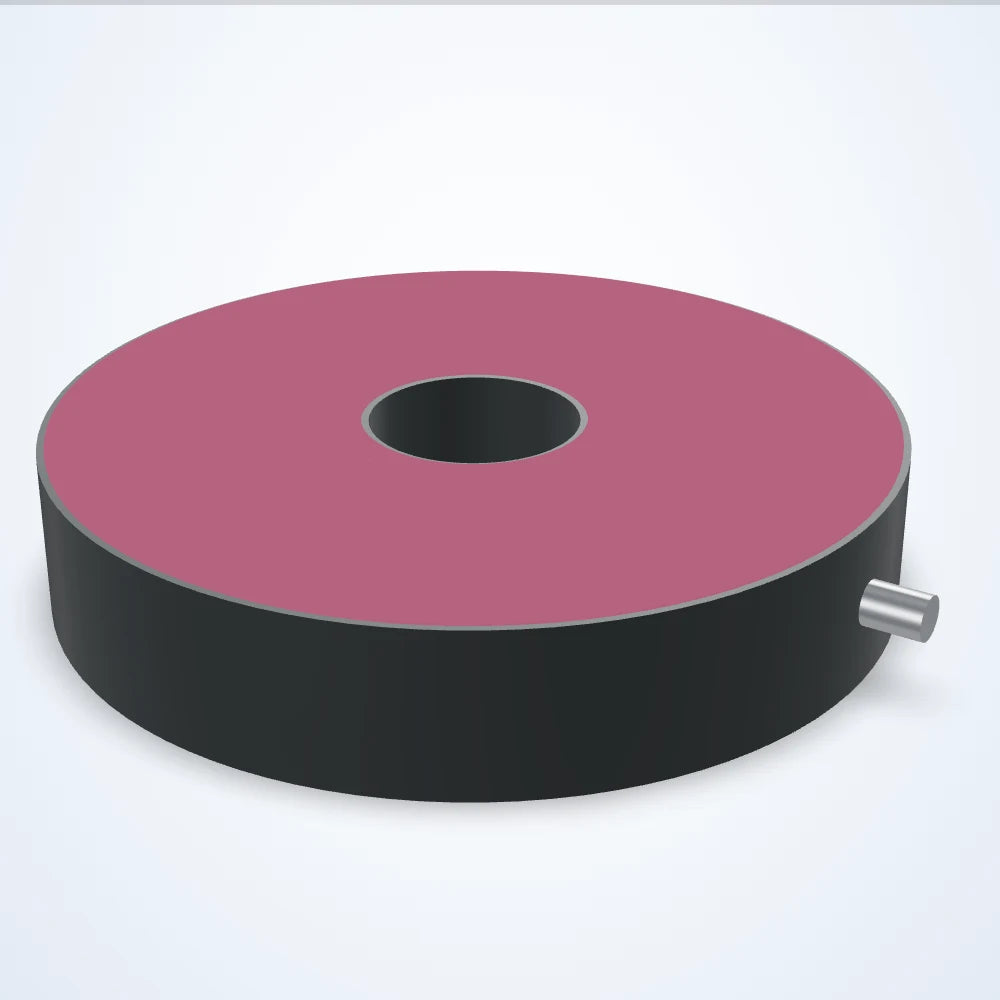

Ring light, 230 mm (LS-RNG-0034)
Model LS-RNG-0034
- ColourWhite, Red, Infrared, Blue
- Voltage24 VDC
- TypeStandard
- Wavelength850 nm
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 1-2 weeks
Choose a configuration 33 available
Configuration LS-RNG-0034-01 $1,249.00
List price of this configuration; the final quote follows.
Collect parts in your quote list; we reply with price, lead time and volume pricing.
LED ring light that mounts around the lens for even, on-axis illumination of the field of view. 24 VDC supply; connection: 5 pin m12 male a-coded. Choose colour, lens / beam angle, operating modes, polarized below (33 configurations) and request a quote.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-RNG-0034 |
|---|---|
| Connection at light | Connectorized |
| Driver included | Included |
| Driver location | Internal |
| Intensity control | Analog Voltage |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 5 / 100 (by configuration) |
Interfaces and I/O
| Connector | 5 Pin M12 Male A-Coded |
|---|
Light
| Diffused | Not Diffused |
|---|
Environment and compliance
| Operating temperature | -10 to 40 °C |
|---|---|
| IP rating | IP65 |
| Storage temperature | -20 to 70 °C |
| Compliance | CE, CSA, FCC, IEC 62471, RoHS, UL |
Electrical
| Voltage | 24 VDC |
|---|---|
| Strobe trigger input | NPN Trigger, PNP Trigger |
| Maximum constant on current (mA) | 1400 (by configuration) |
| Maximum current (overcurrent strobe) (mA) | 2300 / 13000 (by configuration) |
| Maximum input power constant on (W) | 34 (by configuration) |
| Maximum input power overcurrent strobe (W) | 37 / 312 (by configuration) |
| Maximum overcurrent strobe duration (ms) | 8 / 50 (by configuration) |
| Maximum overcurrent strobe duty cycle (%) | 5 / 10 (by configuration) |
| Maximum overcurrent strobe frequency (Hz) | 4000 |
| Maximum overcurrent strobe latency (µs) | 6 |
| Maximum strobe current (mA) | 1400 (by configuration) |
| Maximum strobe duration (ms) | No Limit (by configuration) |
| Maximum strobe duty cycle (%) | 100 (by configuration) |
| Maximum strobe frequency (Hz) | 4000 (by configuration) |
| Maximum strobe input power (W) | 34 (by configuration) |
| Maximum strobe latency (µs) | 30 (by configuration) |
| Minimum overcurrent strobe duration (µs) | 10 / 25 (by configuration) |
| Minimum strobe duration (µs) | 30 (by configuration) |
| NPN trigger current (mA) | 10 |
| NPN trigger voltage (V) | < 1 VDC |
| PNP trigger current (mA) | 13.4 |
| PNP trigger voltage (V) | 3.3-24 VDC |
Mechanical
| Lit diameter (mm) | 227.5 |
|---|---|
| Height (mm) | 45 |
| Outer diameter (mm) | 230 |
| Inner diameter (mm) | 56.5 |
| Viewport diameter (mm) | 142 |
| Housing | Aluminum |
| Mounting | T-Slot Channels |
LS-RNG-0034
See this component from every angle.
Dimension-based illustration; details may differ from the product. Verify the dimensioned drawing.
Dimension-based 3D
FROM THE PRINTED SPECIFICATIONS
- Lit diameter (mm)
- 227.5
- Voltage
- 24 VDC
- Connector
- 5 Pin M12 Male A-Coded
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
