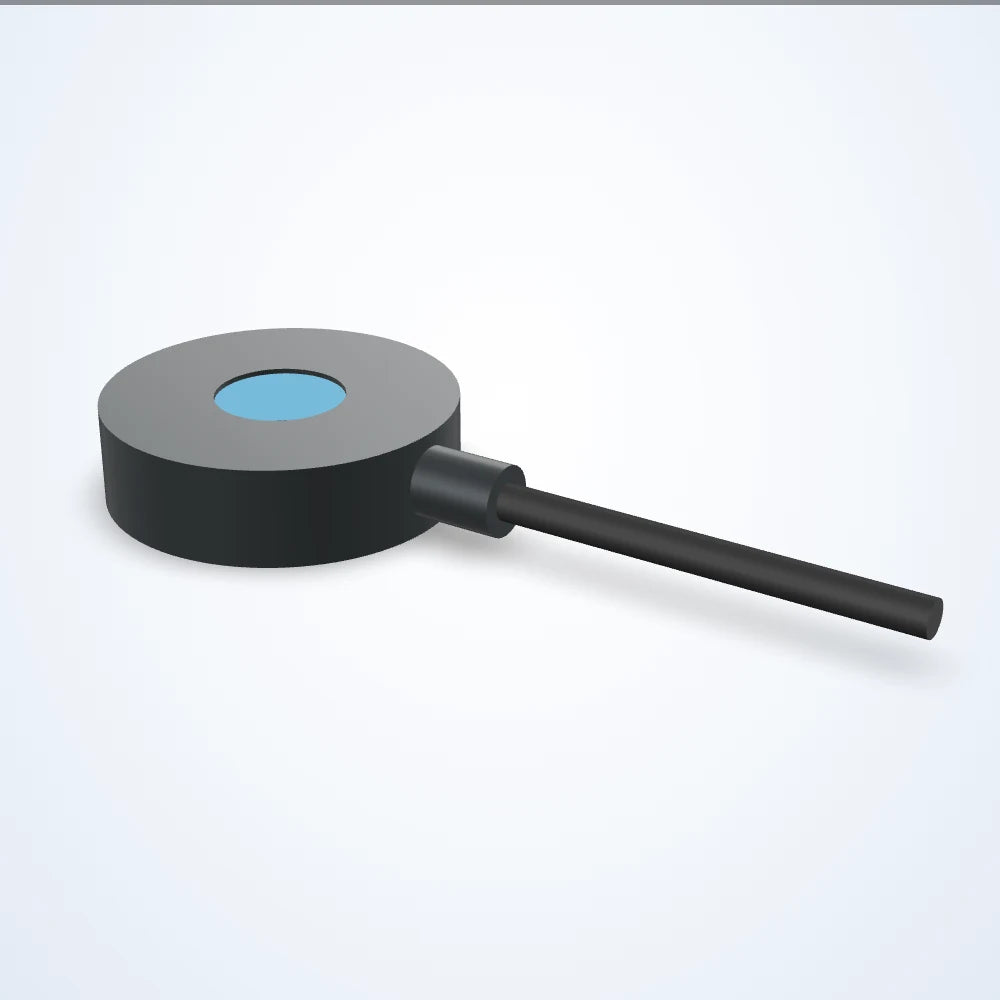

  • Dark field ring light, 50-280 mm (LS-RNG-0030)

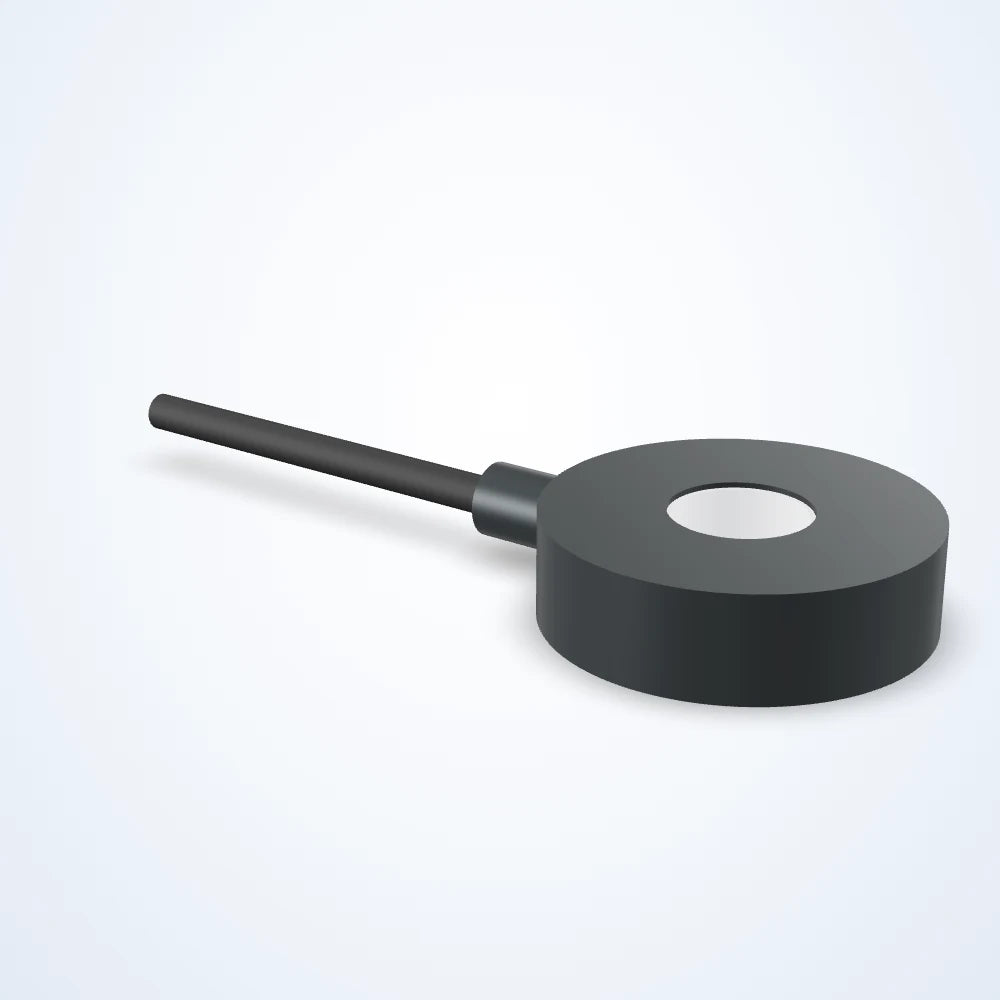

  • Dark field ring light, 50-280 mm (LS-RNG-0030) - view 2
  • Dark field ring light, 50-280 mm (LS-RNG-0030) - view 3
  • Dark field ring light, 50-280 mm (LS-RNG-0030) - view 4

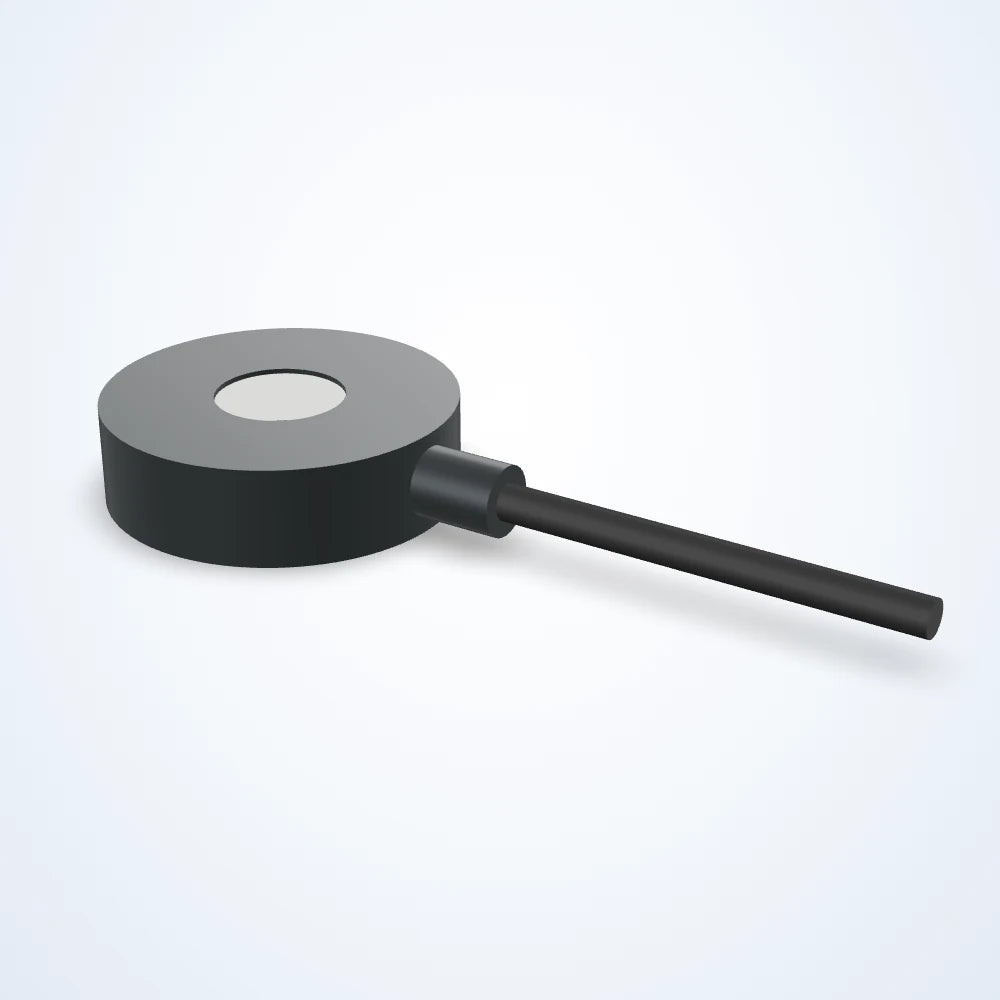

  • Dark field ring light, 50-280 mm (LS-RNG-0030) - view 5

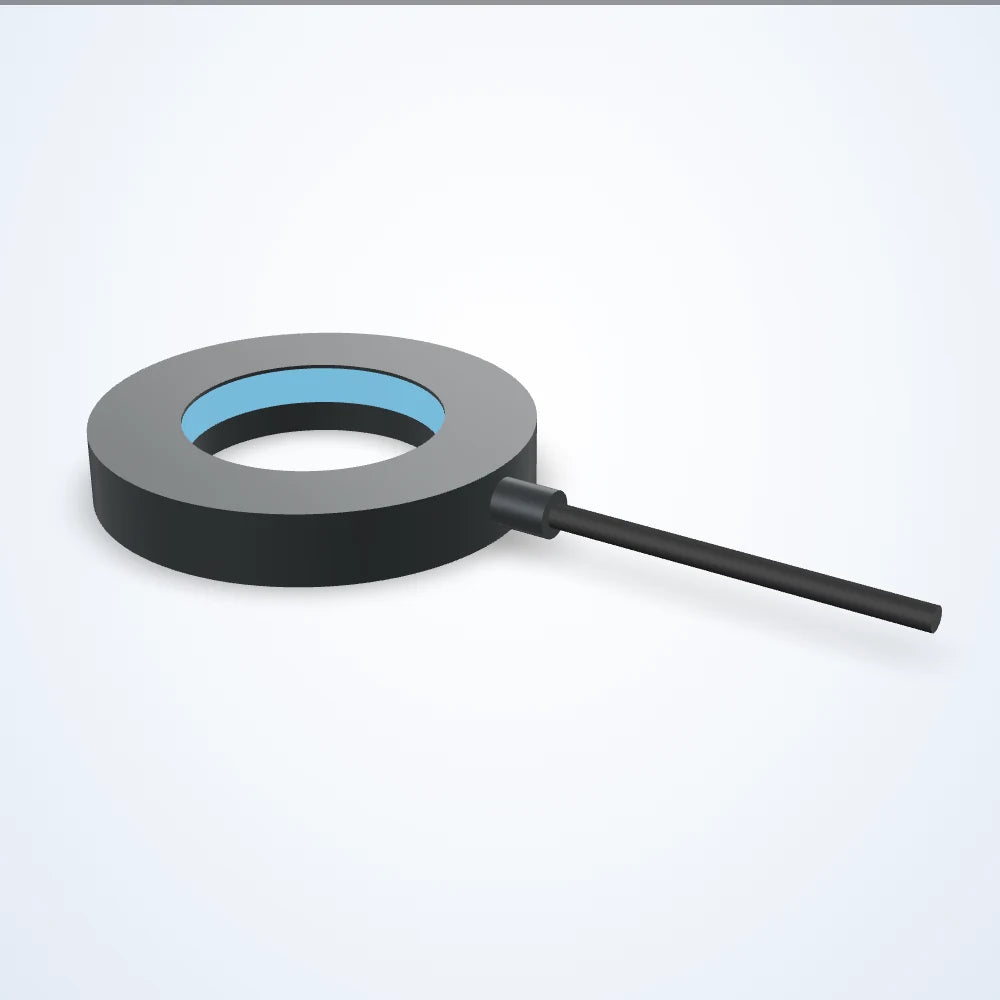

  • Dark field ring light, 50-280 mm (LS-RNG-0030) - view 6

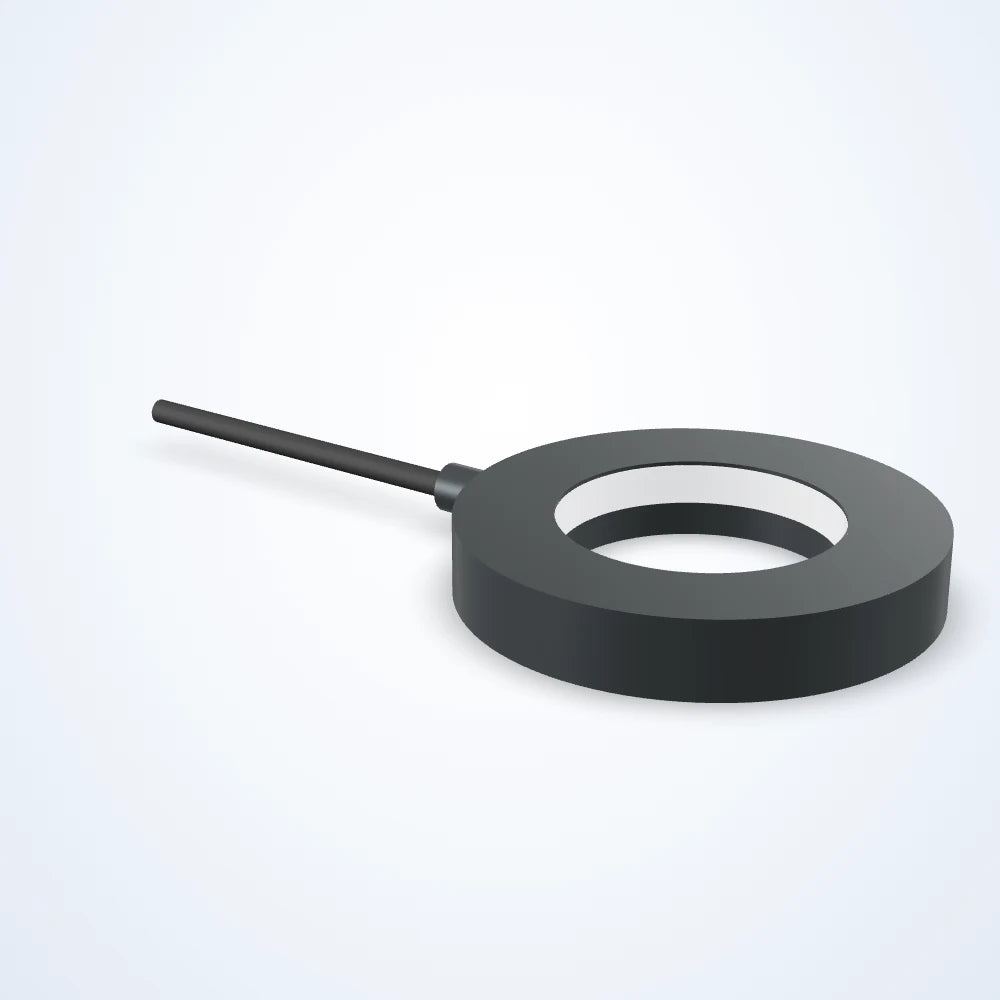

  • Dark field ring light, 50-280 mm (LS-RNG-0030) - view 7

Rendered illustration: the actual product may differ in appearance.

Ring lights

Dark field ring light, 50-280 mm (LS-RNG-0030)

Model LS-RNG-0030

  • ColourWhite, Red, Green, Blue
  • Voltage24 VDC
  • TypeLow-angle
  • Height14.1 / 15.5 / 15.7 (by configuration)
from $729.00 USDQuote

Quoted price: add to quote for lead time and volume pricing.

Built to order: ships in about 4-5 weeks

Choose a configuration 76 available

Colour
Outer diameter (mm)
Lit diameter (mm)
Driver included
Driver location
Intensity control
Strobe trigger input
Version

Configuration LS-RNG-0030-01 $859.00

List price of this configuration; the final quote follows.

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

Dark field ring light, 50-280 mm (LS-RNG-0030)LS-RNG-0030

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LED ring light that mounts around the lens for even, on-axis illumination of the field of view. 24 VDC supply; connection: flying leads. Choose colour, outer diameter, lit diameter, driver included, driver location below (76 configurations) and request a quote.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-RNG-0030
Connection at lightHardwired
CollimatedNot Collimated
Daisy chainNo
Direct connectNo
Maximum duty cycle (%)100
PolarizedNot Polarized

Interfaces and I/O

ConnectorFlying Leads
Cable length (mm)2000

Light

DiffusedNot Diffused

Environment and compliance

Operating temperatureup to 60 °C
IP ratingIP67
ComplianceCE, IEC 62471, RoHS
Minimum operating temperature32 °F (0 °C)

Electrical

Voltage24 VDC
Maximum constant on current (mA)220 to 970 (by configuration)
Maximum current (overcurrent strobe) (mA)8000 (by configuration)
Maximum input power constant on (W)5.3 to 23.3 (by configuration)
Maximum input power overcurrent strobe (W)125 (by configuration)
Maximum overcurrent strobe frequency (Hz)2000 (by configuration)
Maximum overcurrent strobe latency (µs)60 (by configuration)
Minimum overcurrent strobe duration (µs)30 (by configuration)
NPN trigger voltage (V)< 1 VDC (by configuration)
PNP trigger current (mA)5 (by configuration)
PNP trigger voltage (V)2.5-30 VDC (by configuration)

Mechanical

Height (mm)14.1 / 15.5 / 15.7 (by configuration)
Inner diameter (mm)18.3 to 241.4 (by configuration)
Viewport diameter (mm)18.3 to 241.4 (by configuration)
HousingAluminum
MountingTapped Holes

LS-RNG-0030

See this component from every angle.

Dimension-based illustration; details may differ from the product. Verify the dimensioned drawing.

Explore the visual library
LS-RNG-0030 — Ring lights, View 1 Dimension-based 3D

FROM THE PRINTED SPECIFICATIONS

Voltage
24 VDC
Connector
Flying Leads
Height (mm)
14.1 / 15.5 / 15.7 (by configuration)
Inner diameter (mm)
18.3 to 241.4 (by configuration)

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
