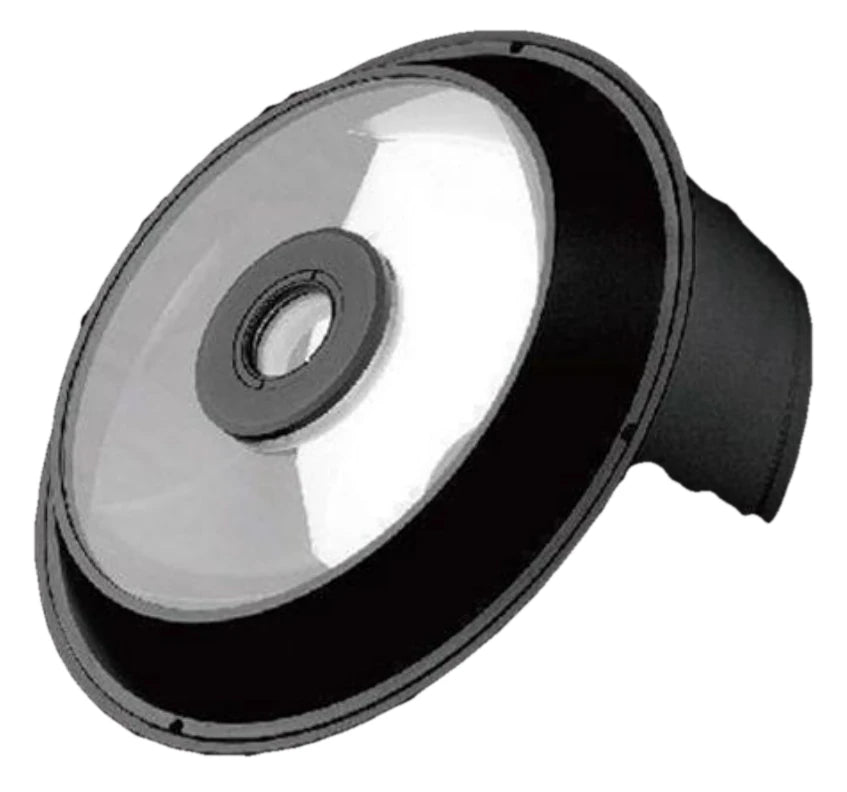

Representative photo of this series
360° inspection lenses
360° imaging system (outer surface), 1/1.8", C-Mount, working distance 9-50 mm (LS-PCL-0082)
Model LS-PCL-0082
- MountC-mount
- Sensor1/1.8"
- Working distance9-50 mm
- ApertureF8.0-16
$909.00
Ships in 2-3 weeks
0.94 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Compact, high-resolution 360° side-view imaging system for small objects, with optional working distances of 19-46.2 mm, 19-45.4 mm, 14-48.2 mm, 9-45.4 mm and 9-46.5 mm; suitable for inspecting drug containers, plastic caps, preforms, bottlenecks, screws and other threaded objects; min. object diameter 4.5 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-PCL-0082 |
|---|---|

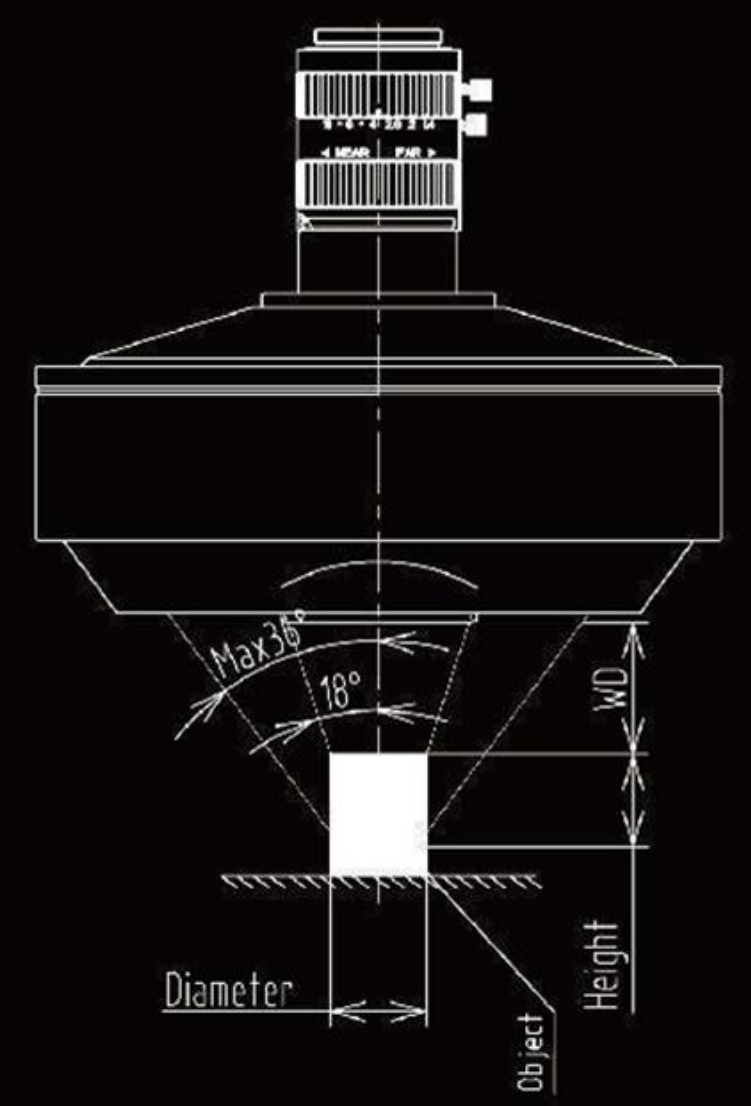

| Viewing angle | 18°, max 36° (from drawing) |
| F/NO | 8.0-16 |
Optics
| Image size (dia.) | dia. 5.32 |
|---|---|
| Working distance | 9-50 |
| Aperture | F8.0-16 |
Sensor and imaging
| Sensor | 1/1.8" |
|---|---|
| Sensor format | 1/1.8" |
Mechanical
| Mount | C-Mount |
|---|---|
| Shipping weight | 0.94 kg |
Other models in the 360° imaging system (outer surface) (LS-PCL-S16) series
See all 5 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-PCL-0079 | 1/3", C-Mount | $909.00 | Ships in 2-3 weeks | View |
| LS-PCL-0080 | 1/1.8", C-Mount | $909.00 | Ships in 2-3 weeks | View |
| LS-PCL-0081 | 2/3", C-Mount | $909.00 | Ships in 2-3 weeks | View |
| LS-PCL-0083 | 1/3", C-Mount | $909.00 | Ships in 2-3 weeks | View |
