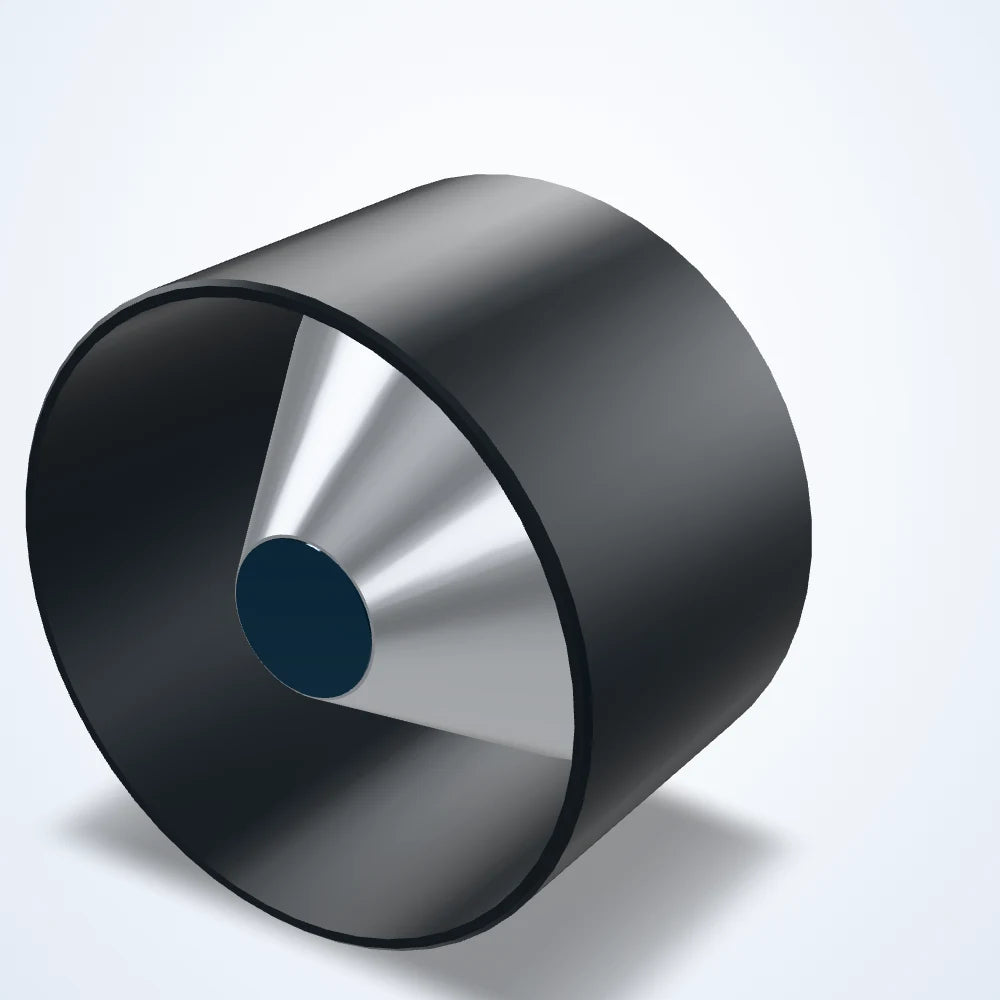

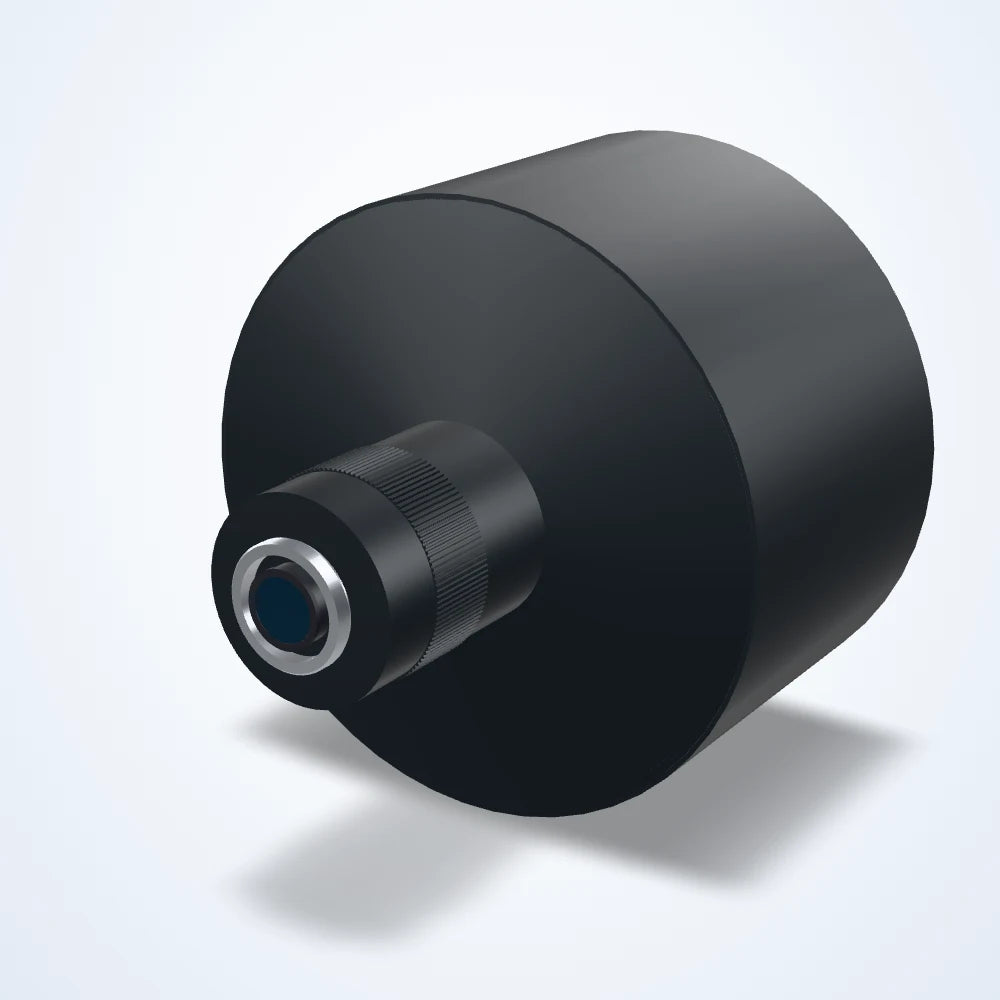

Rendered illustration: the actual product may differ in appearance.
360° inspection lenses
360° multi-angle inspection lens, 2/3", WD 1.5 mm (LS-PCL-0065)
Model LS-PCL-0065
- MountC-mount
- Sensor2/3"
- Working distance1.5-5 mm
- Aperture6.5
$2,690.00
Ships in 3-4 weeks
3.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
360° multi-angle inspection lens for inspecting the wall of round parts in one image. Working distance 1.5 mm; covers sensors up to 2/3"; corrected for 400-600 nm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-PCL-0065 |
|---|
Optics
| Working distance | 1.5-5 mm |
|---|---|
| MTF | >135 |
| Aperture | 6.5 |
| Best Aperture(F/#) | 6.5 |
Sensor and imaging
| Sensor format | 2/3" |
|---|
Light
| Wavelength range | 400–600 nm |
|---|
Electrical
| Llluminator voltage | 24 V |
|---|---|
| Llluminator Power | 18 W |
Mechanical
| Diameter | 123 mm |
|---|---|
| Length | 256 mm |
| Mount | C-Mount |
| Shipping weight | 3.00 kg |
Other models in the 360° inspection lenses (LS-PCL-S09) series
See all 3 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-PCL-0067 | 2/3" | $1,750.00 | Ships in 3-4 weeks | View |
| LS-PCL-0066 | 2/3" | $1,750.00 | Ships in 3-4 weeks | View |
