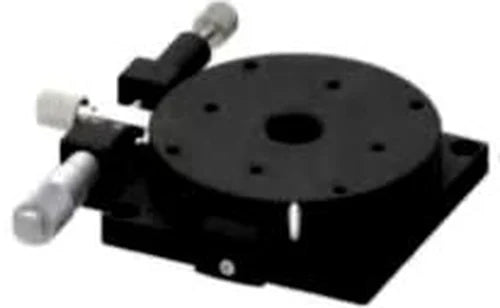

Precision manual rotary stage, 40 / 60 / 80 mm (LS-MNT-0171)
Model LS-MNT-0171
- MaterialAluminum alloy, anodized
- Travel360 deg coarse, +/-5 deg fine
- Load39.2 N (4 kgf)
- TypeRotary stages
$269.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.83 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Precision manual rotary stage, 40 / 60 / 80 mm. Long-precision rotary fine-adjustment stages, 40 to 100 mm. At a glance: travel 360 deg coarse, +/-5 deg fine; load 39.2 N (4 kgf); plate height 25 mm; size 80 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

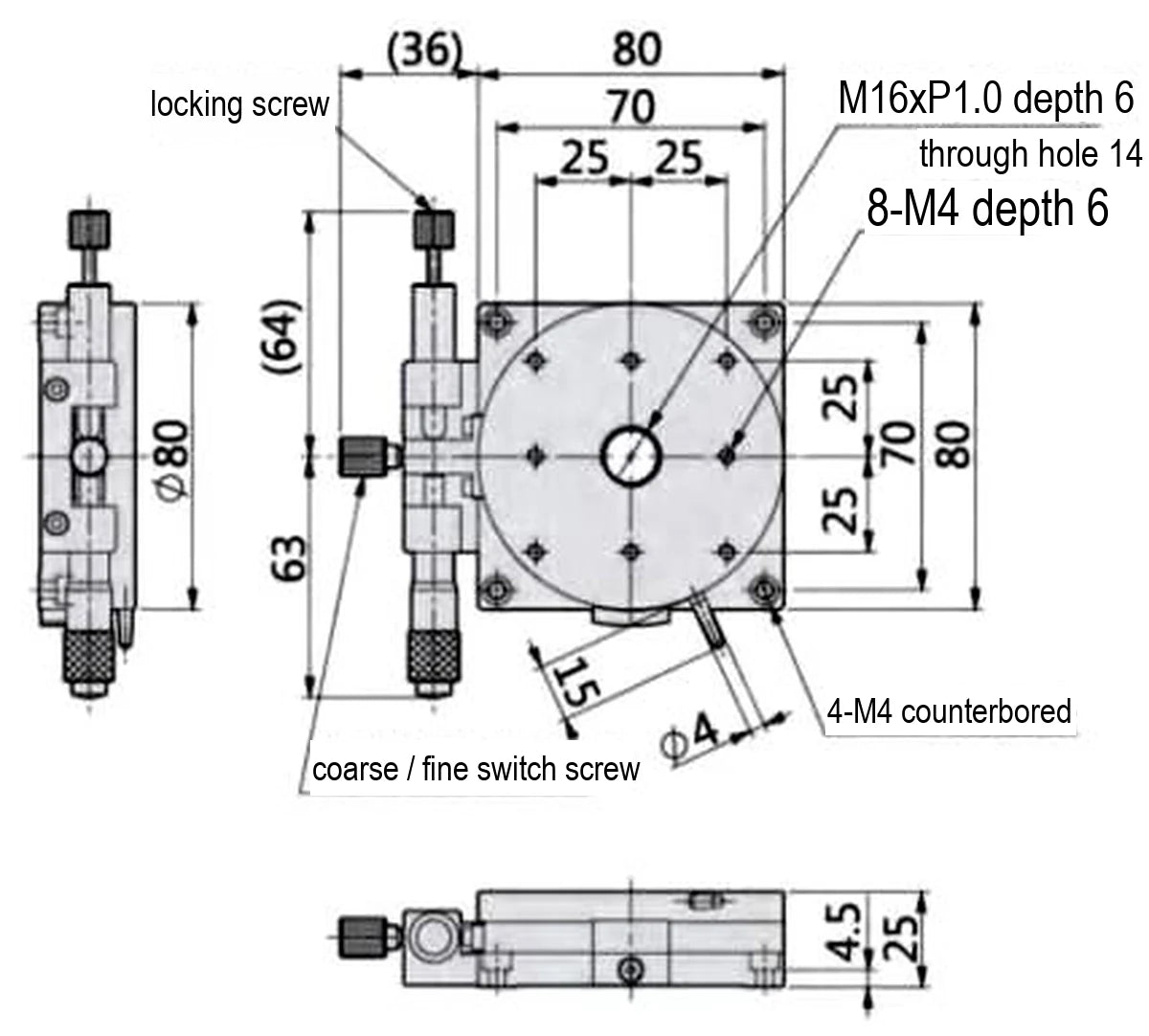

Specifications
General
| Model | LS-MNT-0171 |
|---|---|
| Drive | Differential head |
| Min. scale | 5' |
| Concentricity | 0.03 mm |
| Parallelism | 0.04 mm |
| Differential head step | 0.67' |
| Type | Precision rotary sliding plate (long precision rotary fine-adjustment slide) |
Mechanical
| Travel | 360 deg coarse, +/-5 deg fine |
|---|---|
| Material | Aluminum alloy, anodized |
| Size | 80 mm |
| Plate size | dia. 80 mm |
| Load | 39.2 N (4 kgf) |
| Plate height | 25 mm |
| Weight | 0.52 kg |
| Shipping weight (estimated) | 0.83 kg |
