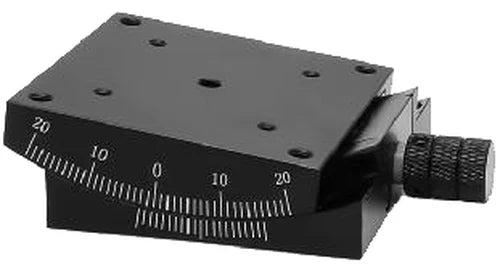

60 x 60 mm manual tilt (goniometer) stage (LS-MNT-0150)
Model LS-MNT-0150
- TypeSlope angle slide
- MaterialAnodized aluminum
- Load6 kg
- Plate size60 x 60 mm
$269.00
Ships in 2-3 weeks
0.8 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
60 x 60 mm manual tilt (goniometer) stage. Manual slope (tilt) slide, 60 type. At a glance: deflection 200"; load 6 kg; rotation center height 60 mm; plate size 60 x 60 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-MNT-0150 |
|---|---|
| Guide | Dovetail |
| Deflection | 200" |
| Angle | +/-20 deg |
| Drive position | Center drive |
| Slope | 200" |
| Min. calibration | 1 deg |
| Rotation center deviation | 0.1 mm |
| Min. reading | 5' |
| Drive | Worm screw |
| Min. adjustment | 30" |
| Type | Slope angle slide |

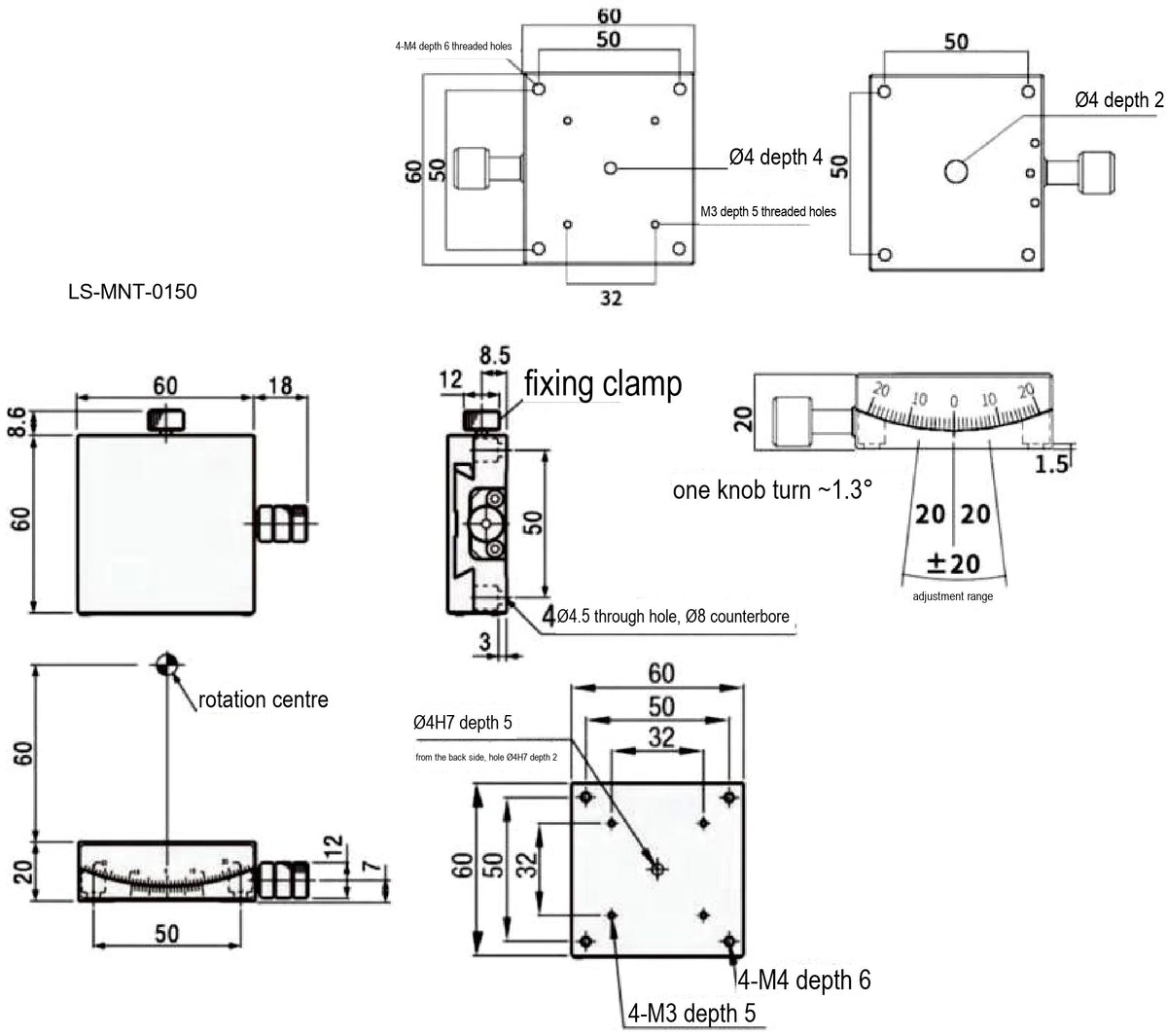

Mechanical
| Plate size | 60 x 60 mm |
|---|---|
| Rotation center height | 60 mm |
| Load | 6 kg |
| Material | Anodized aluminum |
| Weight | 0.5 kg |
| Shipping weight (estimated) | 0.80 kg |
