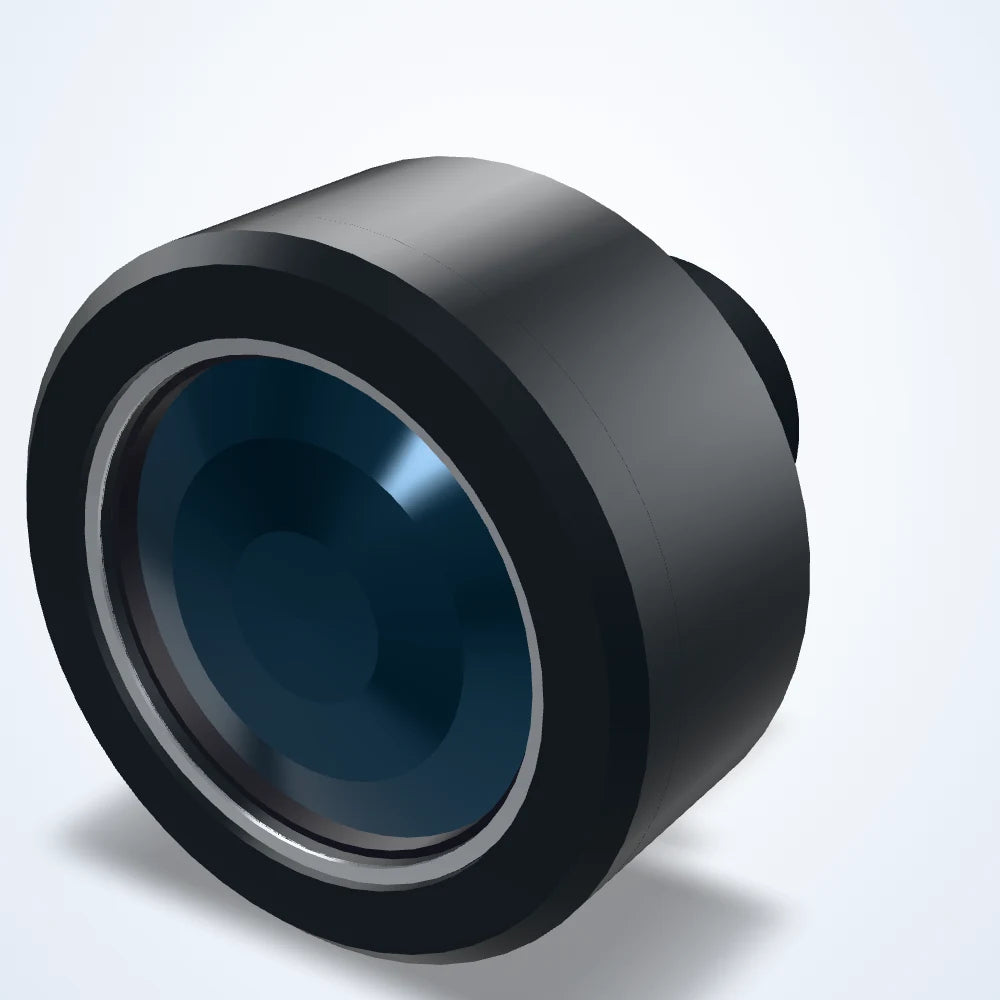

Rendered illustration: the actual product may differ in appearance.
M12 board lenses
8 mm M12 board lens, 1/3", 1 MP, F1.8 (LS-MBL-0049)
Model LS-MBL-0049
- Focal length8.0 mm
- MountM12
- Sensor1/3"
- ApertureF1.8
- Resolution1 Mega Pixels
Ships in 3-4 weeks
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
8 mm M12 board lens for board-level and embedded cameras. Focal length 8 mm; covers sensors up to 1/3"; resolves 1 MP; aperture F1.8; corrected for 400-950 nm; M12 mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-MBL-0049 |
|---|---|
| Min. object distance | 0.2 m |
Optics
| Focal length | 8.0 mm |
|---|---|
| Aperture | F1.8 |
Sensor and imaging
| Resolution | 1 Mega Pixels |
|---|---|
| Sensor format | 1/3" CCD/CMOS |
Light
| Wavelength range | 400-950 nm |
|---|
Mechanical
| Mount | M12 |
|---|---|
| Flange back length | 5.4 mm |
| Length | 22.0±0.3 mm |
| Shipping weight | 1.00 kg |
LS-MBL-0049

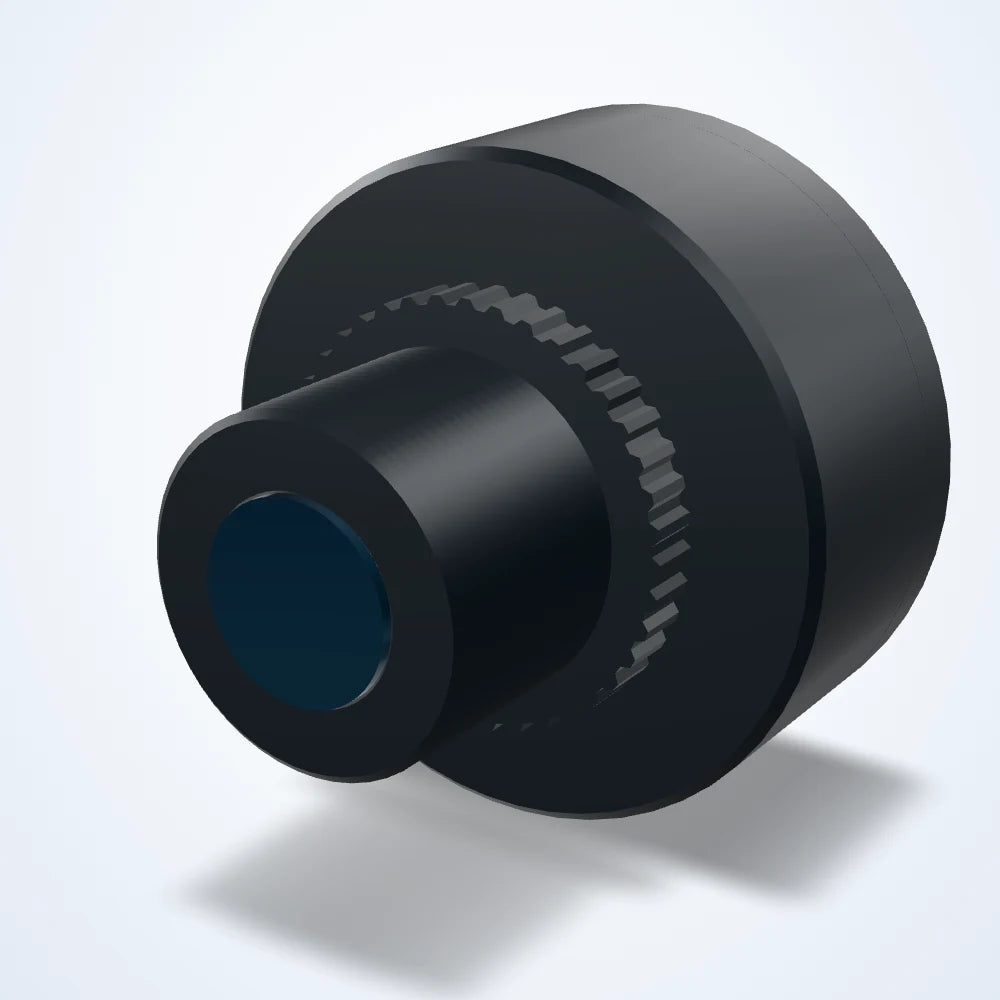

See this component from every angle.
Representative component form. Housing dimensions or proportions are inferred from comparable components; this is not a dimensioned product model. Use the printed specifications and drawing.
Concept illustration
FROM THE PRINTED SPECIFICATIONS
- Focal length
- 8.0 mm
- Sensor format
- 1/3" CCD/CMOS
- Mount
- M12
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
