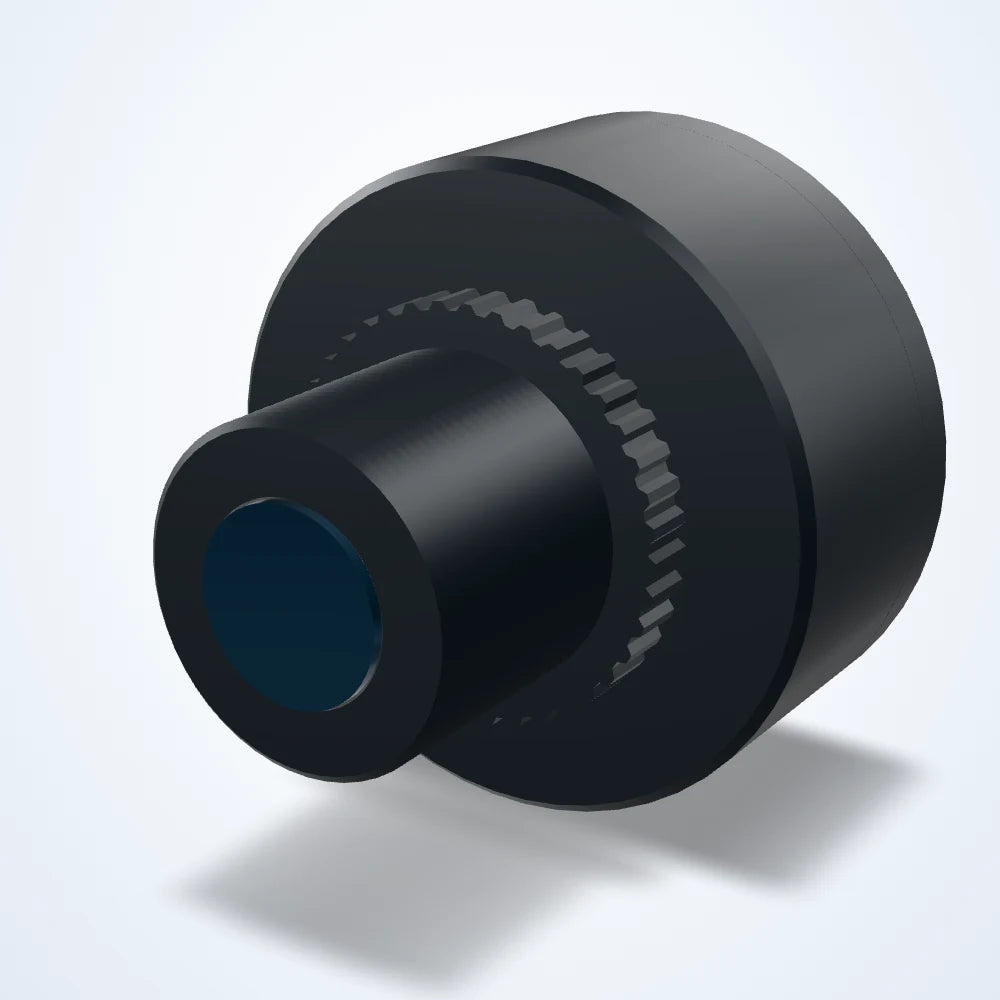

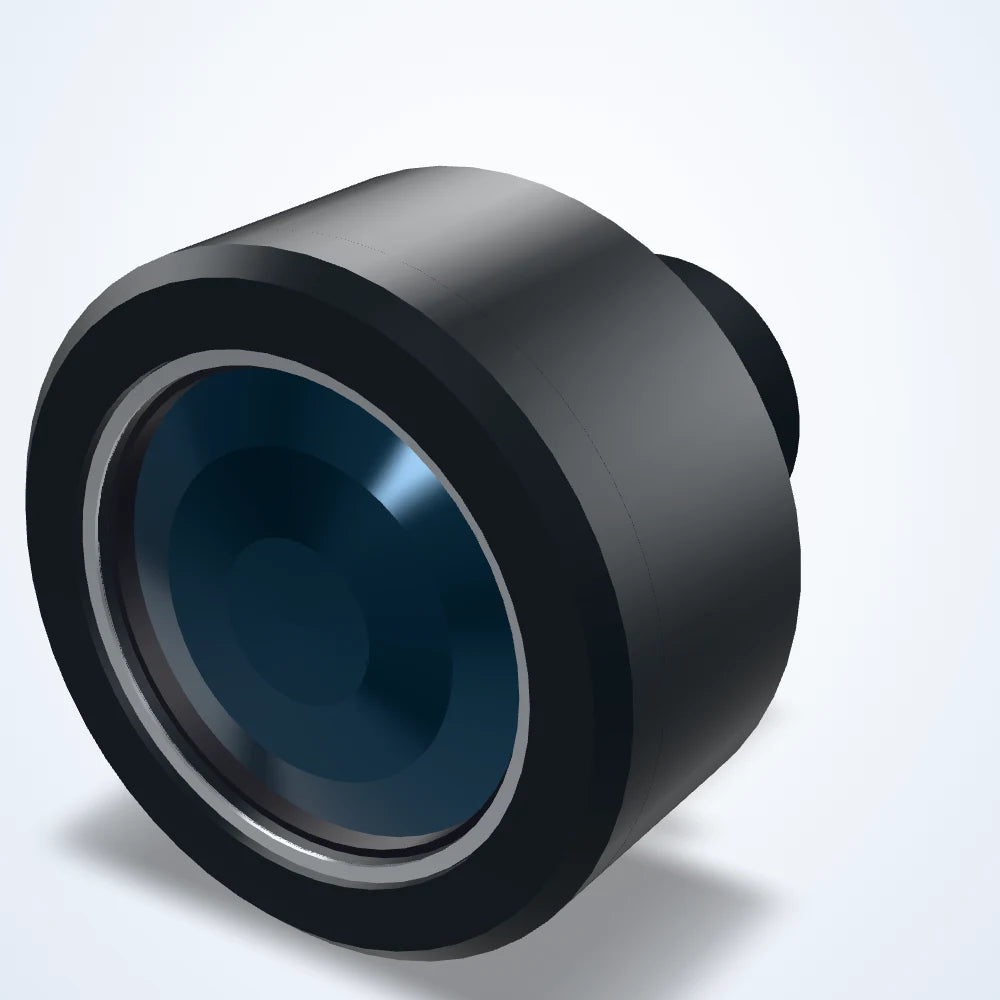

Rendered illustration: the actual product may differ in appearance.
M12 board lenses
3.3 mm M12 board lens, 1/2.3", 16 MP (LS-MBL-0035)
Model LS-MBL-0035
- Focal length3.3 mm
- MountM12
- Sensor1/2.3"
- Aperture2.8
- Resolution16MP
Ships in 3-4 weeks
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
3.3 mm M12 board lens for board-level and embedded cameras. Focal length 3.3 mm; covers sensors up to 1/2.3"; resolves 16 MP; M12 mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-MBL-0035 |
|---|---|
| Angle of view | 99° |
Optics
| Focal length | 3.3 mm |
|---|---|
| Aperture | 2.8 |
| Distortion | 1.00 % |
Sensor and imaging
| Sensor format | 1/2.3" |
|---|---|
| Resolution | 16MP |
| Pixel | 16 MP |
Mechanical
| Mount | M12 |
|---|---|
| Shipping weight | 1.00 kg |
LS-MBL-0035
See this component from every angle.
Representative component form. Housing dimensions or proportions are inferred from comparable components; this is not a dimensioned product model. Use the printed specifications and drawing.
Concept illustration
FROM THE PRINTED SPECIFICATIONS
- Focal length
- 3.3 mm
- Sensor format
- 1/2.3"
- Mount
- M12
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
Other models in the M12 S-mount board lenses (LS-MBL-S07) series
See all 7 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-MBL-0039 | 1.45 mm, 1/2.3", M12 | $88.00 | Ships in 3-4 weeks | View |
| LS-MBL-0040 | 1.45 mm, 1/2.3", M12 | $88.00 | Ships in 3-4 weeks | View |
| LS-MBL-0041 | 1.45 mm, 1/2.3", M12 | $88.00 | Ships in 3-4 weeks | View |
| LS-MBL-0038 | 1.5 mm, 1/2.3", M12 | $88.00 | Ships in 3-4 weeks | View |
| LS-MBL-0036 | 5.4 mm, 1/2.3", M12 | $100.00 | Ships in 3-4 weeks | View |
| LS-MBL-0037 | 7.2 mm, 1/2.3", M12 | $100.00 | Ships in 3-4 weeks | View |
