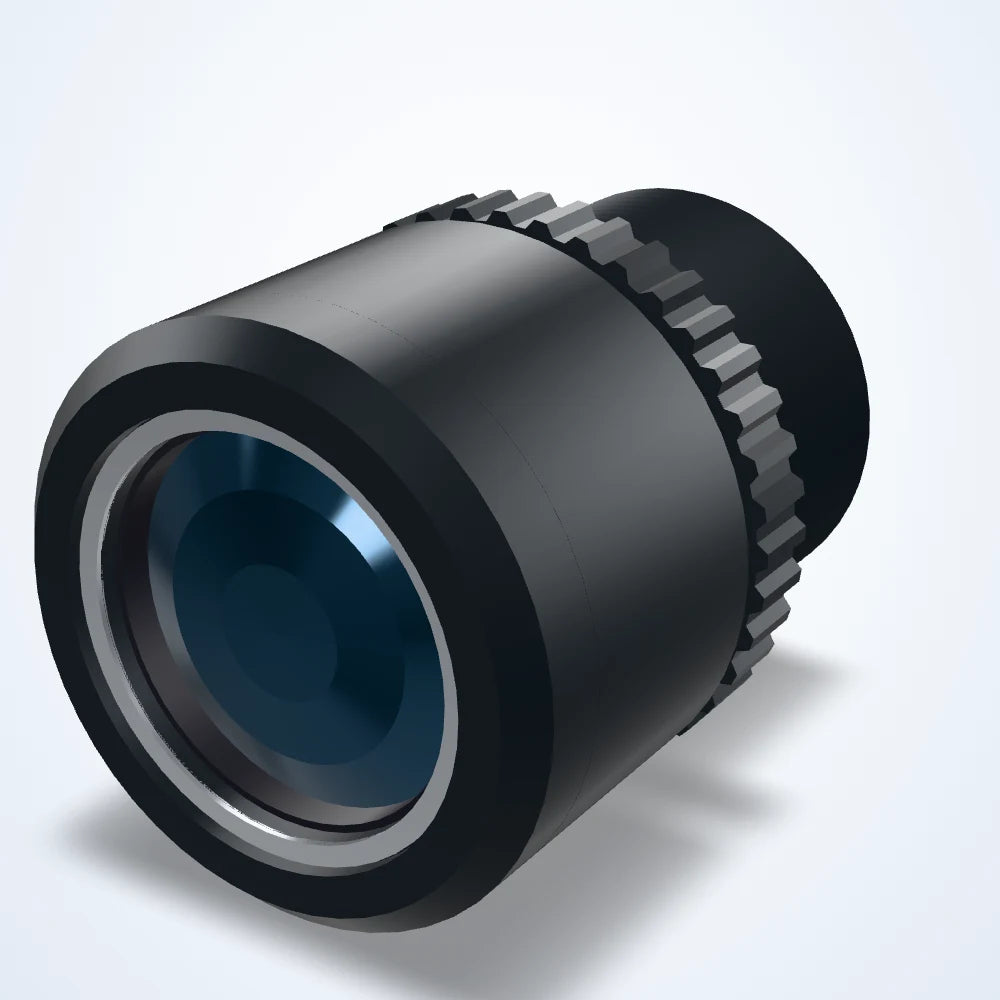

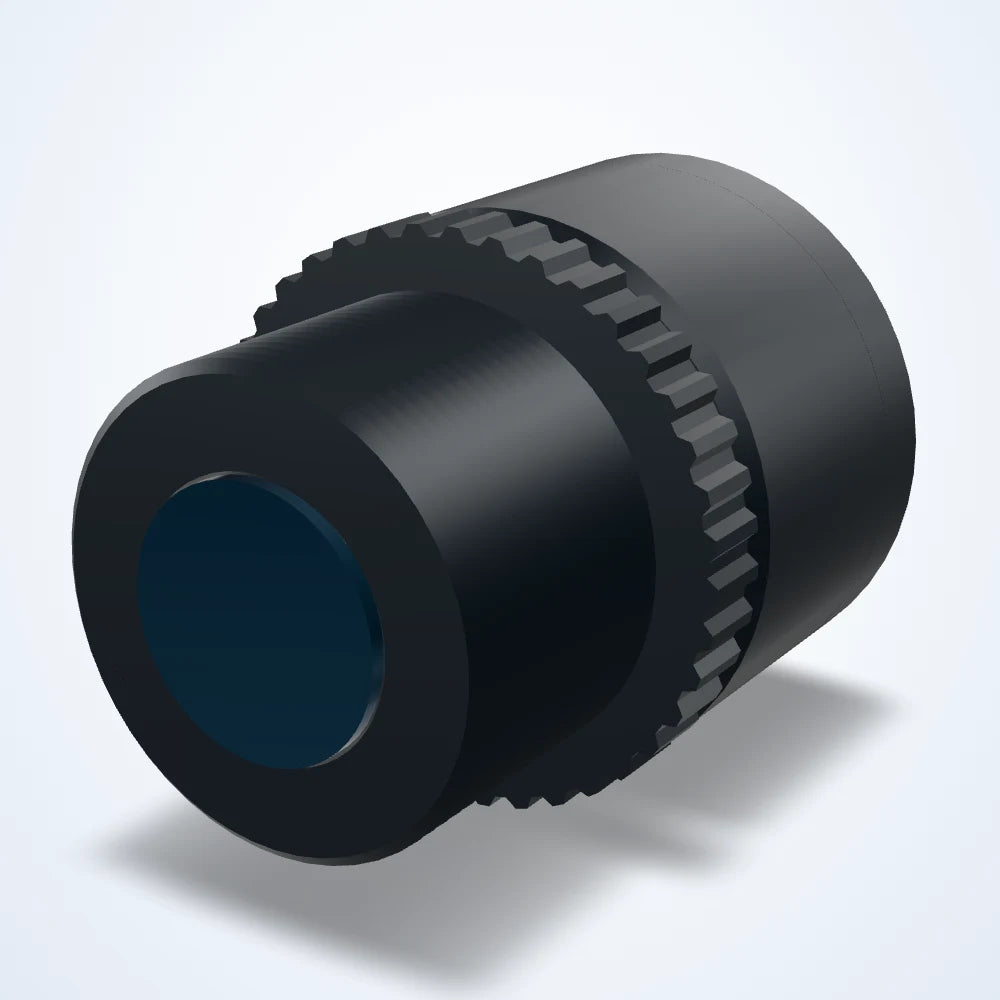

Rendered illustration: the actual product may differ in appearance.
M12 board lenses
6 mm M12 board lens, 1/1.8", 5 MP (LS-MBL-0027)
Model LS-MBL-0027
- Focal length06 mm
- MountM12
- Sensor1/1.8"
- Aperture2.8
- Resolution5MP
$60.00
Ships in 3-4 weeks
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
6 mm M12 board lens for board-level and embedded cameras. Focal length 6 mm; covers sensors up to 1/1.8"; resolves 5 MP; M12 mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-MBL-0027 |
|---|---|
| Angle of view | 73.6° |
Optics
| Focal length | 06 mm |
|---|---|
| Aperture | 2.8 |
| Distortion | 0.50 % |
Sensor and imaging
| Sensor format | 1/1.8" |
|---|---|
| Resolution | 5MP |
| Pixel | 5 MP |
Mechanical
| Mount | M12 |
|---|---|
| Shipping weight | 1.00 kg |
Other models in the M12 S-mount board lenses (LS-MBL-S05) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-MBL-0029 | 12 mm, 1/1.8", M12 | $60.00 | Ships in 3-4 weeks | View |
| LS-MBL-0030 | 16 mm, 1/1.8", M12 | $60.00 | Ships in 3-4 weeks | View |
| LS-MBL-0031 | 25 mm, 1/1.8", M12 | $60.00 | Ships in 3-4 weeks | View |
| LS-MBL-0028 | 8 mm, 1/1.8", M12 | $60.00 | Ships in 3-4 weeks | View |
| LS-MBL-0032 | 1.98 mm, 1/1.8", M12 | $88.00 | Ships in 3-4 weeks | View |
