Rendered illustration: the actual product may differ in appearance.
M12 board lenses

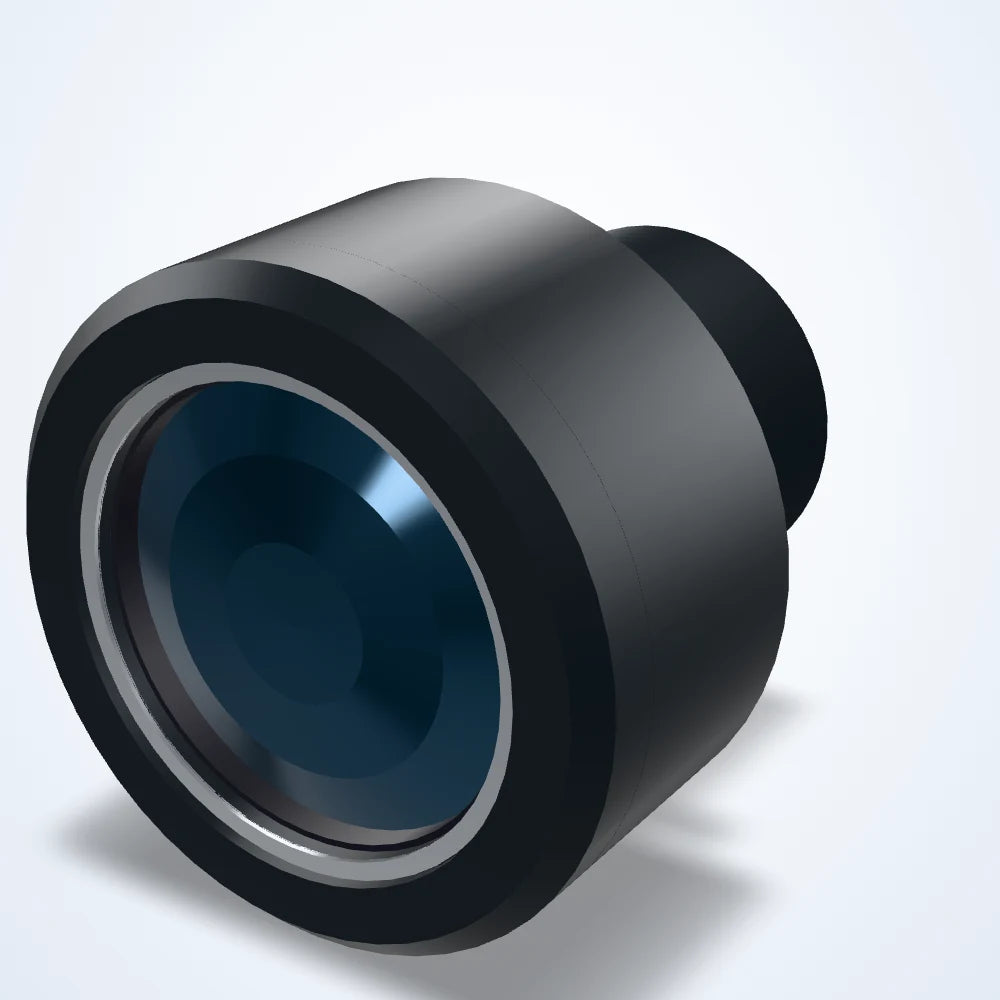

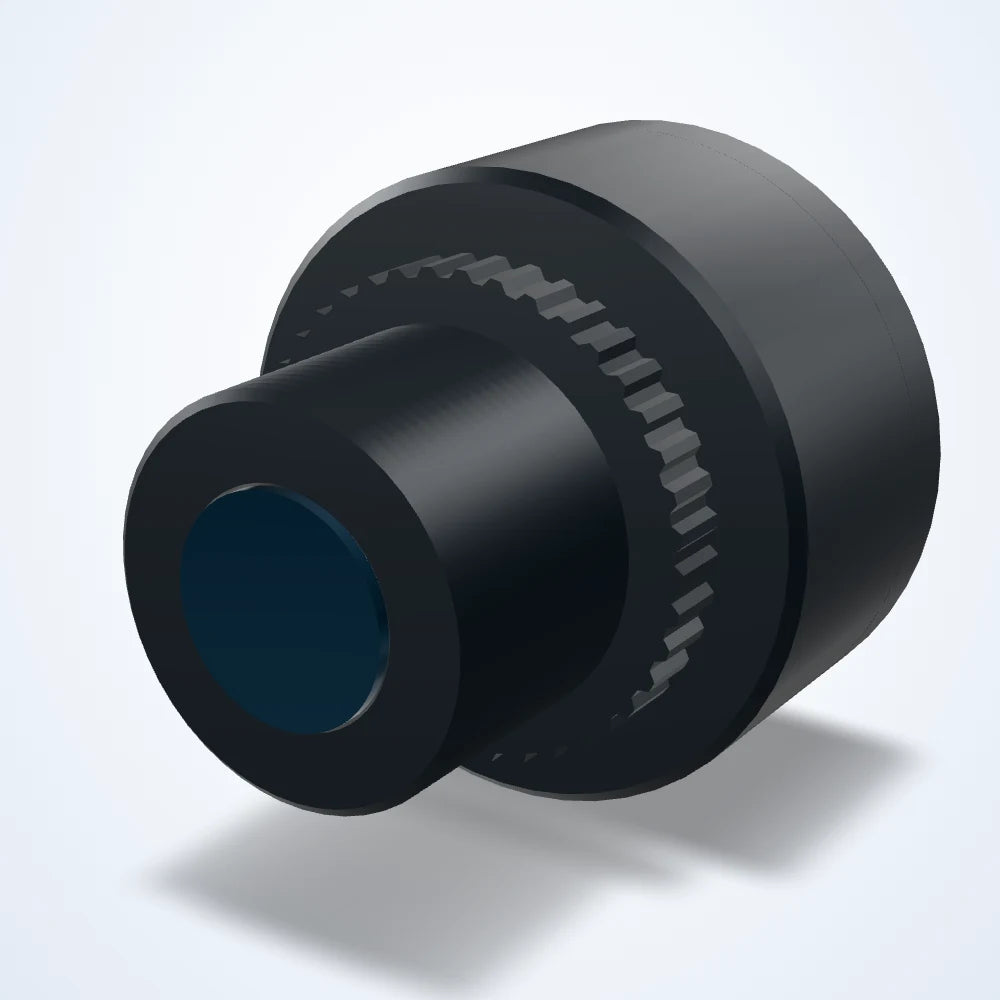

2.8 mm M12 board lens, 16 MP, F2.5 (LS-MBL-0019)
Model LS-MBL-0019
- Focal length2.8 mm
- MountM12
- Sensor1/2.3"
- Aperture2.5
- Resolution16 MP
$20.00
Ships in 3-4 weeks
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
2.8 mm M12 board lens for board-level and embedded cameras. Focal length 2.8 mm; resolves 16 MP; aperture F2.5; M12 mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-MBL-0019 |
|---|---|
| Angle of view | 150° |
Optics
| Focal length | 2.8 mm |
|---|---|
| Aperture | 2.5 |
| Distortion | 62.90 % |
Sensor and imaging
| Resolution | 16 MP |
|---|---|
| Sensor format | 1/2.3" |
| Pixel | 16 MP |
Mechanical
| Mount | M12 |
|---|---|
| Shipping weight | 1.00 kg |
