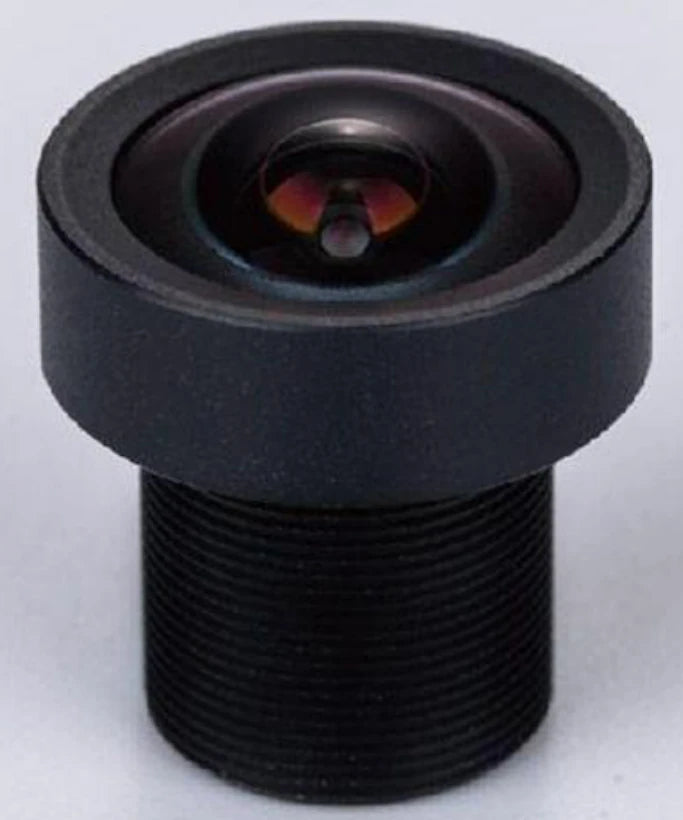

Representative photo of this series
M12 board lenses
5MP S-mount low distortion board lens, 6 mm, 1/1.8" (LS-MBL-0010)
Model LS-MBL-0010
- Focal length6 mm
- MountM12
- Sensor1/1.8"
- ApertureF2.8
- Resolution5MP
- Field of view60.6° x 46.6°
$89.00
Ships in 2-3 weeks
0.13 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
5MP S-mount (M12 x P0.5) industrial board lenses with ultra-low distortion (<0.1%), compact design and high edge brightness; EFL range 3.37 mm to 25 mm; suitable for industrial inspection, barcode scanning, monitoring, video conferencing and sports cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-MBL-0010 |
|---|---|
| F/NO | 2.8 |
| EFL | 6mm |
| FOV @ WD200 (H x V) | 243.2 x 182.4 |
| MOD | 0.1m |
Optics
| Distortion | <0.1% |
|---|---|
| Image size (dia.) | 1/1.8" |
| Field of view angle 1/1.8" | 60.6° x 46.6° |
| Field of view angle 1/3" | 42.4° x 32.4° |
| Distortion (TV) | <0.5% |
| Relative illumination | 60% |
| Focal length (mm) | 6 |
| Aperture | F2.8 |
Sensor and imaging
| Resolution | 5MP |
|---|---|
| Sensor format | 1/1.8" |
Mechanical
| Mount | M12xP0.5 |
|---|---|
| Shipping weight | 0.13 kg |
Other models in the 5MP S-mount low distortion board lens (LS-MBL-S02) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-MBL-0009 | 3.37 mm, 1/2" | $89.00 | Ships in 2-3 weeks | View |
| LS-MBL-0011 | 8 mm, 1/1.8" | $89.00 | Ships in 2-3 weeks | View |
| LS-MBL-0012 | 12 mm, 1/1.8" | $89.00 | Ships in 2-3 weeks | View |
| LS-MBL-0013 | 16 mm, 1/1.8" | $89.00 | Ships in 2-3 weeks | View |
| LS-MBL-0014 | 25 mm, 1/1.8" | $89.00 | Ships in 2-3 weeks | View |
