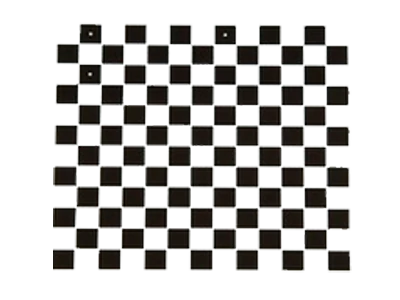

Representative photo of this series
Lens accessories
OpenCV calibration targets, 127 x 127 mm (LS-LXR-0356)
Model LS-LXR-0356
- Size127*127
- TypeCalibration targets
- SubstrateSoda Lime Glass
- Thickness2.3mm
$59.00
Ships in 2-3 weeks
0.21 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Fully follow method files from OpenCV.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LXR-0356 |
|---|---|
| Substrate | Soda Lime Glass |
| Overall accuracy | ±1 μm |
| Process | Direct Laser Writing |
| Effective Area(mm) | 104*96 |
| Grid(mm) | 8.0 |
| Grid Array | 12*13 |
| Software compatibility | OpenCV calibration (follows the OpenCV method files) |

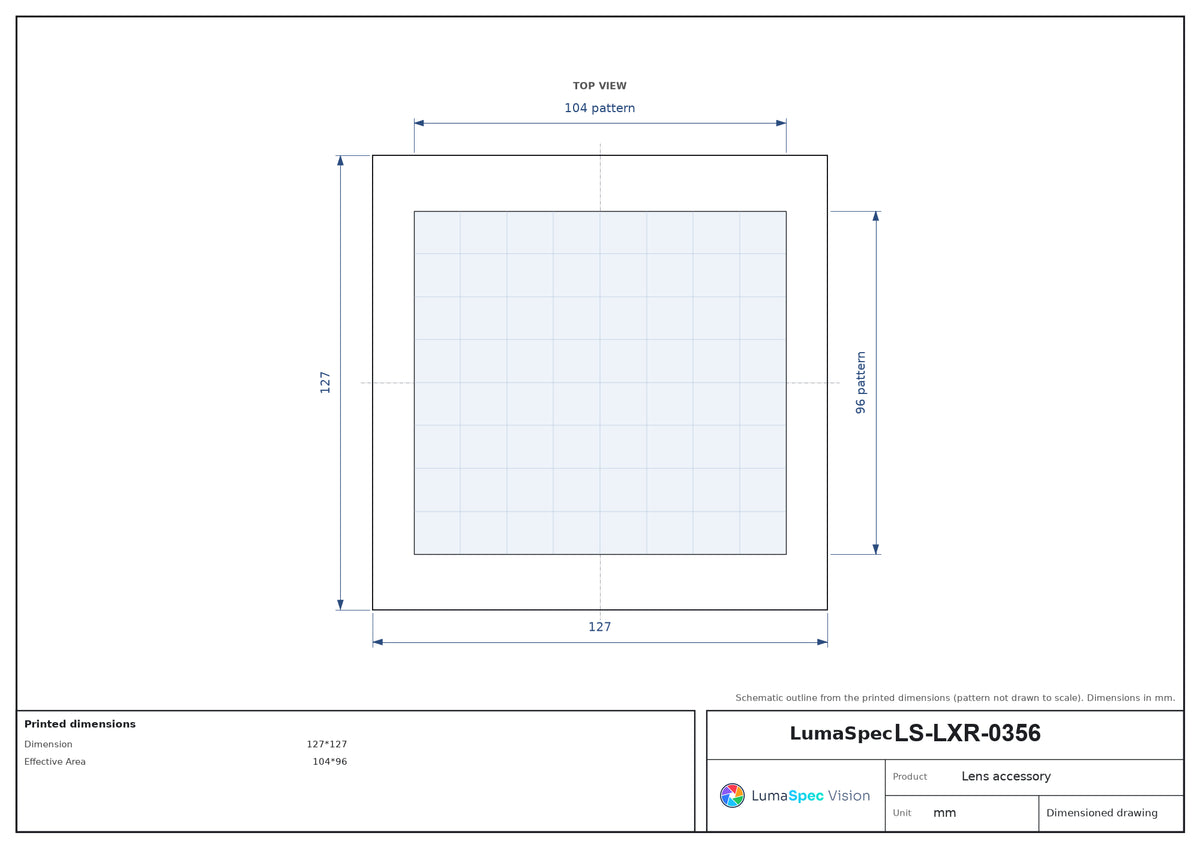

Mechanical
| Thickness | 2.3mm |
|---|---|
| Dimension | 127*127 |
| Shipping weight | 0.21 kg |
Other models in the OpenCV calibration targets (LS-LXR-S24) series
See all 5 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LXR-0352 | 38*38 · Calibration targets | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0353 | 50*50 · Calibration targets | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0354 | 76*76 · Calibration targets | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0355 | 100*100 · Calibration targets | $59.00 | Ships in 2-3 weeks | View |
