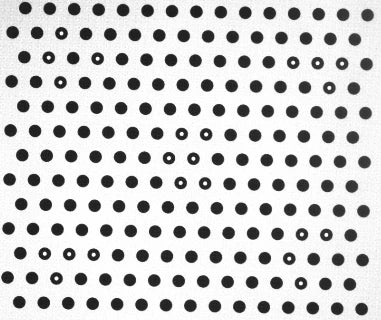

Representative photo of this series
Lens accessories
Halcon 12 dot calibration targets, 105 x 90 mm (LS-LXR-0348)
Model LS-LXR-0348
- Size105*90
- TypeCalibration targets
- SubstrateSoda Lime Glass
- Thickness2.3mm
$59.00
Ships in 2-3 weeks
0.21 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Perfectly matche Halcon documents(*.cpd),fully compatible with Halcon calibration algorithm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LXR-0348 |
|---|---|
| Substrate | Soda Lime Glass |
| Overall accuracy | ±1 μm |
| Process | Direct Laser Writing |
| Effective Area(mm) | 82.5*61.29 |
| Center Distance(mm) | 5.0 |
| Dot Dia.(mm) | 2.5 |
| Grid Array | 13*15 |
| Software compatibility | Halcon calibration algorithm (Halcon 12 description files *.cpd) |

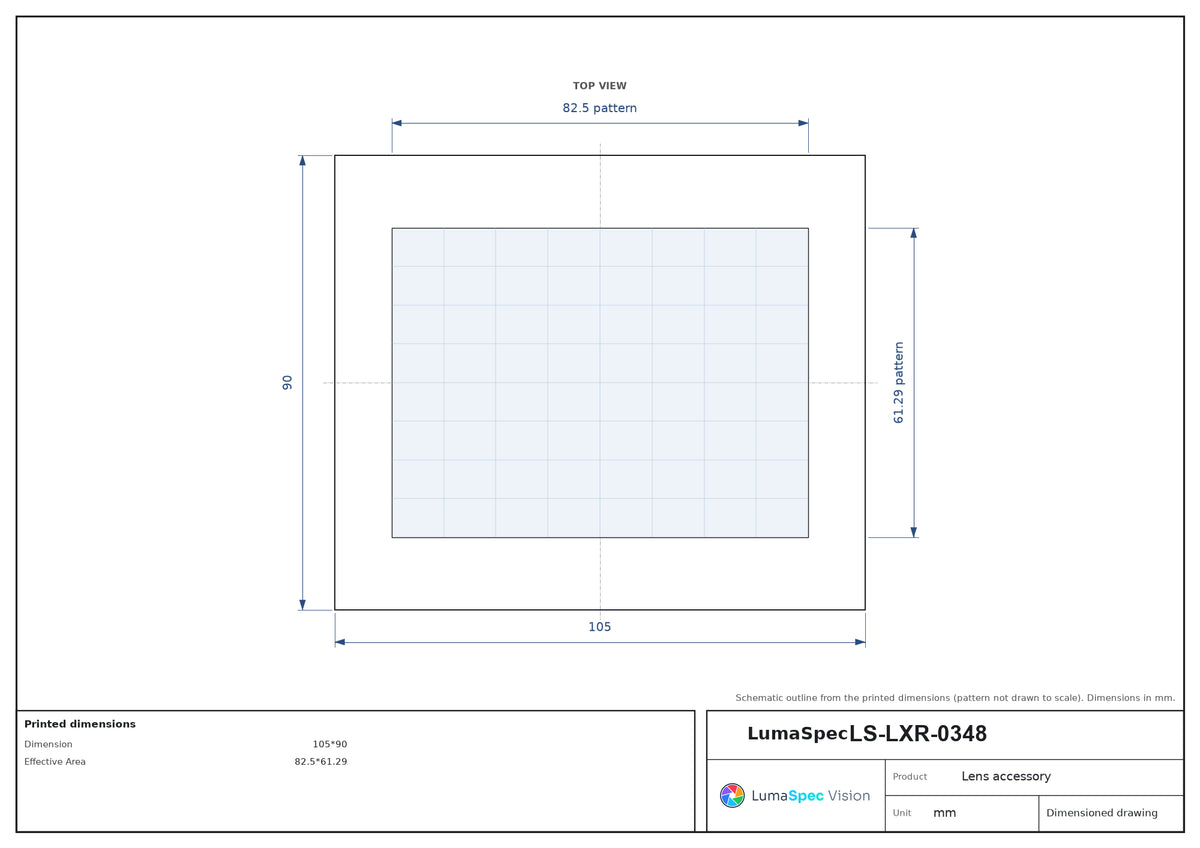

Mechanical
| Thickness | 2.3mm |
|---|---|
| Dimension (mm) | 105*90 |
| Shipping weight | 0.21 kg |
Other models in the Halcon 12 dot calibration targets (NRH ...-13X15) (LS-LXR-S23) series
See all 9 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LXR-0343 | 30*30 · Calibration targets | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0344 | 40*40 · Calibration targets | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0345 | 55*50 · Calibration targets | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0346 | 70*65 · Calibration targets | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0347 | 96*75 · Calibration targets | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0349 | 120*100 · Calibration targets | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0350 | 135*110 · Calibration targets | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0351 | 155*125 · Calibration targets | $59.00 | Ships in 2-3 weeks | View |
