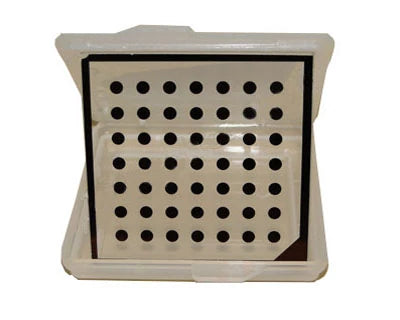

Representative photo of this series
Lens accessories
Halcon-compatible dot calibration targets, 127 x 127 mm (LS-LXR-0342)
Model LS-LXR-0342
- Size127*127
- TypeCalibration targets
- SubstrateSoda Lime Glass
- Thickness2.3mm
$59.00
Ships in 2-3 weeks
0.21 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Perfectly matche Halcon documents(*.descr),fully compatible with Halcon calibration algorithm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LXR-0342 |
|---|---|
| Substrate | Soda Lime Glass |
| Overall accuracy | ±1 μm |
| Process | Direct Laser Writing |
| Effective Area(mm) | 100*100 |
| Center Distance(mm) | 12.5 |
| Dot Dia.(mm) | 6.25 |
| Grid Array | 7*7 |
| Software compatibility | Halcon calibration algorithm (Halcon description files *.descr) |

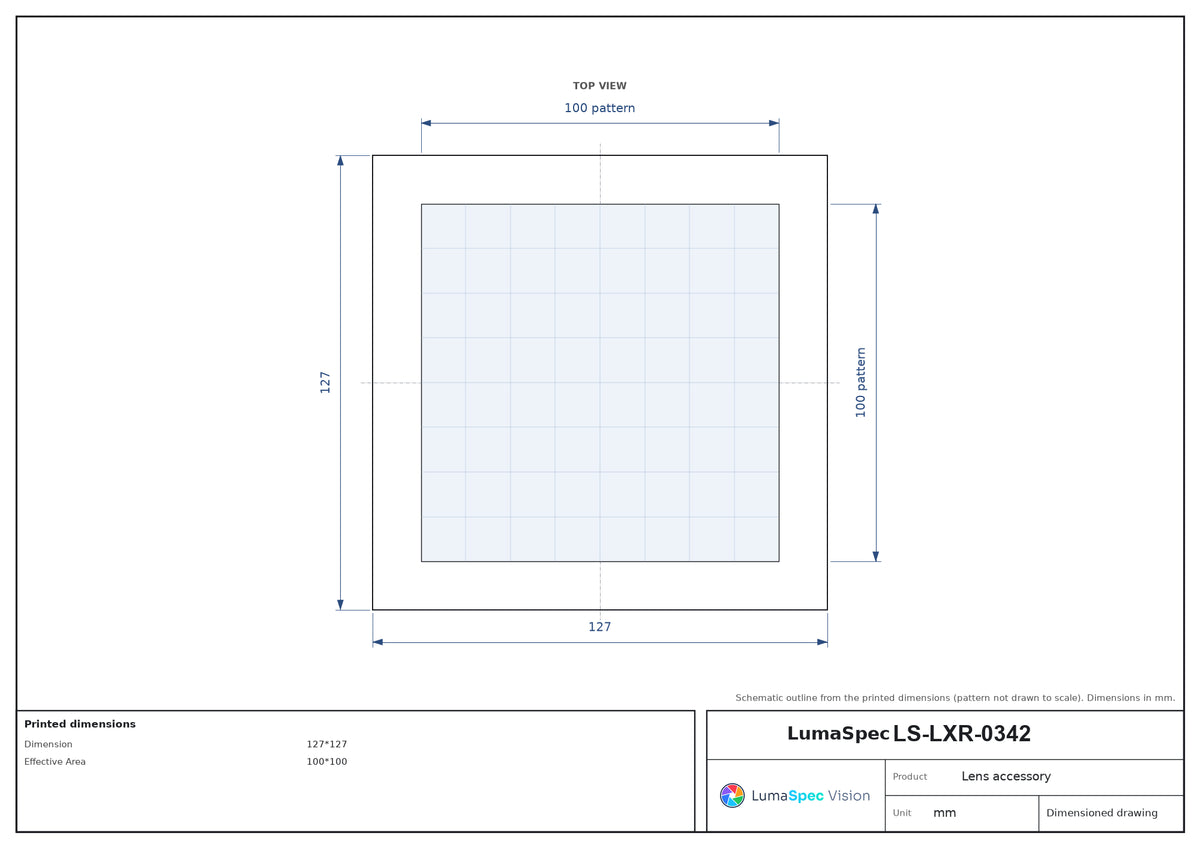

Mechanical
| Thickness | 2.3mm |
|---|---|
| Dimension (mm) | 127*127 |
| Shipping weight | 0.21 kg |
Other models in the Halcon-compatible dot calibration targets (LS-LXR-S22) series
See all 9 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LXR-0334 | 10*10 · Calibration targets | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0335 | 20*20 · Calibration targets | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0336 | 30*30 · Calibration targets | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0337 | 40*40 · Calibration targets | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0338 | 50*50 · Calibration targets | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0339 | 60*60 · Calibration targets | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0340 | 76*76 · Calibration targets | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0341 | 100*100 · Calibration targets | $59.00 | Ships in 2-3 weeks | View |
